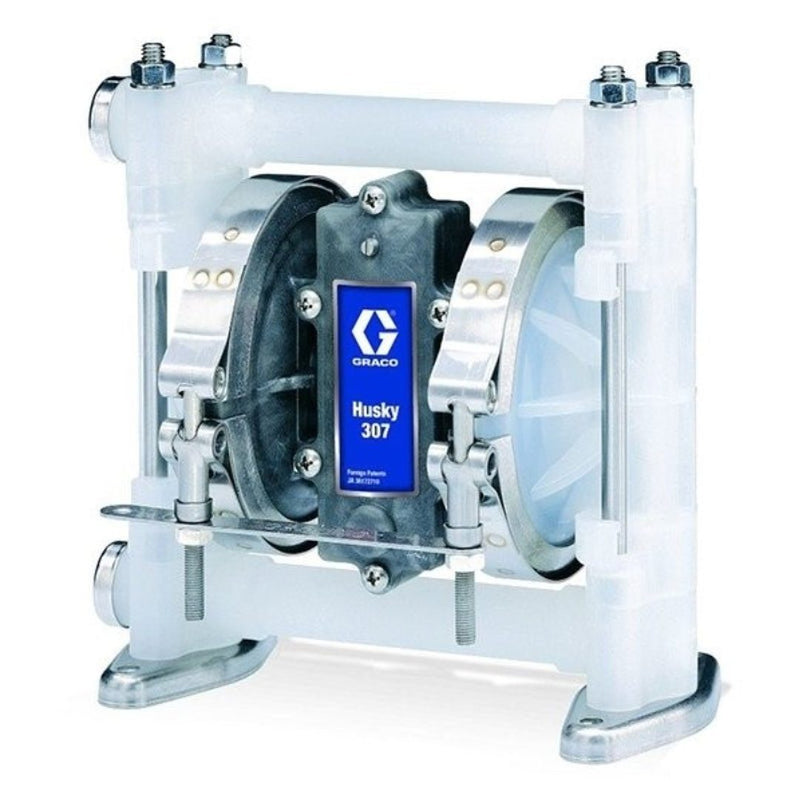

GRACO Husky 307 Polypropylene Air Operated Diaphragm Pumps
SKU: D32911GRACO Husky 307 Polypropylene Air Operated Diaphragm Pumps
Other payment options
GRACO Husky 307 Polypropylene Air Operated Diaphragm Pumps
Features
Graco Husky 307 Polypropylene Air Operated Diaphragm Pumps
Overview
The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil.
Specifications
| TYPE | Pneumatic Diaphragm Pump |
| AIR EXHAUST PORT SIZE (IN) | 3/8 |
| AIR EXHAUST PORT THREAD GENDER | Female |
| AIR EXHAUST PORT THREAD TYPE | NPT |
| AIR INLET SIZE (IN) | 1/4 |
| AIR INLET THREAD GENDER | Female |
| AIR INLET THREAD TYPE | NPT |
| APPLICATION | Industrial |
| BALL MATERIAL | Santoprene [D32966] PTFE [D32911] |
| CENTER SECTION MATERIAL | Polypropylene |
| COMPATIBLE MATERIAL | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink |
| DIAPHRAGM MATERIAL | Santoprene [D32966] PTFE/EPDM 2-Piece [D32911] |
| FLUID INLET SIZE (CM) | 0.9525 |
| FLUID INLET SIZE (IN) | 3/8 |
| FLUID INLET SIZE (MM) | 9.525 |
| FLUID INLET THREAD GENDER | Female |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (CM) | 0.9525 |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | NPT |
| FLUID SECTION MATERIAL | Polypropylene |
| MANIFOLD CONFIGURATION | End Port |
| MANIFOLD O-RING MATERIAL | PTFE |
| MATERIAL | Polypropylene |
| MAXIMUM AIR CONSUMPTION (SCFM) | 5.5 |
| MAXIMUM AIR PRESSURE (BAR) | 7 |
| MAXIMUM AIR PRESSURE (KPA) | 700 |
| MAXIMUM AIR PRESSURE (PSI) | 100 |
| MAXIMUM CYCLE RATE (CPM) | 330 |
| MAXIMUM FLOW RATE (GPM) | 6.5 |
| MAXIMUM FLOW RATE (L/MIN) | 24.6 |
| MAXIMUM FLUID PRESSURE (BAR) | 7 |
| MAXIMUM FLUID PRESSURE (KPA) | 700 |
| MAXIMUM FLUID PRESSURE (PSI) | 100 |
| MAXIMUM OPERATING TEMPERATURE (°C) | 66 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 150 |
| MAXIMUM SOLID SIZE (CM) | 0.1588 |
| MAXIMUM SOLID SIZE (IN) | 0.0625 |
| MAXIMUM SOLID SIZE (MM) | 1.5875 |
| MINIMUM OPERATING TEMPERATURE (°C) | 4 |
| MINIMUM OPERATING TEMPERATURE (°F) | 40 |
| MODEL | Husky |
| OVERALL HEIGHT (IN) | 8.13 |
| POWER SOURCE | Air |
| SEAT MATERIAL | Polypropylene |
| SERIES | 307 |
| STANDARDS MET | CE |
| WEIGHT (LB) | 4.75 |
| WETTED MATERIAL | Polypropylene, Santoprene [D32966] Polypropylene, PTFE/EPDM [D32911] |
| MAXIMUM FLUID PRESSURE (MPA) | 0.7 |
| MAXIMUM AIR PRESSURE (MPA) | 0.7 |
| CONNECTION TYPE | Threaded |
| DIAPHRAGM_COMPATIBLE_MATERIAL | Santoprene [D32966] PTFE [D32911] |
- Quick and easy assembly and disassembly design
- Easy to service air valve and ball checks
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Split manifold option to pump multiple fluids without mixing
- Every pump is tested prior to shipping
- 3/8 in (9.52 mm) end porting
- Delivery up to 7 gpm (26.5 lpm)
- Easy-to-serv
