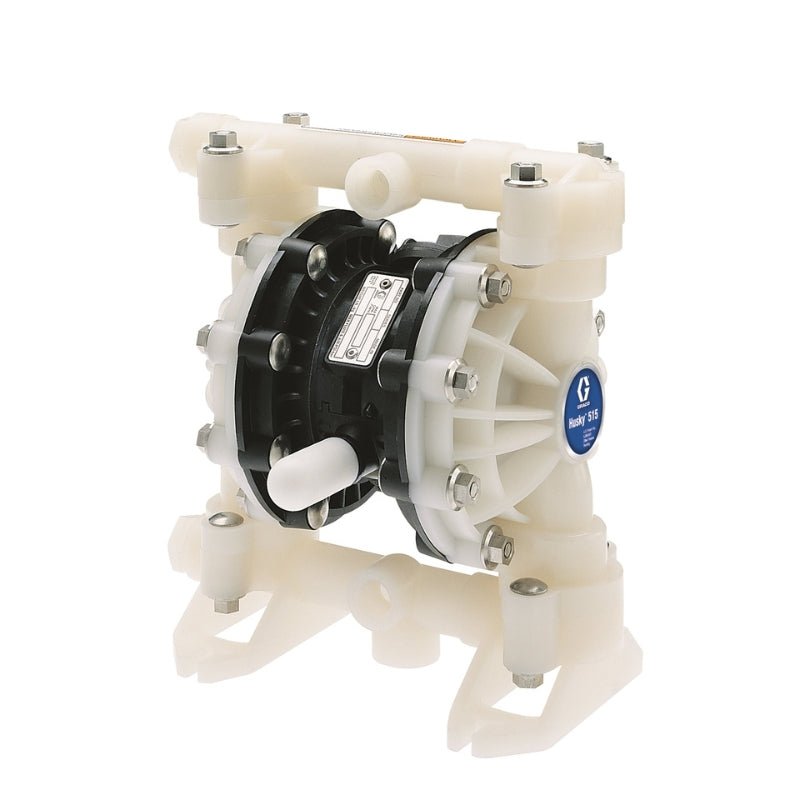

Graco Husky® 515 Acetal Air Operated Diaphragm Pumps
  • Graco Husky® 515 Acetal Air Operated Diaphragm Pumps
1 1

GRACO Husky 515 Acetal Air Operated Diaphragm Pumps

SKU: D51211

GRACO Husky 515 Acetal Air Operated Diaphragm Pumps

$2,332.00 AUD
$2,332.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Model

Other payment options

View full details
Graco Husky® 515 Acetal Air Operated Diaphragm Pumps

GRACO Husky 515 Acetal Air Operated Diaphragm Pumps

$2,332.00 AUD
$2,332.00 AUD
Save $0
Sold out

Details

Applicable for:

Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink

Model List

  • D51211: Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, AC Seats, PTFE Balls & PTFE Diaphragm
  • D5A211: Husky 515 AC 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, AC Seats, PTFE Balls & PTFE Diaphragm

Features

  • Center and end porting options.
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
  • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
  • Split manifold option to pump multiple fluids without mixing
  • Delivery up to 15 gpm (56.7 lpm)
  • Easy-to-service air valve and ball checks
  • Reliable air valve for years of dependable performance

    • Graco Husky 515 Acetal Air Operated Diaphragm Pumps

    Overview

    The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

    The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

        Shipping & Returns

        Our network of warehouses Australia-wide enables us to
        deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

        All returns must be pre-approved to ensure replacement and / or refund.

        Shipping & Returns

        Our network of warehouses Australia-wide enables us to
        deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

        All returns must be pre-approved to ensure replacement and / or refund.

        Warranty

        Read our complete warranty terms & conditions here.

        Warranty

        Read our complete warranty terms & conditions here.

        Secure Payment

        All our online payment methods are secured.

        Secure Payment

        All our online payment methods are secured.

        • Graco Air-Operated Diaphragm Pumps Manual 308981EN-ZBB
        • Graco Process Equipment Catalog 300435EN-T
        • GO Data Sheet Graco Husky 515 300570EN-K

        Specifications

        TYPE Pneumatic Diaphragm Pump
        AIR EXHAUST PORT SIZE (IN) 3/8
        AIR EXHAUST PORT THREAD GENDER Female
        AIR EXHAUST PORT THREAD TYPE NPT
        AIR INLET SIZE (IN) 1/4
        AIR INLET THREAD GENDER Female
        AIR INLET THREAD TYPE NPT
        APPLICATION Industrial
        BALL MATERIAL PTFE
        CENTER SECTION MATERIAL Polypropylene
        COMPATIBLE MATERIAL Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
        DIAPHRAGM MATERIAL PTFE/EPDM 2-Piece
        FLUID INLET SIZE (CM) 1.27
        FLUID INLET SIZE (IN) 1/2
        FLUID INLET SIZE (MM) 12.7
        FLUID INLET THREAD GENDER Female [D51211]
        FLUID INLET THREAD TYPE NPT [D51211]
        FLUID OUTLET SIZE (CM) 1.27
        FLUID OUTLET SIZE (IN) 1/2
        FLUID OUTLET SIZE (MM) 12.7
        FLUID OUTLET THREAD GENDER Female [D51211]
        FLUID OUTLET THREAD TYPE NPT [D51211]
        FLUID SECTION MATERIAL Acetal
        MANIFOLD CONFIGURATION Center Port
        MANIFOLD O-RING MATERIAL PTFE
        MATERIAL Acetal
        MAXIMUM AIR CONSUMPTION (SCFM) 28
        MAXIMUM AIR PRESSURE (BAR) 7
        MAXIMUM AIR PRESSURE (KPA) 700
        MAXIMUM AIR PRESSURE (PSI) 100
        MAXIMUM CYCLE RATE (CPM) 400
        MAXIMUM FLOW RATE (GPM) 15
        MAXIMUM FLOW RATE (L/MIN) 56.8
        MAXIMUM FLUID PRESSURE (BAR) 7
        MAXIMUM FLUID PRESSURE (KPA) 700
        MAXIMUM FLUID PRESSURE (PSI) 100
        MAXIMUM OPERATING TEMPERATURE (°C) 82
        MAXIMUM OPERATING TEMPERATURE (°F) 180
        MAXIMUM SOLID SIZE (CM) 0.2383
        MAXIMUM SOLID SIZE (IN) 0.09375
        MAXIMUM SOLID SIZE (MM) 2.383
        MINIMUM OPERATING TEMPERATURE (°C) 4
        MINIMUM OPERATING TEMPERATURE (°F) 40
        MODEL Husky
        OVERALL HEIGHT (IN) 10.63
        POWER SOURCE Air
        SEAT MATERIAL Acetal
        SERIES 515
        STANDARDS MET ATEX, CE
        WEIGHT (LB) 7.8
        WETTED MATERIAL Acetal, Polypropylene, PTFE/EPDM
        MAXIMUM FLUID PRESSURE (MPA) 0.7
        MAXIMUM AIR PRESSURE (MPA) 0.7
        CONNECTION TYPE Threaded
        DIAPHRAGM_COMPATIBLE_MATERIAL PTFE

          Features

        • Center and end porting options.
        • No mechanical seals to cause fluid leaks or failures
        • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
        • Easy-to-service air valve and ball checks
        • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
        • Split manifold option to pump multiple fluids without mixing
        • Delivery up to 15 gpm (56.7 lpm)
        • Easy-to-service air valve and ball checks
        • Reliable air valve for years of dependable performance
