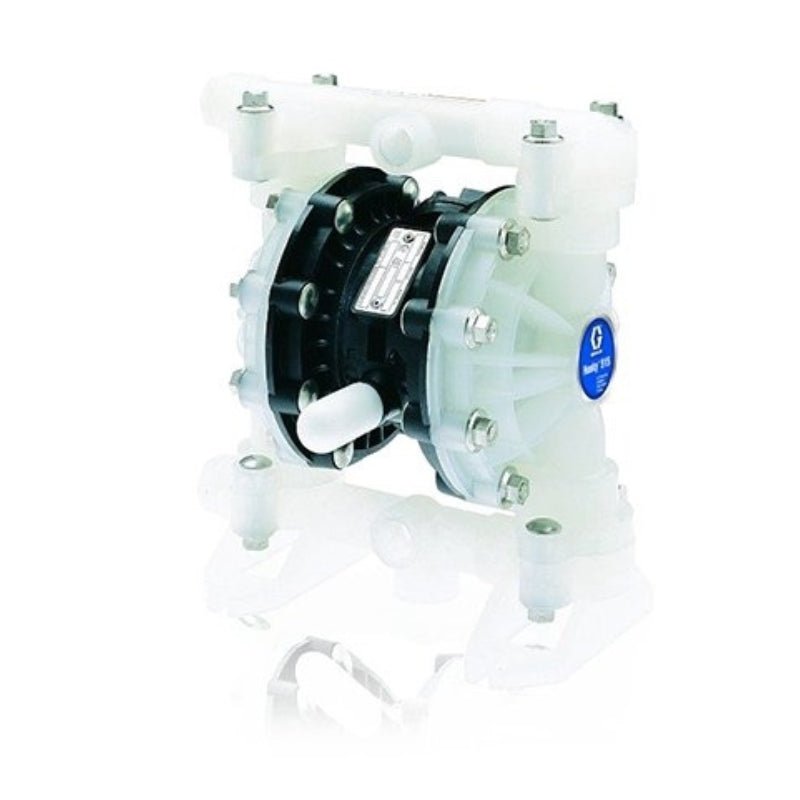

GRACO Husky 515 Polypropylene Air Operated Diaphragm Pumps
SKU: D52977GRACO Husky 515 Polypropylene Air Operated Diaphragm Pumps
Other payment options
GRACO Husky 515 Polypropylene Air Operated Diaphragm Pumps
Features
Graco Husky 515 Polypropylene Air Operated Diaphragm Pumps
Overview
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Specifications
| TYPE | Pneumatic Diaphragm Pump |
| AIR EXHAUST PORT SIZE (IN) | 3/8 |
| AIR EXHAUST PORT THREAD GENDER | Female |
| AIR EXHAUST PORT THREAD TYPE | NPT |
| AIR INLET SIZE (IN) | 1/4 |
| AIR INLET THREAD GENDER | Female |
| AIR INLET THREAD TYPE | NPT |
| APPLICATION | Industrial |
| BALL MATERIAL | Buna-N [D52977] PTFE [D52911,D5B911] |
| CENTER SECTION MATERIAL | Polypropylene |
| COMPATIBLE MATERIAL | Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink |
| DIAPHRAGM MATERIAL | Buna-N [D52977] PTFE/EPDM 2-Piece [D52911, D5B911] |
| FLUID INLET SIZE (CM) | 1.27 |
| FLUID INLET SIZE (IN) | 1/2 |
| FLUID INLET SIZE (MM) | 12.7 |
| FLUID INLET THREAD GENDER | Female |
| FLUID INLET THREAD TYPE | NPT [D52977, D52911, D5B911] |
| FLUID OUTLET SIZE (CM) | 1.27 |
| FLUID OUTLET SIZE (IN) | 1/2 |
| FLUID OUTLET SIZE (MM) | 12.7 |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | NPT [D52977, D52911, D5B911] |
| FLUID SECTION MATERIAL | Polypropylene |
| MANIFOLD CONFIGURATION | Center Port |
| MANIFOLD O-RING MATERIAL | PTFE |
| MATERIAL | Polypropylene |
| MAXIMUM AIR CONSUMPTION (SCFM) | 28 |
| MAXIMUM AIR PRESSURE (BAR) | 7 |
| MAXIMUM AIR PRESSURE (KPA) | 700 |
| MAXIMUM AIR PRESSURE (PSI) | 100 |
| MAXIMUM CYCLE RATE (CPM) | 400 |
| MAXIMUM FLOW RATE (GPM) | 15 |
| MAXIMUM FLOW RATE (L/MIN) | 56.8 |
| MAXIMUM FLUID PRESSURE (BAR) | 7 |
| MAXIMUM FLUID PRESSURE (KPA) | 700 |
| MAXIMUM FLUID PRESSURE (PSI) | 100 |
| MAXIMUM OPERATING TEMPERATURE (°C) | 66 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 150 |
| MAXIMUM SOLID SIZE (CM) | 0.2383 |
| MAXIMUM SOLID SIZE (IN) | 0.09375 |
| MAXIMUM SOLID SIZE (MM) | 2.383 |
| MINIMUM OPERATING TEMPERATURE (°C) | 4 |
| MINIMUM OPERATING TEMPERATURE (°F) | 40 |
| MODEL | Husky |
| OVERALL HEIGHT (IN) | 10.63 |
| POWER SOURCE | Air |
| SEAT MATERIAL | Polypropylene |
| SERIES | 515 |
| STANDARDS MET | ATEX, CE |
| WEIGHT (LB) | 6.5 |
| WETTED MATERIAL | Polypropylene, Buna [D52977] Polypropylene, PTFE/EPDM [D52911, D5B911] |
| MAXIMUM FLUID PRESSURE (MPA) | 0.7 |
| MAXIMUM AIR PRESSURE (MPA) | 0.7 |
| CONNECTION TYPE | Threaded |
| DIAPHRAGM_COMPATIBLE_MATERIAL | Buna [D52977] PTFE [D52911] |
- Center and end porting options.
- No mechanical seals to cause fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Split manifold option to pump multiple fluids without mixing
- Delivery up to 15 gpm (56.7 lpm)
- Easy-to-service air valve and ball checks
- Reliable air valve for years of dependable performance
