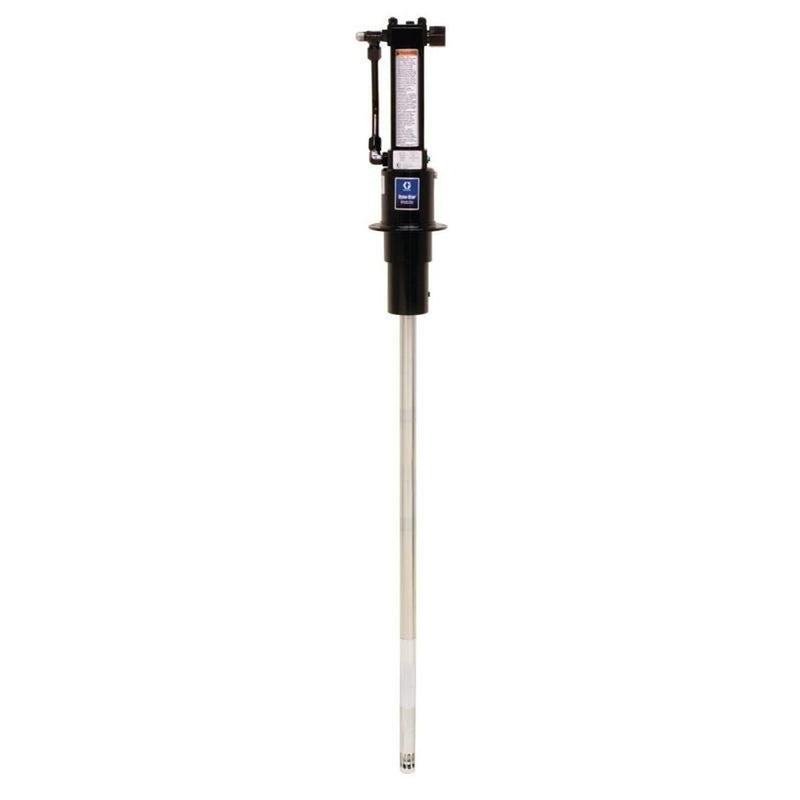

GRACO Hydraulic Dyna-Star 5:1 Grease Pumps

SKU 224912
Afterpay Zip PayPal LeaseGO
$9,918.18 ex GST · $10,910.00 inc GST
Prices shown ex GST.
Model
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Get a shipping estimate

The same live rates you'll see at checkout, for this item.

GRACO Hydraulic Dyna-Star 5:1 Grease Pumps · Qty 1

Estimate inc GST for this item plus anything already in your cart. Your final rate is confirmed at checkout.

Need it palletised or delivered to site? Chat with us.

Calculate your LeaseGO repayments

Spread the cost over 24, 36 or 48 months with simple monthly payments.

Business customers only. LeaseGO finance is available to businesses with an active ABN. It isn't available for personal or household purchases.

$
Pick a term that suits your cash flow
24 months
Per month-
Per week-
Per day-
36 months
Per month-
Per week-
Per day-
48 months
Per month-
Per week-
Per day-

Terms and conditions apply, subject to suitability assessment. Prices quoted are indicative only and payable monthly in advance over the chosen term. $99 Establishment Fee payable upon commencement ($79 under $1,500). Visit LeaseGo.com.au to learn more.

Scan or click here to apply now with LeaseGo

Apply in minutes with your mobile, licence and ABN, then give your approval number to the GO team.

Apply now
LeaseGo application QR code

Dispatch options

GO stock or Melbourne supplier stock

Australia-wide delivery

Delivery to your job site

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Graco’s 5:1 and 10:1, hydraulically-powered lubrication pumps designed for long life and reliable operation in demanding off-road mobile applications. Hydraulic Dyna-Star pumps provide reliable, quiet, ice-free performance at maximum pressure and low flow rates and are up to three times more energy efficient than comparable compressed-air systems.

    Features

    Features

  • Built-In Reliability: Self-lubricating vertical design for long life and reliable operation in high-vibration environments.
  • Quiet Hydraulic Motor: No need for add-on mufflers.
  • High-Efficiency Motor: Uses less hydraulic oil.
    • Specifications
  • Applications - Grease Dispensing
  • Maximum Input Pressure - 1,500 psi (102 bar)
  • Maximum Fluid Input Volume - 3 gpm (11.4 lpm)
  • Maximum Output Flow Rate - 4 lb/min (1.8 kg)
  • Maximum Fluid Output Pressure - 7,500 psi (517 bar)
    • TYPE Hydraulic Piston Pump
    APPLICATION On-Road Vehicles, Off-Road Equipment
    COMPATIBLE MATERIAL Grease
    FLUID INLET SIZE (CM) 1.27
    FLUID INLET SIZE (IN) 1/2
    FLUID INLET SIZE (MM) 12.7
    FLUID INLET THREAD TYPE NPT
    FLUID OUTLET SIZE (CM) 1.27
    FLUID OUTLET SIZE (IN) 1/2
    FLUID OUTLET SIZE (MM) 12.7
    FLUID OUTLET THREAD GENDER Female
    FLUID OUTLET THREAD TYPE NPT
    MAXIMUM CONTINUOUS CYCLE RATE (CPM) 60
    MAXIMUM FLUID OUTPUT PRESSURE (PSI) 7500
    MAXIMUM HYDRAULIC FLUID INLET PRESSURE (BAR) 103
    MAXIMUM HYDRAULIC FLUID INLET PRESSURE (KPA) 10300
    MAXIMUM HYDRAULIC FLUID INLET PRESSURE (PSI) 1500
    MAXIMUM INTERMITTENT CYCLE RATE (CPM) 60
    MAXIMUM WORKING PRESSURE (BAR) 103
    MAXIMUM WORKING PRESSURE (KPA) 10300
    MAXIMUM WORKING PRESSURE (PSI) 1500
    MODEL Dyna-Star
    POWER TYPE Hydraulic
    PUMP RATIO 5:1
    WETTED MATERIAL Steel, Copper, Polyurethane, Buna-N, Polyester Elastomer
    MAXIMUM WORKING PRESSURE (MPA) 10.3
    MAXIMUM_FLUID_OUTPUT_PRESSURE_BAR 517
