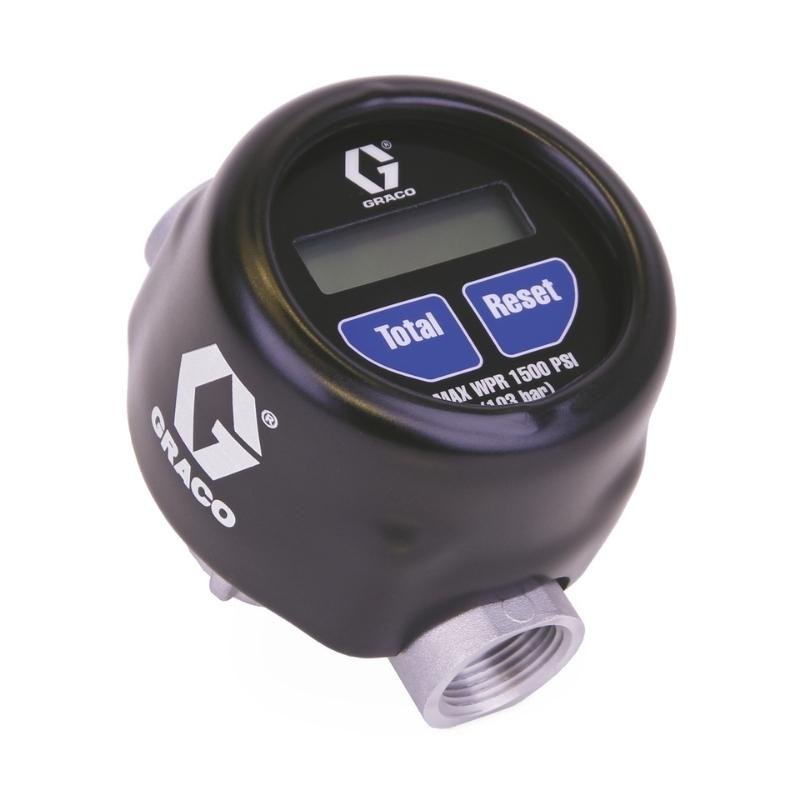

GRACO IM20 Med/High Pressure, Med/High Flow In-Line Meter
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Graco's IM20 in-line meter is designed to last and is capable of measuring a variety of fluids up to 20 gpm (75.7 lpm) flow rates. The IM20 is backed by our robust warranty and features upgraded electronics and an easy-to-read LCD screen with simple operator controls that measures in quarts, gallons, pints and liters.
Features
Features
Specifications
| FOR USE WITH | Petroleum-Based Oils, Synthetic-Based Oils, Antifreeze |
| INLET SIZE (CM) | 1.905 |
| INLET SIZE (IN) | 3/4 |
| INLET SIZE (MM) | 19.05 |
| INLET THREAD TYPE | NPT |
| MAXIMUM FLOW RATE (GPM) | 20 |
| MINIMUM FLOW RATE (GPM) | 0.25 |
| TYPE | Electronic In-Line Meter |
| MAXIMUM WORKING PRESSURE (MPA) | 10.3 |
| MAXIMUM WORKING PRESSURE (PSI) | 1500 |
| MAXIMUM WORKING PRESSURE (KPA) | 10300 |
| MAXIMUM WORKING PRESSURE (BAR) | 103 |
| OUTLET SIZE (CM) | 1.905 |
| OUTLET SIZE (IN) | 3/4 |
| OUTLET SIZE (MM) | 19.05 |
| OUTLET THREAD TYPE | NPT |
| WEIGHT (LB) | 1.25 |
| MODEL | IM20 |
