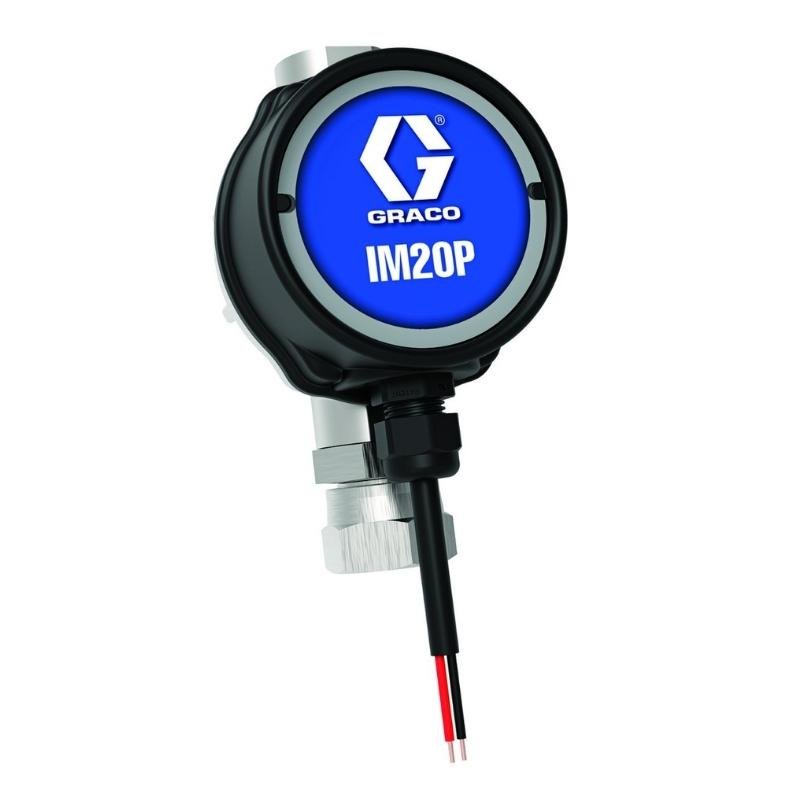

GRACO IM20P In-Line Meter

SKU: 133480

GRACO IM20P In-Line Meter

$857.00 AUD
$857.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
GRACO IM20P In - Line Meter - GO Industrial - 133480

GRACO IM20P In-Line Meter

$857.00 AUD
$857.00 AUD
Save $0
Sold out

Details

Typical applications include heavy-duty mobile service trucks, mining and in-plant.

Compatible Material

  • Petroleum-Based Oil
  • Synthetic-Based Oil
  • Antifreeze

Features

  • High Flow: Flow rates up to 20 gpm (75.7 lpm) for faster dispense.
  • Sealed Electronics: Meters are suitable for indoor or outdoor use. IP69K rated.
  • Rugged Aluminum Body: Remains corrosion free in harsh environments for years of trouble-free service.
  • Large Inlet and Outlet Porting: Minimal pressure drop to increase production.
  • Wired Convenience: Easily integrated with PLC (programmable logic controller).

    • Graco IM20P In-Line Meter

    Overview

    The IM20P wired electronic meter delivers precise in-line dispenses for in-plant, industrial and other applications. Its heavy-duty aluminum exterior and sealed electronics protect against corrosion inside or outside the plant. Designed and manufactured by a proven leader in meter technology, it’s capable of flow rates up to 20 gpm (75.7 lpm) for optimal performance.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • Graco IM20P In-Line Meter Manual - GO Industrial
      • Graco IM20P In-Line Meters Product Sheet - GO Industrial

      Specifications

      INLET SIZE (CM) 1.905
      INLET SIZE (IN) 3/4
      INLET SIZE (MM) 19.05
      INLET THREAD TYPE NPT
      MAXIMUM FLOW RATE (GPM) 20
      MAXIMUM FLOW RATE (L/MIN) 75.7
      MAXIMUM OPERATING TEMPERATURE (°C) 82
      MAXIMUM OPERATING TEMPERATURE (°F) 180
      MAXIMUM WORKING PRESSURE (BAR) 102
      MAXIMUM WORKING PRESSURE (PSI) 1500
      METER ACCURACY (%) ±0.5
      MINIMUM FLOW RATE (GPM) 0.25
      MINIMUM FLOW RATE (L/MIN) 0.95
      OUTLET SIZE (IN) 3/4
      OUTLET THREAD TYPE NPT
      WEIGHT (LB) 1.3
      TYPE Electronic In-Line Meter
      DISPENSE TYPE Preset
      MAXIMUM WORKING PRESSURE (MPA) 10

        Features

      • High Flow: Flow rates up to 20 gpm (75.7 lpm) for faster dispense.
      • Sealed Electronics: Meters are suitable for indoor or outdoor use. IP69K rated.
      • Rugged Aluminum Body: Remains corrosion free in harsh environments for years of trouble-free service.
      • Large Inlet and Outlet Porting: Minimal pressure drop to increase production.
      • Wired Convenience: Easily integrated with PLC (programmable logic controller).
