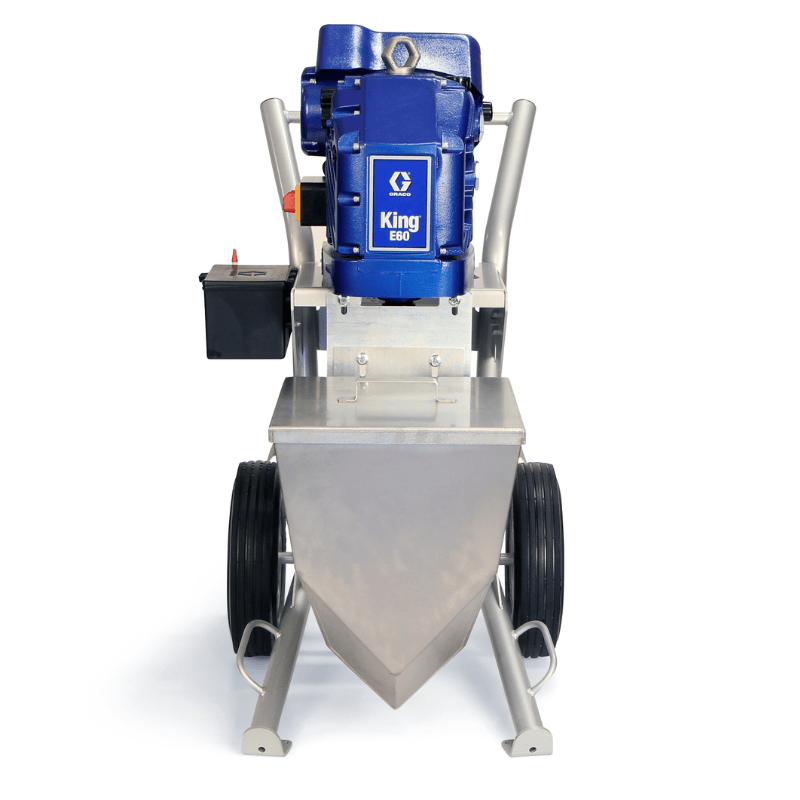

GRACO King E60 Hazardous Location Heavy Fluids Heavy Duty Cart Hopper No Filter Gun Hose Whip Tip

SKU: 273262

GRACO King E60 Hazardous Location Heavy Fluids Heavy Duty Cart Hopper No Filter Gun Hose Whip Tip

$26,510.00 AUD
$26,510.00 AUD $0.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.

Other payment options

View full details
Graco King E60 Hazardous Location Heavy Fluids Heavy Duty Cart Hopper No Filter Gun Hose Whip Tip 273262

GRACO King E60 Hazardous Location Heavy Fluids Heavy Duty Cart Hopper No Filter Gun Hose Whip Tip

$26,510.00 AUD
$26,510.00 AUD $0.00 AUD
Save $0
Sold out

Features

  • Electric - when wired correctly, electric power is safe, reliable and convenient for you and your customers. Free your operation from the reliability on an air compressor. The days of essential maintenance on large-scale compressors are over.
  • No icing - by eliminating the need for an air motor, icing problems are reduced. Icing may be more prevalent under conditions of a high level of humidity, resulting in a slowing of the motor and loss of pressure which can be detrimental to your production rates. The e-Xtreme sprayer is an electric solution that will keep you spraying at the pump’s maximum potential.
  • Reduced noise - no matter the application, noise exposure can dramatically affect your working conditions. The quiet electric motor improves working conditions significantly. When compared to an air motor, the King E-series is up to five times quieter.
  • Plug-in & Spray - the King E-series runs on multiple power options (120V or 240V). Able to handle Graco’s most popular airless spray tip sizes with a consistent pattern thanks to the low rate of pulsation. This smooth pattern is noticeable at the gun. Capable of spraying most high-solid coatings – it is sure to quickly become your go-to KING!
  • ATEX approved - get the job done safely: compared to other electric sprayers, the King E-series is approved for hazardous locations. ATEX, IECEx, and Class 1, Div. 1 approvals* mean this KING can be used in chemical plants, paint shops, refineries, off-shore, or any location where generating a spark is of concern.
  • Energy savings - with improved efficiency and an overall lower cost of ownership, the King E-series is the most cost-effective solution when compared to pneumatic airless sprayers. The King E-series saves up to 80% of energy costs when compared to an air operated sprayer*. By removing the need for an expensive, heavy air compressor, you can stay productive by using the most reliable power source available – electricity! *Study completed for a pump pressure of 241 bar (3500 psi) for 20 hours/week; spraying 1226 L (324 gal) of 73% volume solids epoxy with XHD519 tip.
  • Three-year limited warranty - every piece of equipment we manufacture comes with one of the industry’s strongest warranties. The King E-series offer a three-year warranty on the gear train, chassis, and electric motor. Electronics cover and all other King E-series driver parts are covered by the standard one-year warranty. See product manual for specifics on all warranty information.

    • Graco King E60 Hazardous Location Heavy Fluids Heavy Duty Cart Hopper No Filter Gun Hose Whip Tip

    Overview

    The Graco King E-series electric airless sprayer is for protective coatings and select models have been approved for hazardous locations. The King E-series operates on a more reliable, convenient and available electric power source, which removes job site reliance on compressed air. Furthermore, electric technology reduces pulsation and eliminates motor icing, making your jobs run smoother every single time.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    Specifications

    COMPATIBLE MATERIAL Protective Coating
    FLUID INLET SIZE (IN) 1
    FLUID INLET SIZE (MM) 25.4
    FLUID INLET THREAD TYPE NPT
    FLUID OUTLET SIZE (IN) 1/2, 3/8
    FLUID OUTLET SIZE (MM) 12.7;9.525
    FLUID OUTLET THREAD TYPE NPT
    FRAME CONFIGURATION Heavy-Duty Cart
    HOSE INLET DIAMETER (CM) 1.27
    HOSE INLET DIAMETER (IN) 1/2
    HOSE INLET DIAMETER (MM) 12.7
    INCLUDES Gun, Pistole, Hose, Whip, Tip
    INLET PAINT STRAINER 8 Mesh, 16 Mesh
    MAXIMUM FLOW RATE (GPM) 0.7
    MAXIMUM FLOW RATE (L/MIN) 2.6
    MAXIMUM HOSE LENGTH (FT) 210
    MAXIMUM HOSE LENGTH (M) 64
    MAXIMUM SOUND PRESSURE LEVEL (DB(A)) 77
    MAXIMUM TIP SIZE (IN) 0.021
    MAXIMUM WORKING PRESSURE (PSI) 6000
    MAXIMUM WORKING PRESSURE (KPA) 41500
    POWER SOURCE Electric
    MAXIMUM WORKING PRESSURE (MPA) 42
    PRESSURE CONTROL TYPE Electric Control Knob
    MODEL King
    MAXIMUM WORKING PRESSURE (BAR) 415
    WEIGHT (KG) 134
    WEIGHT (LB) 295
    SERIES E60
    PUMP TYPE Electric Piston Pump
    TYPE Airless Sprayer
    PHASE 1
    MOTOR TYPE Electric, Hazardous Locations
    WETTED MATERIAL Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum
    MAXIMUM FLUID WORKING PRESSURE (PSI) 6000
    OUTLET PAINT FILTER 60 Mesh
    PUMP SLEEVE MATERIAL Hard Chrome, Stainless Steel
    MINIMUM GENERATOR POWER (KW) 5
    FREQUENCY (HZ) 50/60
    PUMP ROD TYPE Chromex
    MINIMUM GENERATOR POWER (W) 5000
    NUMBER OF GUNS 1-2
    HOPPER CAPACITY (GAL) 10
    AMPERAGE (A) 120V/25A, 240V/15A
    GUN INCLUDED 1
    GUN MODEL XTR+
    PUMP RATIO 60:1 (6000 psi)
    PRODUCT TYPE Single Leg
    MATERIAL APPLICATION Protective Coatings
    CONTROL TYPE Pressure Control Knob
    LOWER CONFIGURATION No Filter
    MAXIMUM OPERATING TEMPERATURE (°C) 50
    MAXIMUM OPERATING TEMPERATURE (°F) 120
    FLUID OUTLET THREAD GENDER Male
    FLUID INLET THREAD GENDER Male
    LOWER TYPE 115cc Xtreme Duty Lower
    MINIMUM HOSE LENGTH (FT) 50
    MINIMUM HOSE INSIDE DIAMETER (IN) 0.375
    MINIMUM OPERATING TEMPERATURE (°C) -5
    MINIMUM OPERATING TEMPERATURE (°F) 23
    HOPPER CAPACITY (L) 30
    MAXIMUM CONTINUOUS CYCLE RATE (CPM) 44
    APPROVED FOR HAZARDOUS LOCATIONS Yes

      Features

    • Electric - when wired correctly, electric power is safe, reliable and convenient for you and your customers. Free your operation from the reliability on an air compressor. The days of essential maintenance on large-scale compressors are over.
    • No icing - by eliminating the need for an air motor, icing problems are reduced. Icing may be more prevalent under conditions of a high level of humidity, resulting in a slowing of the motor and loss of pressure which can be detrimental to your production rates. The e-Xtreme sprayer is an electric solution that will keep you spraying at the pump’s maximum potential.
    • Reduced noise - no matter the application, noise exposure can dramatically affect your working conditions. The quiet electric motor improves working conditions significantly. When compared to an air motor, the King E-series is up to five times quieter.
    • Plug-in & Spray - the King E-series runs on multiple power options (120V or 240V). Able to handle Graco’s most popular airless spray tip sizes with a consistent pattern thanks to the low rate of pulsation. This smooth pattern is noticeable at the gun. Capable of spraying most high-solid coatings – it is sure to quickly become your go-to KING!
    • ATEX approved - get the job done safely: compared to other electric sprayers, the King E-series is approved for hazardous locations. ATEX, IECEx, and Class 1, Div. 1 approvals* mean this KING can be used in chemical plants, paint shops, refineries, off-shore, or any location where generating a spark is of concern.
    • Energy savings - with improved efficiency and an overall lower cost of ownership, the King E-series is the most cost-effective solution when compared to pneumatic airless sprayers. The King E-series saves up to 80% of energy costs when compared to an air operated sprayer*. By removing the need for an expensive, heavy air compressor, you can stay productive by using the most reliable power source available – electricity! *Study completed for a pump pressure of 241 bar (3500 psi) for 20 hours/week; spraying 1226 L (324 gal) of 73% volume solids epoxy with XHD519 tip.
    • Three-year limited warranty - every piece of equipment we manufacture comes with one of the industry’s strongest warranties. The King E-series offer a three-year warranty on the gear train, chassis, and electric motor. Electronics cover and all other King E-series driver parts are covered by the standard one-year warranty. See product manual for specifics on all warranty information.
