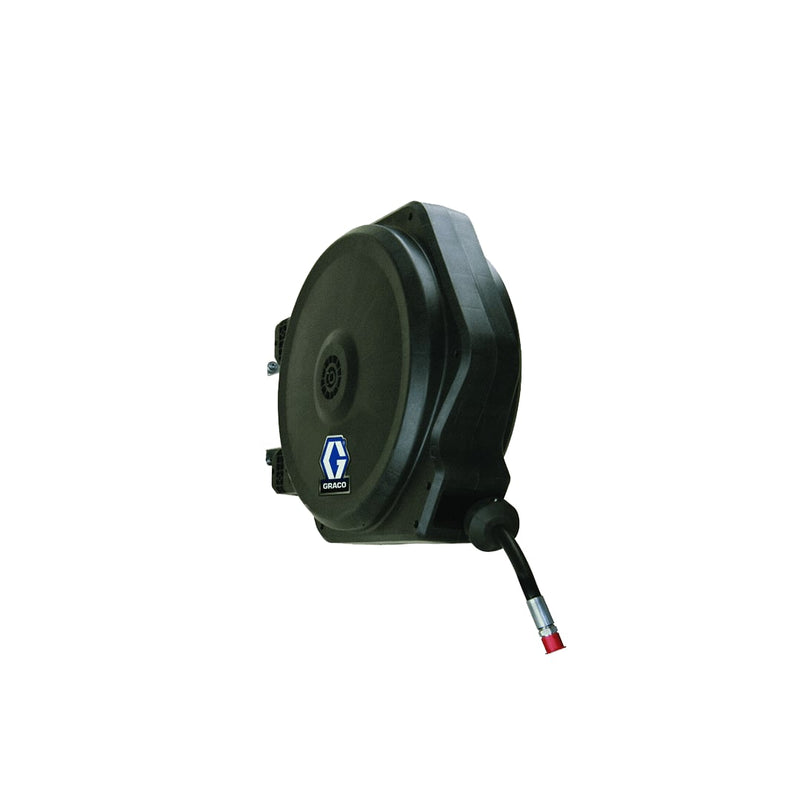

GRACO LD Hose Reel for Grease 6mm x 11m — front view

GRACO LD Hose Reel for Grease 6mm x 11m

SKU HEH13D
Afterpay Zip PayPal LeaseGO
$719.00
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

In Short

  • Economical enclosed hose reels get you up and running fast
  • Designed for light-duty applications with flexible mounting options for easy, quick Installation.
  • Reduce clutter and increase workplace safety with a Graco one-piece hose reel. Designed for light-duty applications in dealerships, service garages, collision repair and industrial manufacturing facilities.

Product Range

Application Model Pressure psi (bar) Hose ID x Length Inlet Outlet Operating Temp
Grease HEH13D 5000 (345) 10mm x 11m 3/8in 1/4in -17 to 60 deg C
Features

Features

  • Simple to install-mounts in minutes!
  • Enclosed reel with a compact enclosure extends hose life
  • Full flow swivel maximizes fluid output while minimizing pressure loss
  • Adjustable spring makes it easy to retract the hose
  • Quality entry-level reel mounts in minutes–gives you years of worry-free performance!
  • Ceiling/Wall swivel-mount is standard
  • Ceiling/Wall stationary and bench mount options are available
  • Pressure - 5,000 psi (345 bar)
  • Inlet - 1/2" BSP
  • Outlet - 1/4" BSP
    • Specifications
    DRY WEIGHT (LB) 29.1
    HOSE INSIDE DIAMETER (IN) 1/4
    HOSE INSIDE DIAMETER (MM) 6.35
    HOSE LENGTH (FT) 35
    HOSE LENGTH (M) 11
    INLET SIZE (IN) 3/8
    INLET SIZE (MM) 9.525
    INLET THREAD TYPE BSPT
    MAXIMUM TEMPERATURE (°C) 60
    MAXIMUM TEMPERATURE (°F) 140
    MAXIMUM WORKING PRESSURE (PSI) 5000
    MINIMUM TEMPERATURE (°C) -17.8
    MINIMUM TEMPERATURE (°F) 0
    OUTLET SIZE (IN) 1/4
    OUTLET SIZE (MM) 6.35
    WETTED PARTS Aluminum, Buna-N, PVC
    APPLICATION Grease
    TYPE Spring-Rewind Reel
    RECOMMENDED ENVIRONMENT Indoor
    FRAME TYPE Enclosed
    HOSE REEL TYPE Reel with Hose
    MODEL LD
