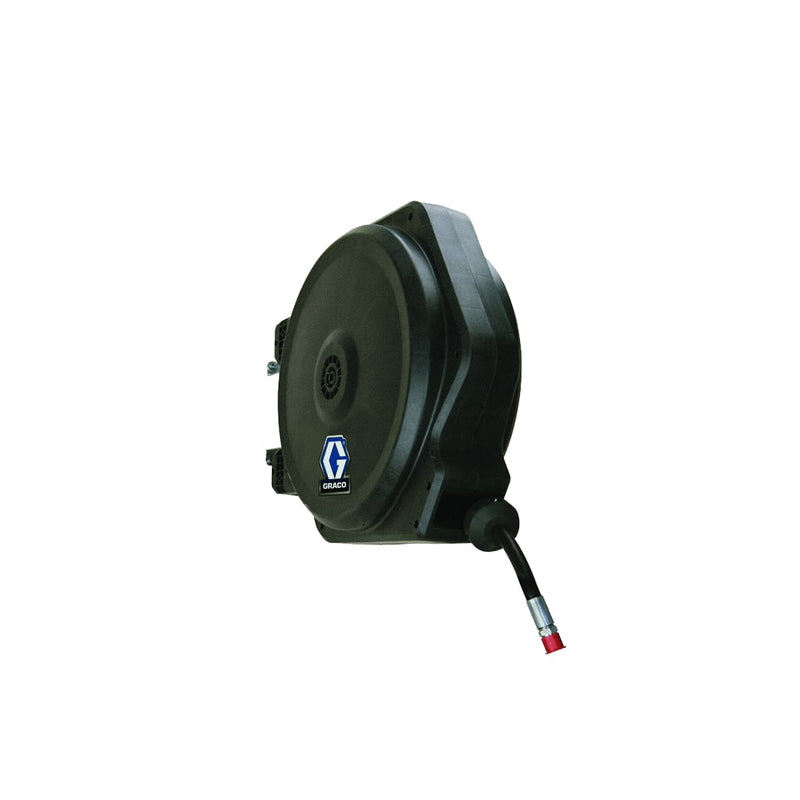

GRACO LD Hose Reel Range for Lubricants — front view

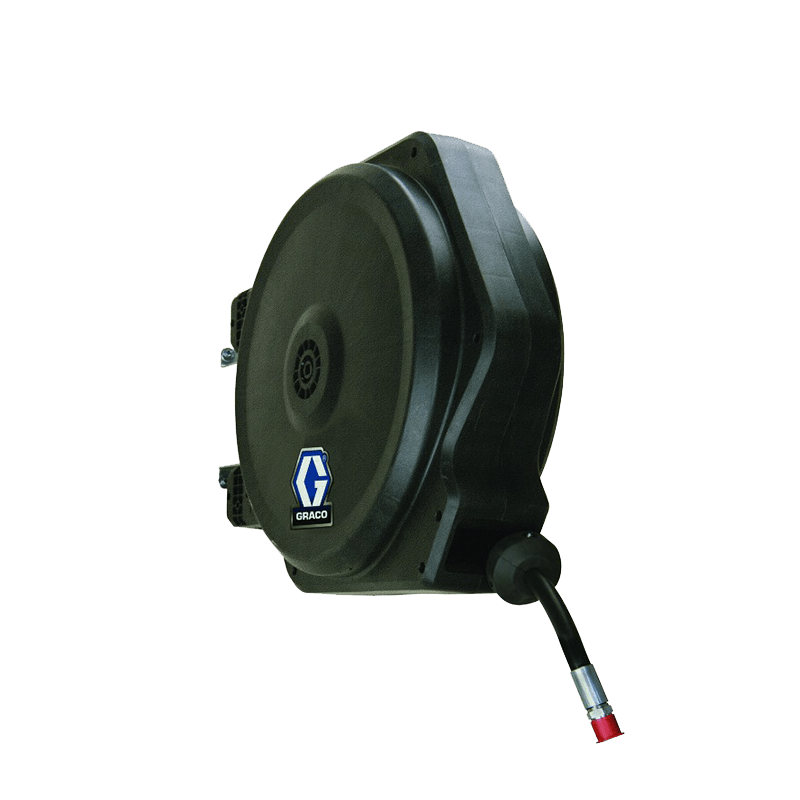

GRACO LD Hose Reel Range for Lubricants

SKU HEM33D
Afterpay Zip PayPal LeaseGO
$539.10
Tax included. Shipping calculated at checkout.
Size
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

In Short

  • Economical enclosed hose reels get you up and running fast
  • Designed for light-duty applications with flexible mounting options for easy, quick Installation.
  • Reduce clutter and increase workplace safety with a Graco one-piece hose reel. Designed for light-duty applications in dealerships, service garages, collision repair and industrial manufacturing facilities.

Product Range

Application Model Pressure psi (bar) Hose ID x Length Inlet Outlet Operating Temp
Lubricants HEM23D 1800 (124) 10mm x 11m 1/2in 3/8in -17 to 60 deg C

Lubricants 		HEM33D

1300 (124) 		12mm x 11m 1/2in 1/2in

-17 to 60 deg C



          Features

          Features

        • Simple to install-mounts in minutes!
        • Enclosed reel with a compact enclosure extends hose life
        • Full flow swivel maximizes fluid output while minimizing pressure loss
        • Adjustable spring makes it easy to retract the hose
        • Quality entry-level reel mounts in minutes–gives you years of worry-free performance!
        • Ceiling/Wall swivel-mount is standard
        • Ceiling/Wall stationary and bench mount options are available
        • Pressure - 5,000 psi (345 bar)
        • Inlet - 1/2" BSP
        • Outlet - 1/4" BSP
          • Specifications
          DRY WEIGHT (LB) 30.8
          HOSE INSIDE DIAMETER (IN) 1/2
          HOSE INSIDE DIAMETER (MM) 12.7
          HOSE LENGTH (FT) 35
          HOSE LENGTH (M) 11
          INLET SIZE (IN) 1/2
          INLET SIZE (MM) 12.7
          INLET THREAD TYPE BSPT
          MAXIMUM TEMPERATURE (°C) 60
          MAXIMUM TEMPERATURE (°F) 140
          MAXIMUM WORKING PRESSURE (PSI) 1800
          MINIMUM TEMPERATURE (°C) -17.8
          MINIMUM TEMPERATURE (°F) 0
          OUTLET SIZE (IN) 1/2
          OUTLET SIZE (MM) 12.7
          WETTED PARTS Carbon Steel, Buna-N, PTFE
          APPLICATION Oil
          TYPE Spring-Rewind Reel
          RECOMMENDED ENVIRONMENT Indoor
          FRAME TYPE Enclosed
          HOSE REEL TYPE Reel with Hose
          MODEL LD
