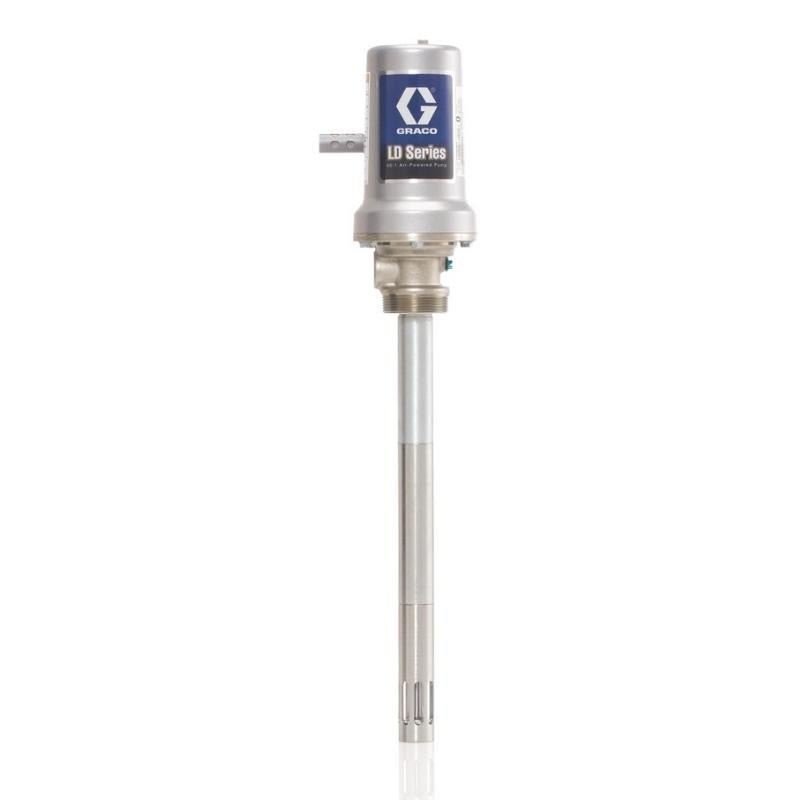

GRACO LD Series 50:1 Grease Pump for Pail 16kg

Name: GRACO LD Series 50:1 Grease Pump for Pail 16kg
Brand: Graco Australia Pty Ltd
SKU: 24G600
Price: 1022.0 AUD
Availability: InStock

SKU: 24G600

GRACO LD Series 50:1 Grease Pump for Pail 16kg

$1,022.00 AUD

Save $0

Sold out

Inclusive of GST. Shipping calculated at checkout.

In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Capacity

24G600 For 35 lb (16 kg) pail

24G606 For 400 lb (180 kg) drum

Product variants

Quantity

Other payment options

View full details

GRACO LD Series 50:1 Grease Pump for Pail 16kg

From $1,022.00 AUD

Save $0

Sold out

Product variants

Details

Maximum Fluid Working Pressure - 7,500 psi (517 bar / 51.7 MPa)
Approximate Free Flow Rate @ 100 psi - 4.5 lb/min (2 kg/min)
Output per Cycle - 0.34 oz (9.7 g)
Approximate Air Use and Flow @ 100 psi (80 cpm) - 16 @ 1.7 lb/min (0.45 @ 0.77 kg/min)
Air Operation Range -20 psi to 150 psi (1.37 bar to 10.3 bar)

Compatible Material

Grease

Features

Three Inch Air Motor: Provides more power to create better flow.

Innovative Air Valve: Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.

Engineered for Durability: Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.

Modular Air Valve: Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.

Pilot Valve: Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.

Adjustable Bung Adapter Included: Built-in slide adjustment with easy-set hand screws can fit into more applications.

Built-In Thermal Relief and Inlet Strainer: Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.

Graco LD Series 50:1 Grease Pump for Pail 16kg

Overview

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

Graco LD Series 50-1 400 lb Grease Pump Packages

Graco LD Series 50-1 Grease Pumps Product Sheet - GO Industrial

Graco LD Series Oil and Grease Pumps Manual - GO Industrial

GO Catalogue Graco Vehicle Service Equipment Part 1 303245EN-AM

GO Catalogue Graco Vehicle Service Equipment Part 2 303245EN-AM

GO Catalogue Graco Vehicle Service Equipment Part 3 303245EN-AM

Specifications

TYPE	Pneumatic Piston Pump
AIR INLET SIZE (CM)	0.635
AIR INLET SIZE (IN)	1/4
AIR INLET SIZE (MM)	6.35
APPLICATION	Grease
COMPATIBLE MATERIAL	Grease
FLUID OUTLET SIZE (CM)	0.635
FLUID OUTLET SIZE (IN)	1/4
FLUID OUTLET SIZE (MM)	6.35
MAXIMUM AIR INLET PRESSURE (BAR)	10.34
MAXIMUM AIR INLET PRESSURE (KPA)	1034
MAXIMUM AIR INLET PRESSURE (PSI)	150
MAXIMUM WORKING PRESSURE (BAR)	517
MAXIMUM WORKING PRESSURE (KPA)	51700
MAXIMUM WORKING PRESSURE (PSI)	7500
MODEL	LD
POWER TYPE	Pneumatic
PUMP RATIO	50:1
WEIGHT (LB)	11.2
WETTED MATERIAL	Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal
WEIGHT (KG)	0.5085
MAXIMUM WORKING PRESSURE (MPA)	51.7

Features

Three Inch Air Motor: Provides more power to create better flow.
Innovative Air Valve: Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
Engineered for Durability: Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
Modular Air Valve: Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
Pilot Valve: Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
Adjustable Bung Adapter Included: Built-in slide adjustment with easy-set hand screws can fit into more applications.
Built-In Thermal Relief and Inlet Strainer: Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
