GRACO LD Series 50:1 Stationary Grease Pump Package 180kg

SKU: 24J042

GRACO LD Series 50:1 Stationary Grease Pump Package 180kg

$1,611.00 AUD
$1,611.00 AUD $2,149.00 AUD
Save $538
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

View full details
GRACO LD Series 50:1 Stationary Grease Pump Package 180kg - GO Industrial - 24J042

GRACO LD Series 50:1 Stationary Grease Pump Package 180kg

$1,611.00 AUD
$1,611.00 AUD $2,149.00 AUD
Save $538
Sold out

Details

Compatible Material

  • Grease

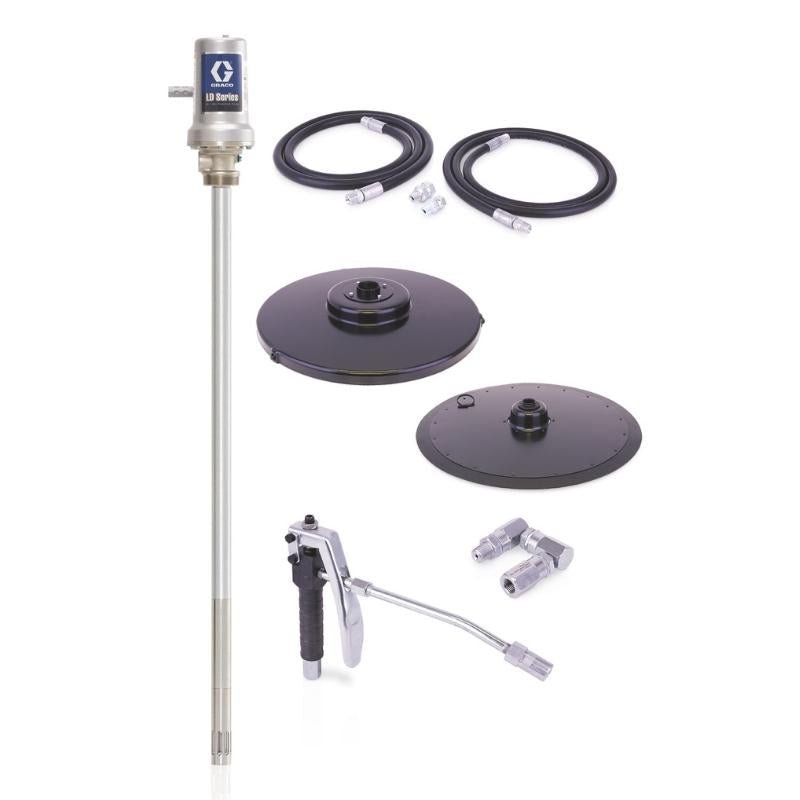

Main Items Included

  • LD Series 50:1 Pump for 400 lb (180 kg). Pail - NPT
  • LD Pro-Shot Valve, Grease,1/4 NPT
  • LD Z-Swivel - NPT
  • LDX™ Series, Grease, 3/8 in (10 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT

Features

  • Three Inch Air Motor: Provides more power to create better flow.
  • Engineered for Durability: Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
  • Modular Air Valve: Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
  • Pilot Valves: Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.

    • Graco LD Series 50:1 Stationary Grease Pump Package 180kg

    Overview

    Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • Graco LD Oil or Grease System Packages Manual - GO Industrial
      • Graco LD Series 50-1 400 lb Grease Pump Packages
      • GO Data Sheet Graco LD Series 50-1 Stationary Grease Pump Package 303245EN-AM
      • GO Catalogue Graco Vehicle Service Equipment Part 1 303245EN-AM
      • GO Catalogue Graco Vehicle Service Equipment Part 2 303245EN-AM
      • GO Catalogue Graco Vehicle Service Equipment Part 3 303245EN-AM

      Specifications

      APPLICATION Grease
      COMPATIBLE MATERIAL Grease
      FLUID OUTLET SIZE (CM) 0.635
      FLUID OUTLET SIZE (IN) 1/4
      FLUID OUTLET SIZE (MM) 6.35
      MAXIMUM WORKING PRESSURE (BAR) 345
      MAXIMUM WORKING PRESSURE (KPA) 34500
      MAXIMUM WORKING PRESSURE (PSI) 5000
      PUMP RATIO 50:1
      AIR INLET SIZE (IN) 0.25
      WETTED MATERIAL Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal
      TYPE Piston Pump Package
      POWER TYPE Pneumatic
      MAXIMUM WORKING PRESSURE (MPA) 35
      MODEL LD

        Features

      • Three Inch Air Motor: Provides more power to create better flow.
      • Engineered for Durability: Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
      • Modular Air Valve: Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
      • Pilot Valves: Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
