GRACO LDX Series Hose Reels

SKU: HEL010

GRACO LDX Series Hose Reels

$625.00 AUD
$625.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Model

Other payment options

View full details
Graco LDX Hose Reels - GO Industrial

GRACO LDX Series Hose Reels

From $625.00 AUD
From $625.00 AUD
Save $0
Sold out

Details

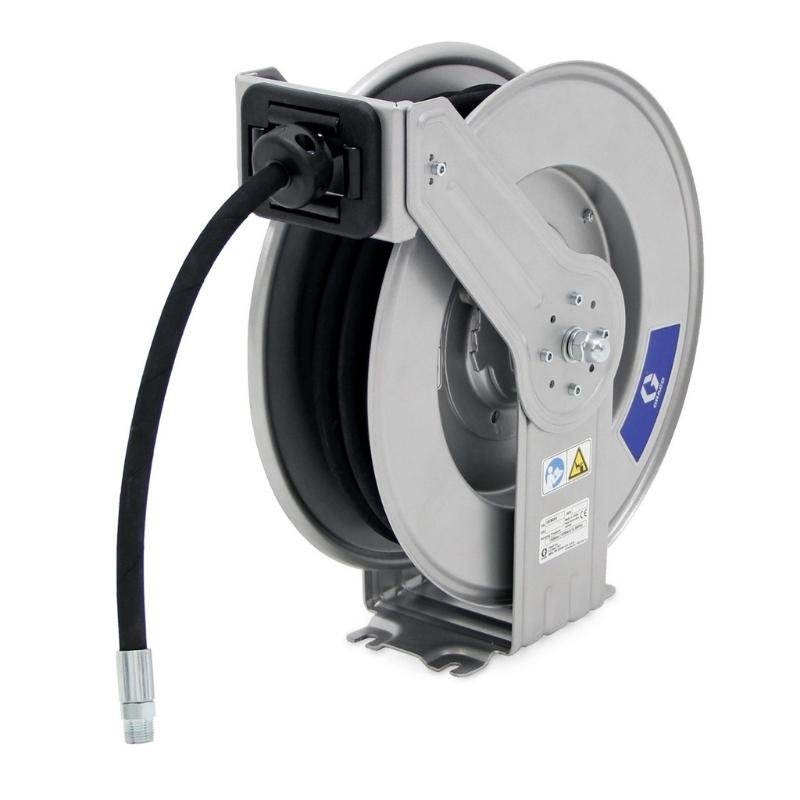

Graco’s industrial-grade LDX hose reel offers incredible value for cost-conscious workshops. Its all-metal frame and specially crafted, long-lasting components provide consistent release and retraction.

Designed for smaller garages, independent repair facilities and industrial manufacturing environments.

Typical Applications:

  • Industrial manufacturing facilities
  • Small maintenance shops
  • Tire maintenance shops
  • Small fast lubes
  • Independent repair facilities

Compatible For:

  • Oil
  • Gear Lube
  • ATF
  • Grease
  • Air
  • Water
  • Antifreeze
  • Washer Fluid
  • Diesel Exhaust Fluid (DEF)

Features

  • Dual Pedestal Frame - Ribbed metal for increased stability and robustness.
  • External Swivel Housing - Quickly access swivel seal for faster repairs.
  • Ball Bearing Swivel - Swivel designed with internal ball bearings reduces friction and ensures smooth operation.
  • Adjustable Arm - Easily change to one of six arm positions to fit your application.
  • Large Hose Capacity with Small Profile - Compact design accommodates up to a 50 foot (15 meter) hose to meet a wide variety of application requirements.

    • Graco LDX Series Hose Reels

    Overview

    Graco’s industrial-grade LDX hose reel offers incredible value for cost-conscious workshops. Its all-metal frame and specially crafted, long-lasting components provide consistent release and retraction.

          Shipping & Returns

          Our network of warehouses Australia-wide enables us to
          deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

          All returns must be pre-approved to ensure replacement and / or refund.

          Shipping & Returns

          Our network of warehouses Australia-wide enables us to
          deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

          All returns must be pre-approved to ensure replacement and / or refund.

          Warranty

          Read our complete warranty terms & conditions here.

          Warranty

          Read our complete warranty terms & conditions here.

          Secure Payment

          All our online payment methods are secured.

          Secure Payment

          All our online payment methods are secured.

          • Graco LDX Series Hose Reels Data Sheet - GO Industrial
          • 3A8216EN-C - Graco LDX Series Manual - GO Industrial

          Specifications

          COLOR Grey
          DRY WEIGHT (LB) 48
          HOSE INSIDE DIAMETER (IN) 1/2
          HOSE INSIDE DIAMETER (MM) 12.7
          HOSE LENGTH (FT) 50
          HOSE LENGTH (M) 15
          INLET SIZE (IN) 1/2
          INLET SIZE (MM) 12.7
          INLET THREAD TYPE NPT
          MAXIMUM TEMPERATURE (°C) 100
          MAXIMUM TEMPERATURE (°F) 212
          MAXIMUM WORKING PRESSURE (PSI) 1500
          MINIMUM TEMPERATURE (°C) -40
          MINIMUM TEMPERATURE (°F) -40
          MOUNT LOCATION Truck Mount, Bench Mount
          OUTLET SIZE (IN) 1/2
          OUTLET SIZE (MM) 12.7
          OUTLET THREAD TYPE NPT
          OVERALL HEIGHT (IN) 19
          OVERALL HEIGHT (MM) 483
          OVERALL LENGTH (IN) 17.5
          OVERALL LENGTH (MM) 445
          OVERALL WIDTH (IN) 9.4
          OVERALL WIDTH (MM) 239
          WETTED PARTS Zinc-Plated Steel, Brass, Polyurethane, Nitrile Rubber
          APPLICATION Oil
          TYPE Spring-Rewind Reel
          RECOMMENDED ENVIRONMENT Indoor
          FRAME TYPE Dual Pedestal
          REEL THREAD TYPE NPT
          INLET THREAD GENDER Male
          OUTLET THREAD GENDER Male
          RECOMMENDED FLUID TYPE Oil, Air, Water, Antifreeze, WWS, DEF, Grease
          HOSE REEL TYPE Reel with Hose
          MODEL LDX

            Features

          • Dual Pedestal Frame - Ribbed metal for increased stability and robustness.
          • External Swivel Housing - Quickly access swivel seal for faster repairs.
          • Ball Bearing Swivel - Swivel designed with internal ball bearings reduces friction and ensures smooth operation.
          • Adjustable Arm - Easily change to one of six arm positions to fit your application.
          • Large Hose Capacity with Small Profile - Compact design accommodates up to a 50 foot (15 meter) hose to meet a wide variety of application requirements.
