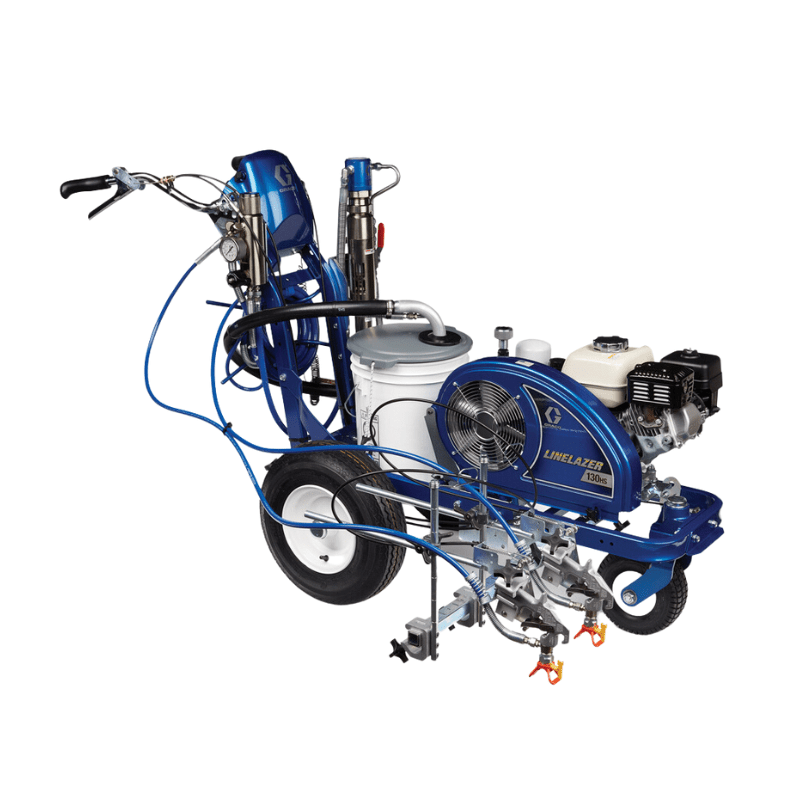

GRACO LineLazer 130HS Standard Series Airless Line Striper 2 Manual Guns
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The LineLazer 130HS is the preferred hydraulic airless striping unit that consistently delivers everyday striping performance with proven power, day in and day out.
Reliable and easy-to-start, it comes with industry-best Endurance Chromex Pump, a high-efficiency hydraulic motor, and high-capacity cooling system, giving only uninterrupted performance plus reduced downtimes.
Features
Features
EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
Quik Select Gun Selector
- Simple Gun Control
- Independently control of two guns with one lever — solid/skip
Dual Comfort Handlebar System
- Easy Handlebar Adjustment
Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
High-Efficiency Hydraulic Motor
- Uninterrupted Performance
- No-Stall design
High-Capacity Cooling System
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
- No special hydraulic fluid needed
Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
Storage Compartment
- New compartment for tips, guards and miscellaneous items
Specifications
| COMPATIBLE SURFACES | Pavement, Turf |
|---|---|
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX120 |
| FUEL TANK CAPACITY (GAL) | 0.66 |
| FUEL TANK CAPACITY (L) | 2.5 |
| GUN ACTIVATION | 2 Manual |
| INCLUDES | Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL 4 oz |
| MAXIMUM FLOW RATE (GPM) | 1.3 |
| MAXIMUM FLOW RATE (L/MIN) | 4.9 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 96 |
| MAXIMUM TIP SIZE (CM) | 0.0737 |
| MAXIMUM TIP SIZE (IN) | 0.029 |
| MAXIMUM TIP SIZE (MM) | 0.7366 |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MODEL | LineLazer |
| NUMBER OF COLORS | One Color |
| NUMBER OF GUNS | 2 |
| NUMBER OF HOPPERS | 1 |
| NUMBER OF PUMPS | 1 |
| OVERALL HEIGHT (CM) | 113.03 |
| OVERALL HEIGHT (IN) | 44.5 |
| OVERALL HEIGHT (MM) | 1130.3000 |
| OVERALL LENGTH (CM) | 173.36 |
| OVERALL LENGTH (IN) | 68.25 |
| OVERALL LENGTH (MM) | 1733.55 |
| OVERALL WIDTH (CM) | 87 |
| OVERALL WIDTH (IN) | 34.25 |
| OVERALL WIDTH (MM) | 869.9500 |
| POWER RATING (HP) | 4 |
| POWER RATING (KW) | 2.98 |
| PUMP TYPE | Endurance |
| SERIES | 130HS |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 119 |
| WEIGHT (LB) | 263 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas Hydraulic |
| RECOMMENDED ANNUAL USAGE | Up to 500 gallons per week |
| PRODUCT SERIES | Standard |
| ATTACHMENTS | None |
Warranty
Manuals
- GO Manual Operation Graco LineLazer 130HS Airless Line Stripers 3A3392EN-C
- GO Manual Parts Graco LineLazer V 130HS Airless Line Stripers 3A3391EN-C
- GO Manual Instructions Graco Silver Plus Silver Plus HP and Flex Plus Airless Spray Guns 311254EN-P
- GO Manual Instruction Graco LineLazer Displacement Pump 311845EN-K
