We’re here to help
Equipment specialists ready to go above and beyond. Expert advice, 1:1 support and care that you’d expect from a premium brand.
Message a Specialist sales@goind.com.auEnquire For Price
- Ergonomic Handle
- Reduces fatigue and increases comfort for all-day spraying
- No Adjustment Needle
- Provides quick and easy repairs
- Patented Needle Design
- Increases life
- Large Fluid Path
- Reduces clogging
AIR INLET SIZE (CM) | 0.635 |
---|---|
AIR INLET SIZE (IN) | 1/4 |
AIR INLET SIZE (MM) | 6.35 |
AIR INLET THREAD GENDER | Male |
AIR INLET THREAD TYPE | NPSM |
BODY MATERIAL | Aluminum |
COMPATIBLE MATERIAL | Paint, Coating |
COMPONENT A INLET SIZE (CM) | 0.635 |
COMPONENT A INLET SIZE (IN) | 1/4 |
COMPONENT A INLET SIZE (MM) | 6.35 |
COMPONENT A INLET THREAD TYPE | NPSM |
COMPONENT TYPE | Single Component |
FLUID ORIFICE SIZE (CM) | 0.229 |
FLUID ORIFICE SIZE (IN) | 0.090 |
FLUID ORIFICE SIZE (MM) | 2.29 |
FOR USE WITH | Airless Sprayers |
GUN ACTIVATION | Manual |
GUN TYPE | Airless Gun |
GUN WEIGHT (G) | 510 |
GUN WEIGHT (KG) | 0.51 |
GUN WEIGHT (LB) | 1.125 |
GUN WEIGHT (OZ) | 18 |
INCLUDES | RAC X 517, RAC X 517 SwitchTip, RAC X, RAC X HandTite Guard |
MAXIMUM FLUID PRESSURE (BAR) | 345 |
MAXIMUM FLUID PRESSURE (KPA) | 34500 |
MAXIMUM FLUID PRESSURE (PSI) | 5000 |
MAXIMUM FLUID TEMPERATURE (°C) | 50 |
MAXIMUM FLUID TEMPERATURE (°F) | 120 |
MODEL | Flex Plus |
PURGE METHOD | Liquid |
SERIES | Airless Spray Gun |
TRIGGER LOCK | Locking |
TRIGGER TYPE | Two-Finger |
TYPE | Spray Gun |
PRODUCT TYPE | Spray Gun |
SPRAY TYPE | Airless |
GUN INCLUDED | 1 |
APPLICATOR TYPE | Manual |
WETTED PARTS | Stainless Steel, Polyethylene, Polyurethane, Nylon, PTFE |
SOUND POWER LEVEL (DB(A)) | 87 |
SOUND PRESSURE LEVEL (DB(A)) | 78 |
MAXIMUM FLUID PRESSURE (MPA) | 34.5 |

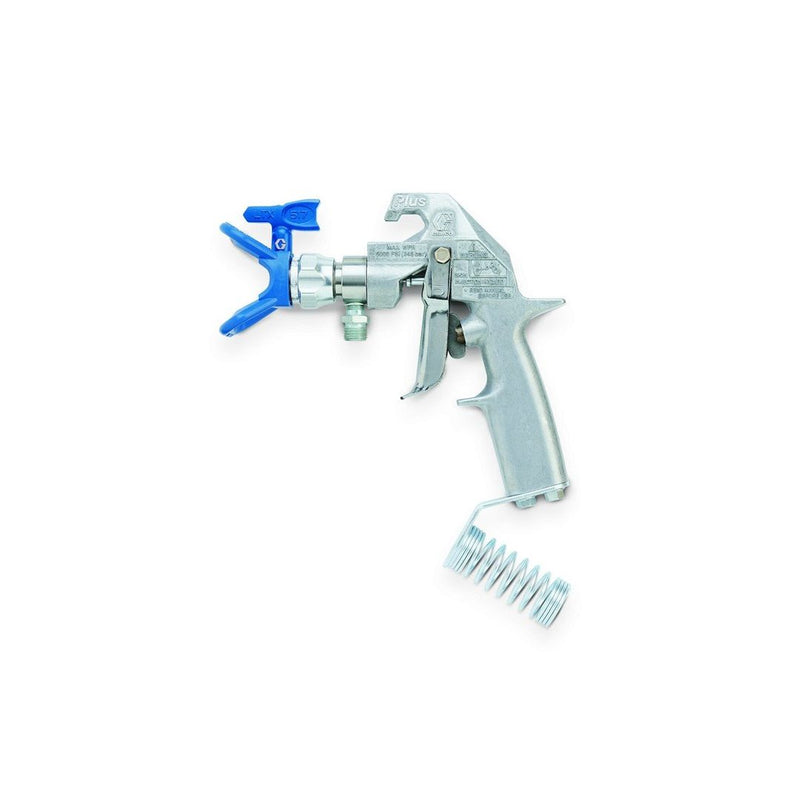

GRACO Spray Gun Airless Flex Plus Gun with RAC X 517 246468
SKU: 246468GRACO Spray Gun Airless Flex Plus Gun with RAC X 517 246468
Other payment options
The Basics
The Flex Plus Airless Spray Gun is the ideal gun for heavy coatings and joint compounds. Includes a 2-finger trigger and a RAC X 517 SwitchTip and Guard.
- Ergonomic Handle
- Reduces fatigue and increases comfort for all-day spraying
- No Adjustment Needle
- Provides quick and easy repairs
- Patented Needle Design
- Increases life
- Large Fluid Path
- Reduces clogging
AIR INLET SIZE (CM) | 0.635 |
---|---|
AIR INLET SIZE (IN) | 1/4 |
AIR INLET SIZE (MM) | 6.35 |
AIR INLET THREAD GENDER | Male |
AIR INLET THREAD TYPE | NPSM |
BODY MATERIAL | Aluminum |
COMPATIBLE MATERIAL | Paint, Coating |
COMPONENT A INLET SIZE (CM) | 0.635 |
COMPONENT A INLET SIZE (IN) | 1/4 |
COMPONENT A INLET SIZE (MM) | 6.35 |
COMPONENT A INLET THREAD TYPE | NPSM |
COMPONENT TYPE | Single Component |
FLUID ORIFICE SIZE (CM) | 0.229 |
FLUID ORIFICE SIZE (IN) | 0.090 |
FLUID ORIFICE SIZE (MM) | 2.29 |
FOR USE WITH | Airless Sprayers |
GUN ACTIVATION | Manual |
GUN TYPE | Airless Gun |
GUN WEIGHT (G) | 510 |
GUN WEIGHT (KG) | 0.51 |
GUN WEIGHT (LB) | 1.125 |
GUN WEIGHT (OZ) | 18 |
INCLUDES | RAC X 517, RAC X 517 SwitchTip, RAC X, RAC X HandTite Guard |
MAXIMUM FLUID PRESSURE (BAR) | 345 |
MAXIMUM FLUID PRESSURE (KPA) | 34500 |
MAXIMUM FLUID PRESSURE (PSI) | 5000 |
MAXIMUM FLUID TEMPERATURE (°C) | 50 |
MAXIMUM FLUID TEMPERATURE (°F) | 120 |
MODEL | Flex Plus |
PURGE METHOD | Liquid |
SERIES | Airless Spray Gun |
TRIGGER LOCK | Locking |
TRIGGER TYPE | Two-Finger |
TYPE | Spray Gun |
PRODUCT TYPE | Spray Gun |
SPRAY TYPE | Airless |
GUN INCLUDED | 1 |
APPLICATOR TYPE | Manual |
WETTED PARTS | Stainless Steel, Polyethylene, Polyurethane, Nylon, PTFE |
SOUND POWER LEVEL (DB(A)) | 87 |
SOUND PRESSURE LEVEL (DB(A)) | 78 |
MAXIMUM FLUID PRESSURE (MPA) | 34.5 |
