Graco LineLazer V 200DC HP Reflective Series Gas Hydraulic Airless Line Striper
  • Graco LineLazer V 200DC HP Reflective Series Gas Hydraulic Airless Line Striper
1 1

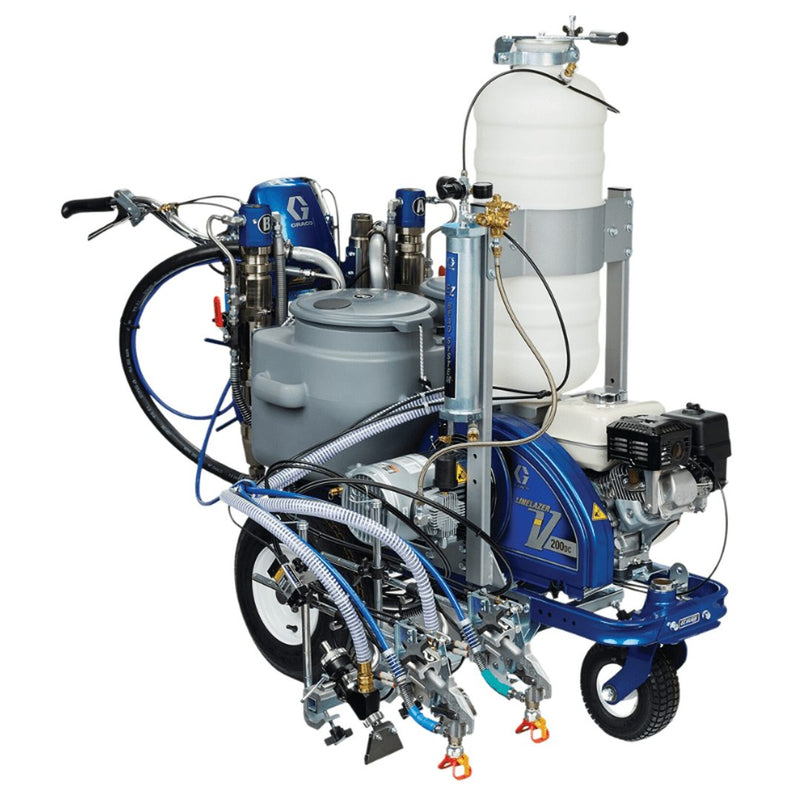

GRACO LineLazer V 200DC HP Reflective Series Dual Colour Line Striper with PBS Tank

SKU: 17Y233

GRACO LineLazer V 200DC HP Reflective Series Dual Colour Line Striper with PBS Tank

$57,640.00 AUD
$57,640.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.

Other payment options

View full details
Graco LineLazer V 200DC HP Reflective Series Gas Hydraulic Airless Line Striper

GRACO LineLazer V 200DC HP Reflective Series Dual Colour Line Striper with PBS Tank

$57,640.00 AUD
$57,640.00 AUD
Save $0
Sold out

Features

Pressurized EZ Bead System

  • Superior bead application performance
  • Ensures proper bead flow and paint penetration
  • Hose clogging eliminated — desiccant air filter removes moisture
  • Large volume bead tank holds up to 120lbs

Automatic Paint Gun System

  • Automatically Stripe Skip-Lines
  • Reduce operator fatigue — push button line production
  • Quality solenoid driven system

Auto-Layout II

  • Simplify Parking Lot Layout
  • SmartControl measures while you walk and puts down pre-marks
  • No need for measuring tape, string lines or aerosol cans
  • Cuts your layout time in half

Live Look Display with SmartControl

  • Striping Information At-A-Glance
  • Track, measure and control every aspect of your job
  • Accessible proof-of-job data from the J-Log System with USB Download
  • Consistent spraying pressure for perfect lines

J-Log System with USB Download

  • Valuable Job Information
  • Proof of job = More striping opportunities.
  • USB download capability allows you to capture and save all job data

Dual Color Capable

  • Two Units in One
  • No need for separate “yellow” and “white” machines

Large, Dual 10-Gallon Hoppers

  • Less Refilling

Dual High-Efficiency Hydraulic Motors

  • Uninterrupted Performance
  • Proven no-stall design

Honda GX Engine

  • Reliable, Easy-to-Start Power
  • Contractor-preferred — excellent power and proven reliability
  • Oil Alert shuts down engine to prevent damage if oil level drops too low

Additional Features

  • EasyMark Gun Adjustment System
  • EZ Align Wheel System
  • DualComfort Handlebar System
  • Endurance Chromex Pump
  • High-Capacity Cooling System
  • QuikSelect Gun Selector
  • Easy Out Pump Filter
  • LazerGuide 1700 Start/Stop Laser

Graco LineLazer V 200DC HP Reflective Series Dual Colour Line Striper with PBS Tank

Overview

Ideal for smaller dual color jobs, the new LineLazer V 200DC simplifies the 2-color application process. Striping contractors can improve their efficiency and profitability by eliminating the need for separate “yellow” and “white” machines, while spending less time refilling materials.

The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.



Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

  • GO Manual Graco LineLazer Application Methods 3A3428EN-B

Specifications

COMPATIBLE SURFACES Pavement, Turf
ENGINE BRAND Honda
ENGINE MODEL GX200
FUEL TANK CAPACITY (GAL) 0.95
FUEL TANK CAPACITY (L) 3.6
GUN ACTIVATION Manual, Automatic
INCLUDES LineLazer RAC 5 319, LineLazer RAC 5 421, 2 flexibles souples airless BlueMax II 3/8 po. x 3 pi, TSL 4 oz, Pistola Flex Plus (2)
MAXIMUM FLOW RATE (GPM) 2.15
MAXIMUM FLOW RATE (L/MIN) 8.14
MAXIMUM SOUND PRESSURE LEVEL (DB(A)) 85.5
MAXIMUM TIP SIZE (CM) 0.0838
MAXIMUM TIP SIZE (IN) 0.033
MAXIMUM TIP SIZE (MM) 0.8382
MAXIMUM WORKING PRESSURE (BAR) 227
MAXIMUM WORKING PRESSURE (KPA) 2270
MAXIMUM WORKING PRESSURE (PSI) 3300
MODEL LineLazer V
NUMBER OF COLORS Two Colors
NUMBER OF GUNS 2
NUMBER OF HOPPERS 2
NUMBER OF PUMPS 2
OVERALL HEIGHT (CM) 113.03
OVERALL HEIGHT (IN) 44.5
OVERALL HEIGHT (MM) 1130.3000
OVERALL LENGTH (CM) 174.63
OVERALL LENGTH (IN) 68.75
OVERALL LENGTH (MM) 1746.25
OVERALL WIDTH (CM) 87
OVERALL WIDTH (IN) 34.25
OVERALL WIDTH (MM) 869.9500
POWER RATING (HP) 6.5
POWER RATING (KW) 4.85
PUMP TYPE Endurance
SERIES 200DC
COMPATIBLE MATERIAL Road-Marking Paint
WEIGHT (KG) 223
WEIGHT (LB) 492
TYPE Walk-Behind Line Striper
POWER SOURCE Gas Hydraulic
BEAD TANK SIZE (LB) 120
PRODUCT SERIES HP Reflective

    Features

    Pressurized EZ Bead System

    • Superior bead application performance
    • Ensures proper bead flow and paint penetration
    • Hose clogging eliminated — desiccant air filter removes moisture
    • Large volume bead tank holds up to 120lbs

    Automatic Paint Gun System

    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system

    Auto-Layout II

    • Simplify Parking Lot Layout
    • SmartControl measures while you walk and puts down pre-marks
    • No need for measuring tape, string lines or aerosol cans
    • Cuts your layout time in half

    Live Look Display with SmartControl

    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines

    J-Log System with USB Download

    • Valuable Job Information
    • Proof of job = More striping opportunities.
    • USB download capability allows you to capture and save all job data

    Dual Color Capable

    • Two Units in One
    • No need for separate “yellow” and “white” machines

    Large, Dual 10-Gallon Hoppers

    • Less Refilling

    Dual High-Efficiency Hydraulic Motors

    • Uninterrupted Performance
    • Proven no-stall design

    Honda GX Engine

    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low

    Additional Features

    • EasyMark Gun Adjustment System
    • EZ Align Wheel System
    • DualComfort Handlebar System
    • Endurance Chromex Pump
    • High-Capacity Cooling System
    • QuikSelect Gun Selector
    • Easy Out Pump Filter
    • LazerGuide 1700 Start/Stop Laser
