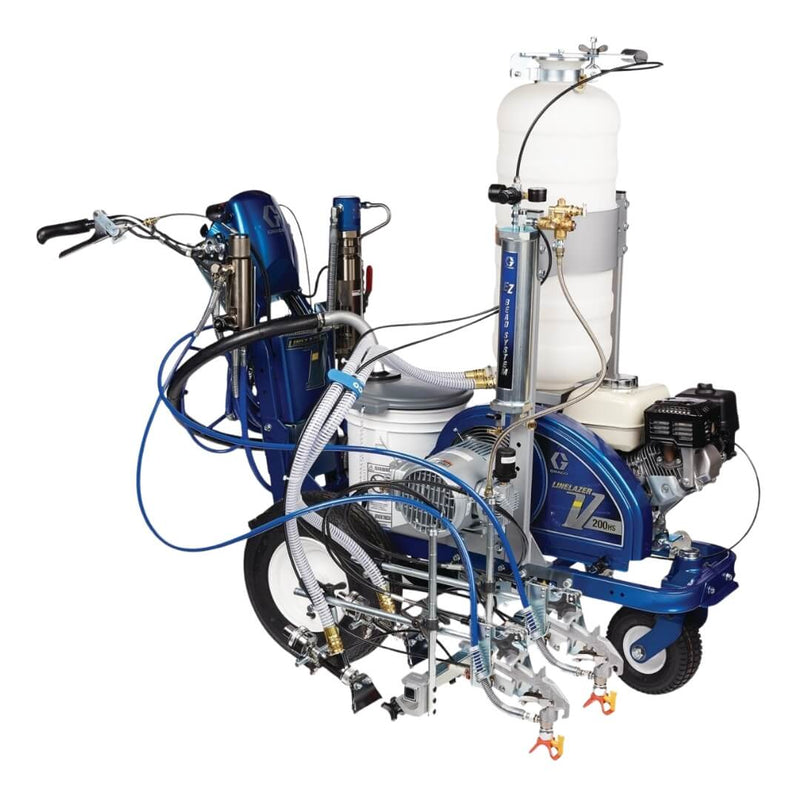

GRACO LineLazer V 200HS HP Reflective Series Airless Line Striper - GO Industrial - 17K585

GRACO LineLazer V 200HS HP Reflective Series Airless Line Striper

SKU 17K585
Afterpay Zip PayPal LeaseGO
$40,200.00
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
In Stock

Pickup available at GO Industrial

Usually ready in 1 hour

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Frequently bought together

Bundle the essentials.

Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

Total price
Product details

Built for the work it does.

With high production features and bead capability, the LineLazer V 200HS HP Reflective Series is a true workhorse designed for high performance striping on the most demanding jobs like large parking lots, airports, and city jobs that require precise lines and reflective beads.

The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

      Features

      • Pressurized EZ Bead System: This system utilizes compressed air to deliver consistent, pressurized bead flow directly into the paint line, ensuring superior bead embedment and optimal reflectivity.

      • Automatic Paint Gun System: This digital, solenoid-driven system automates line striping to effortlessly produce precise skip-lines at the push of a button while significantly reducing operator fatigue.

      • Auto-Layout II: This smart system measures the parking lot as you walk and automatically places pre-marks, cutting layout time in half without the need for tape measures or chalk lines.



      • LiveLook Display with SmartControl: This digital dashboard provides real-time tracking, measurement, and control of your striping jobs while maintaining consistent spraying pressure for perfect lines.



      • J-Log System with USB Download: This onboard data system automatically records valuable proof-of-job metrics that can be easily downloaded via USB to provide clients with verified completion reports.



      • Honda® GX Engine: This contractor-preferred engine delivers reliable, easy-to-start power and includes an automatic Oil Alert system to protect the motor from damage.



      • EasyMark Gun Adjustment System: This user-friendly guide system ensures perfect multi-gun alignment every time and simplifies vertical or horizontal positioning.



      • EZ Align Wheel System: This toolless tracking system allows for quick and simple front-wheel adjustments on the job site to ensure the striper always rolls in a perfectly straight line.



      • DualComfort Handlebar System: This ergonomic handlebar features high-vibration dampening and easily adjusts to fit any operator, reducing fatigue during long shifts.

      Included accessories
      Specifications
      MOTOR POWER RATING 6.5 HP
      MOTOR TYPE Honda® GX200 Gas Engine (Hydraulic Drive)
      FLUID OUTLET THREAD TYPE NPSM
      FRAME CONFIGURATION Walk-Behind Wheeled Cart
      MAXIMUM FLOW RATE 8.14 L/min | 2.15 G/min
      MAXIMUM SOUND PRESSURE LEVEL 86.5 DBA
      MAXIMUM TIP SIZE 0.047 IN (1 Gun) | 0.033 IN (2 Guns)
      MAXIMUM WORKING PRESSURE 3300 PSI | 227 BAR
      MODEL LineLazer V 200HS
      WEIGHT 189 KG | 417 LB
      COMPATIBLE TIP SIZE (IN) Up to 0.047 In
      PUMP ROD TYPE Hardened Steel (Chromex)
      Warranty

      3 year warranty on all components - pump, gun, motor or engine, drive system, frame, electronics, factory-fitted hoses, plus spray tips on day-one delivery.

      Read full warranty guide ›

      Data Sheet
      Manuals
      Shipping & Returns

      Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.

      30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.

      Read full policy ›

      Watch on the job

      Field videos & walkthroughs.

      FAQs

      Common questions.

      What makes the "HP Reflective Series" (17K585) different from a standard LineLazer 200HS?
      The HP Reflective Series includes Graco’s specialized Pressurized EZ Bead System and the Automatic Paint Gun System as standard, built-in features. This configuration allows you to automatically drop reflective glass beads into painted lines for high-visibility airport, highway, or municipal applications, and accurately stripe skip-lines with simple push-button operation.
      How many spray guns can the LineLazer V 200HS 17K585 operate simultaneously?
      This unit comes equipped to handle a 2-gun setup out of the box using Graco's automatic solenoid-driven system. When operating a single gun, it supports a maximum tip size of up to 0.047 inches, and when running both guns simultaneously, it can support tips up to 0.033 inches each.
      Can I download or track my job layout data with this machine?
      Yes, this model includes the built-in J-Log System with USB Download. It automatically tracks and stores critical proof-of-job data (such as gallons sprayed, line lengths, and average pressure) which you can easily download onto a USB drive to provide professional, verified completion reports to your clients.
      How much glass bead capacity does the Pressurized EZ Bead System have?
      The 17K585 model features dual pressurized bead tanks that can hold up to 120 lbs (54 kg) of glass beads each, providing a total on-board capacity of 240 lbs. Because the system is completely enclosed and pressurized, it ensures smooth, consistent bead flow and excellent paint penetration without clumping.
