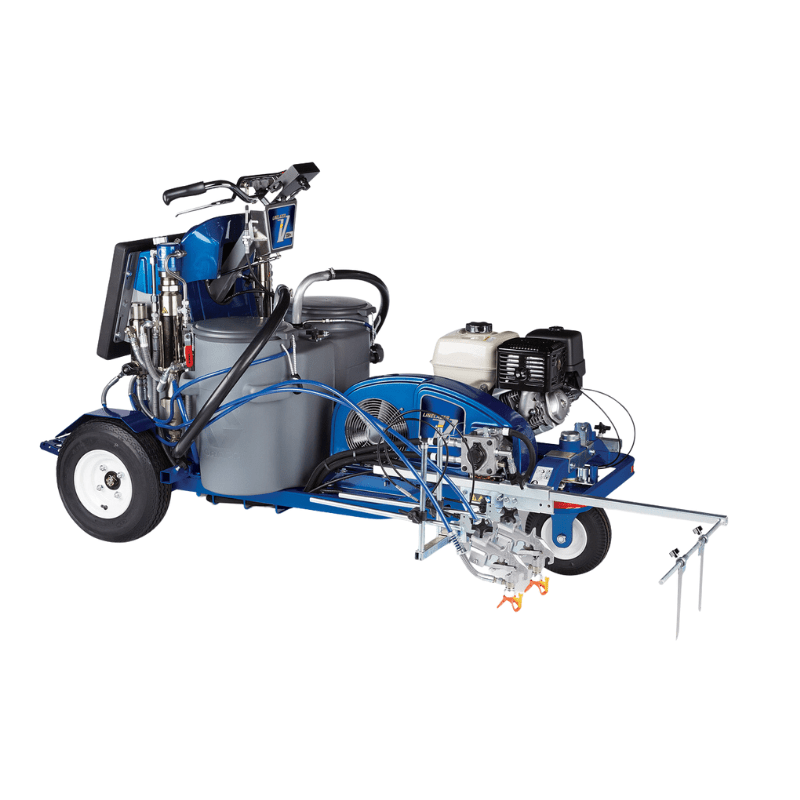

GRACO LineLazer V 250DC HP Automatic Series Dual Colour Airless Line Striper

SKU: 17H471

GRACO LineLazer V 250DC HP Automatic Series Dual Colour Airless Line Striper

$57,900.00 AUD
$57,900.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Model

Other payment options

View full details
GRACO LineLazer V 250DC HP Automatic Series Dual Colour Airless Line Striper - GO Industrial - 17H471

GRACO LineLazer V 250DC HP Automatic Series Dual Colour Airless Line Striper

From $57,900.00 AUD
From $57,900.00 AUD
Save $0
Sold out

Features

Dual High-Efficiency Hydraulic Motors

  • Uninterrupted Performance
  • No-Stall design

Dual Endurance Chromex Pumps

  • Precise Material Flow
  • Consistency with a wide range of striping materials

Automatic Paint Gun System

  • Automatically Stripe Skip-Lines
  • Reduce operator fatigue — push button line production
  • Quality solenoid driven system

Remote Mount Control Box

  • Striping Information At-A-Glance
  • Simple to use and easy to see in all conditions

Dual 15-Gallon Paint Hoppers

  • Less refilling
  • Simultaneously spray two colors and refill less often

Honda® GX Engine

  • Reliable, Easy-to-Start Power
  • Contractor-preferred — excellent power and proven reliability
  • Oil Alert shuts down engine to prevent damage if oil level drops too low

Electric Start

  • Fast starting

EasyMark Gun Adjustment System

  • Easy Gun Adjustments
  • Perfect gun alignment every time with easy-to-use guide mark system
  • 2-gun capability with QuikSelect gun selector

Front or Rear Gun Mount

  • Straighter long lines
  • Use up to six guns

Additional Features

  • Self-Centering Front Wheel
  • Easy Handlebar Adjustment
  • High-Capacity Cooling System
  • Easy Out Pump Filter

Accessories

  • 17K356: LineLazer V 250SPS only: add second pump kit – complete. To upgrade from single pump SPS to a 2-pump DC – kit includes paint pump, filter, hydraulic hose lines, dual 15-gallon paint tanks, and all hardware
  • 17K791: Paint Gun Kit – complete. Kit includes flex gun, LL5319 tip, guard, 7 ft 1/4 in paint hose, gun cable, gun mount
  • 25A691: LazerGuide 1700 Laser Kit. Kit includes laser, laser mount, and all hardware
  • 17T542: LazerGuide 3000 Laser Kit includes laser, laser mount, and all hardware
  • 24G778: Paint Gun Stencil Kit includes 1 Flex Gun, 286425 tip, guard, and 50 ft x 1/4 in hose
  • 238957: Hand Bead Applicator Kit (use with EZ Bead Pressurized Bead System) and mounting brackets. Kit includes 1 bead gun, (2) 3/4 in x 24 ft clear hoses, .234 in/.35 degree tip, 1 ft extension tube, on/off valve, and bracket to mount to paint stencil gun 24G778
  • 19B119: Hand Bead Applicator Kit (use with EZ Bead Pressurized Bead System) - Includes 1 bead gun, (2) 3/4 in x 4 ft clear hoses and all fittings needed to connect to the LineLazer PBS System
  • 249083: Rear Turf Tire Kit includes 2 rear tires for use on turf fields. Also fits standard LineDriver
  • 24M598: Provides improved visibility in low-light conditions. High-output light (LineLazer 250SPS and 250DC)
  • 278452: 25-Gallon Hopper. (LineLazer V 250SPS only) Includes: (1) 25-gallon hopper, lid, and straps

Graco LineLazer V 250DC HP Automatic Series Dual Colour Airless Line Striper

Overview

By spraying two colors simultaneously or independently, the LineLazer V 250DC HP Automatic Series provides high-production dual color striping capability that is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes.

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

Specifications

COMPATIBLE SURFACES Pavement, Turf
ENGINE BRAND Honda
ENGINE MODEL GX390
FUEL TANK CAPACITY (GAL) 1.4
FUEL TANK CAPACITY (L) 5.3
GUN ACTIVATION 3 Automatic
HOPPER VOLUME CAPACITY (GAL) 30
HOPPER VOLUME CAPACITY (L) 114
INCLUDES Pressurized Bead System (2 Tanks), Flex Plus Gun (3), LineLazer RAC 5 321 Spray Tip (3), LineLazer RAC 5 425 Spray Tip (3), LineLazer RAC 5 627 Spray Tip (3), RAC 5 Tip Guard (3), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose (2), 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose (2), TSL, 4 oz (118ml)
MAXIMUM FLOW RATE (GPM) 2.5
MAXIMUM FLOW RATE (L/MIN) 9.5
MAXIMUM OPERATING SPEED (KM/H) 16.1
MAXIMUM OPERATING SPEED (MPH) 10
MAXIMUM SOUND PRESSURE LEVEL (DB(A)) 89.1
MAXIMUM SPEED (RPM) 3600
MAXIMUM TIP SIZE (CM) 0.0787
MAXIMUM TIP SIZE (IN) 0.031
MAXIMUM TIP SIZE (MM) 0.7874
MAXIMUM WORKING PRESSURE (BAR) 227
MAXIMUM WORKING PRESSURE (KPA) 2270
MAXIMUM WORKING PRESSURE (PSI) 3300
MODEL LineLazer V
NUMBER OF COLORS Two Colors
NUMBER OF GUNS 3
NUMBER OF HOPPERS 2
NUMBER OF PUMPS 2
OVERALL HEIGHT (CM) 141.5
OVERALL HEIGHT (IN) 55.7
OVERALL HEIGHT (MM) 1414.7800
OVERALL LENGTH (CM) 186.7
OVERALL LENGTH (IN) 73.5
OVERALL LENGTH (MM) 1866.9
OVERALL WIDTH (CM) 83.8
OVERALL WIDTH (IN) 33
OVERALL WIDTH (MM) 838.2000
POWER RATING (HP) 13
POWER RATING (KW) 9.69
PUMP TYPE Endurance
SERIES 250DC
COMPATIBLE MATERIAL Road-Marking Paint
WEIGHT (KG) 392
WEIGHT (LB) 864
TYPE Self-Propelled Line Striper
POWER SOURCE Gas Hydraulic
BEAD TANK SIZE (LB) 240
PRODUCT SERIES HP Reflective
ATTACHMENTS None

    Features

    Dual High-Efficiency Hydraulic Motors

    • Uninterrupted Performance
    • No-Stall design

    Dual Endurance Chromex Pumps

    • Precise Material Flow
    • Consistency with a wide range of striping materials

    Automatic Paint Gun System

    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system

    Remote Mount Control Box

    • Striping Information At-A-Glance
    • Simple to use and easy to see in all conditions

    Dual 15-Gallon Paint Hoppers

    • Less refilling
    • Simultaneously spray two colors and refill less often

    Honda® GX Engine

    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low

    Electric Start

    • Fast starting

    EasyMark Gun Adjustment System

    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector

    Front or Rear Gun Mount

    • Straighter long lines
    • Use up to six guns

    Additional Features

    • Self-Centering Front Wheel
    • Easy Handlebar Adjustment
    • High-Capacity Cooling System
    • Easy Out Pump Filter
