Built for the work it does.

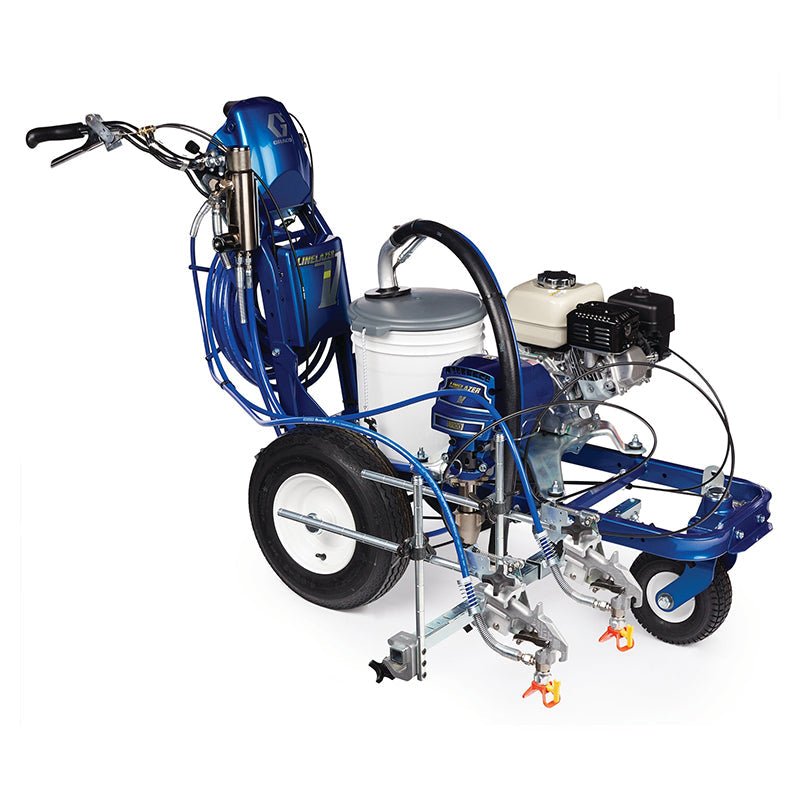

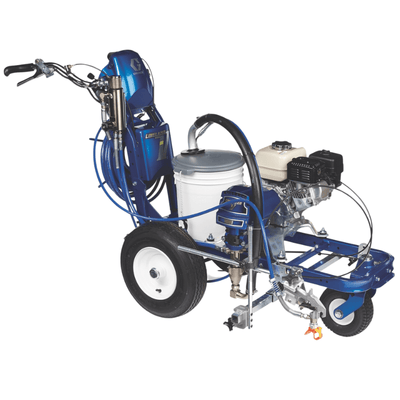

The petrol powered two gun Graco LineLazer V 3900 Standard is the perfect choice for remarking medium to large carparks, for marking new residential lot layouts and for small city road jobs.
The Graco LineLazer V 3900 Standard comes complete with two quick release spray guns with tips suitable for striping – one with longer hose for stencil work, three wheel trolley with lock-in jockey wheel, EasyMark gun adjustment system, adjustable handle bar system, digital display with information storage. The EZ front wheel align system makes sure that the Graco LineLazer V 3900 Standard keeps tracking straight making line marking much easier and quicker. The adjustable handle bar system is a solid four bolt design which is easy to adjust to fit all users.
There is also the option to add a LineDriver to the LineLazer V 3900 for extra efficiency, speed and accuracy.
Features
Features
LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
Dual Comfort Handlebar System
- Easy Handlebar Adjustment
Quik Select Gun Selector
- Simple Gun Control
- Independently control of two guns with one lever — solid/skip
Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
Specifications
| COMPATIBLE SURFACES | Pavement, Turf |
|---|---|
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX120 |
| FUEL TANK CAPACITY (GAL) | 0.66 |
| FUEL TANK CAPACITY (L) | 2.5 |
| GUN ACTIVATION | 2 Manual |
| INCLUDES | Flex Plus Gun (2), LineLazer RAC 5 421, flexible airless BlueMax II 3/8 po. x 50 pi., TSL 4 oz, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, BlueMax II Airless Hose, 3/8 in x 50 ft BlueMax II Airless Hose, TSL, 4 oz |
| MAXIMUM FLOW RATE (GPM) | 1.25 |
| MAXIMUM FLOW RATE (L/MIN) | 4.7 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 85.5 |
| MAXIMUM TIP SIZE (CM) | 0.0635 |
| MAXIMUM TIP SIZE (IN) | 0.025 |
| MAXIMUM TIP SIZE (MM) | 0.6350 |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MODEL | LineLazer V |
| NUMBER OF COLORS | One Color |
| NUMBER OF GUNS | 2 |
| NUMBER OF PUMPS | 1 |
| OVERALL HEIGHT (CM) | 113.03 |
| OVERALL HEIGHT (IN) | 44.5 |
| OVERALL HEIGHT (MM) | 1130.3 |
| OVERALL LENGTH (CM) | 173.36 |
| OVERALL LENGTH (IN) | 68.25 |
| OVERALL LENGTH (MM) | 1733.55 |
| OVERALL WIDTH (CM) | 87 |
| OVERALL WIDTH (IN) | 34.25 |
| OVERALL WIDTH (MM) | 870 |
| POWER RATING (HP) | 4 |
| POWER RATING (KW) | 2.98 |
| PUMP TYPE | Endurance |
| SERIES | 3900 |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 104 |
| WEIGHT (LB) | 230 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas |
| RECOMMENDED ANNUAL USAGE | Up to 500 gallons per week |
| PRODUCT SERIES | Standard |
| ATTACHMENTS | None |
