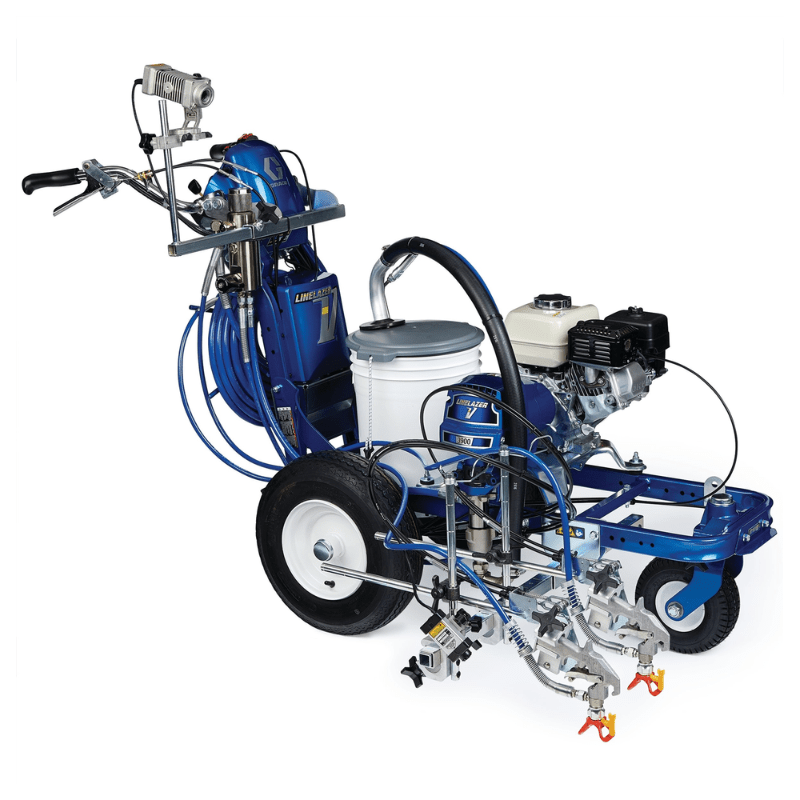

GRACO LineLazer V 3900 HP Automatic Series Airless Line Striper with LazerGuide 2000
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Built for the work it does.
For those advanced striping jobs that require layout work or skip lines, the LineLazer V 3900 HP Automatic Series line striper includes additional features to help you work smarter, finish jobs faster and increase your profitability.
Features
Features
Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
Auto-Layout II
- Simplify Parking Lot Layout
- SmartControl measures while you walk and puts down pre-marks
- No need for measuring tape, string lines or aerosol cans
- Cuts your layout time in half
Lazer Guide 2000 Laser-Guided Layout System
- Improve productivity with less set-up time for higher profits
- Easy, one-person laser-quality line production
- Eliminate the need for tape measures, string or chalk
Live Look Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
J-Log System with USB Download
- Valuable Job Information
- Proof of job = More striping opportunities.
- USB download capability allows you to capture and save all job data
Honda GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
Easy Mark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
Dual Comfort Handlebar System
- Easy Handlebar Adjustment
Additional Features
- Endurance Chromex Pump
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
Specifications
| BEAD SYSTEM | Optional |
|---|---|
| COMPATIBLE SURFACES | Pavement, Turf |
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX120 |
| FEATURES | SmartControl |
| FUEL TANK CAPACITY (GAL) | 0.66 |
| FUEL TANK CAPACITY (L) | 2.5 |
| GUN ACTIVATION | 1 Automatic & 1 Manual |
| INCLUDES |
LazerGuide 2000, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL 4 oz |
| MAXIMUM FLOW RATE (GPM) | 1.25 |
| MAXIMUM FLOW RATE (L/MIN) | 4.73 |
| MAXIMUM TIP SIZE (CM) | 0.0914 |
| MAXIMUM TIP SIZE (IN) | 0.036 |
| MAXIMUM TIP SIZE (MM) | 0.914 |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MODEL | LineLazer V |
| NUMBER OF COLORS | One Color |
| NUMBER OF GUNS | 2 |
| NUMBER OF PUMPS | 1 |
| POWER RATING (HP) | 4 |
| POWER RATING (KW) | 2.98 |
| POWER RATING (W) | 2980 |
| PUMP TYPE | Endurance |
| SERIES | 3900 |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 109 |
| WEIGHT (LB) | 240 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas |
| PRODUCT SERIES | HP Automatic |
| ATTACHMENTS | LazerGuide 2000, LazerGuide 1700 |
Warranty
Manuals
- GO Manual Operation Graco LineLazer V3900 5900 Line Stripers 3A3388EN-H
- GO Parts Manual Graco LineLazer V 3900 5900 3A3389EN-K
- GO Manual Graco LineLazer Application Methods 3A3428EN-B
- GO Manual Instuctions Graco Silver Plus Silver Plus HP and Flex Plus Airless Spray Guns 311254EN-P
- Graco Displacement Pump Service Manual 310643EN-W
