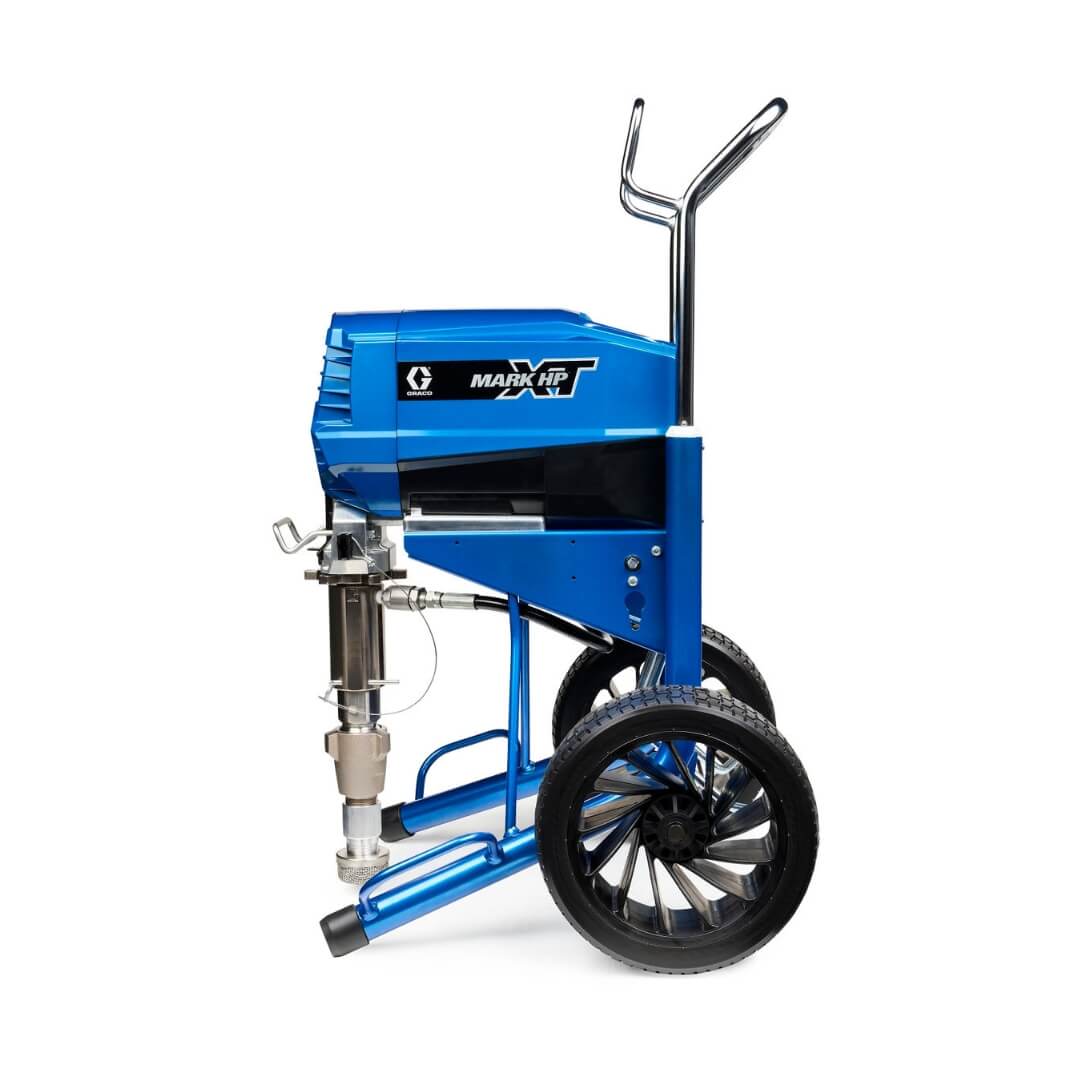

GRACO Mark HP XT HD Standard Electric Airless Sprayer

SKU: 18H420

Regular price: $21,560.00
Sale price: $21,560.00
Regular price

Tax included. Shipping calculated at checkout.

No stock main warehouse, contact for lead time

GRACO Mark HP XT HD Standard Electric Airless Sprayer - GO Industrial - 18H420

Frequently bought together

Total Price:

Product details

GRACO Mark HP XT HD Standard Electric Airless Sprayer

The Mark HP XT delivers a heavy-duty airless and texture spray experience like no other. Made in the USA with a high-output Xtreme Torque motor, Next Generation Rapid-Response Pressure Control, elevated flow performance, and the longest life pump in its class. Whether you are spraying level-5 finishes, fireproofing, or high-volume protective coatings, the Mark HP XT is sure to become the powerhouse staple of your fleet.

Xtreme Power. Xtreme Versatility. Graco's Xtreme Torque Large Electric sprayers make it easier to dominate heavy coatings and high-volume jobs with unmatched flow and production rates.

Included Accessories

Shipping & Returns

Warranty

Features

High-Pressure Performance Capabilities: The sprayer delivers an extreme high pressure of up to 465 bar (6750 psi) along with a maximum flow rate of 5.7 liters per minute (1.5 gpm). It supports a maximum tip size of 0.041 inches to cleanly atomize demanding materials like 100% solids, silicone, epoxy, and vapor barriers.
Xtreme Torque Motor (XT Motor): Designed specifically for airless spraying, this motor features 90% lower running speeds to significantly reduce friction and heat. It delivers 15X more torque than traditional motors for pumping the heaviest materials silently.
Amplifi™ Technology: This intelligent power management system optimizes electrical current to maximize power delivery from standard outlets with minimal loss. It grants the motor the adaptability to automatically recognize generator setups, rough jobsite power, or breaker constraints
Selectable Amperage Control and Dual-Voltage: Users can manually select between 15A/20A at 120V or 10A/16A at 230V to match available breaker power and eliminate nuisance tripping. Its flexible dual-voltage capabilities allow operators to plug in and spray anywhere using standard wall outlets.
Heavy-Duty Drive System: This drive configuration utilizes a newly designed larger gear housing to manage heavy workloads. It relies on a 7:1 gear ratio engineered specifically to handle the machine's increased torque output.
Endurance® Pump with XL ProConnect™ System: The oversized direct-immersion pump easily handles the thickest materials to maintain maximum uptime. Additionally, the ProConnect configuration allows crews to swap out the pump lower in minutes to completely eliminate project downtime.
TurboClean™ Cleaning System: This system utilizes a high-velocity flush that cleans the equipment three times faster. It allows the user to successfully complete cleanup chores using less fluid so they can return to spraying sooner.
WatchDog™ Protection: This automatic safeguard protects your equipment investment by instantly shutting down the pump if the paint or coating material runs out. This prevents severe friction wear and avoids costly component damage. This automatic safeguard protects your equipment investment by instantly shutting down the pump if the paint or coating material runs out. This prevents severe friction wear and avoids costly component damage.
BlueMax II Hose: Includes 15 Meters (50 feet) of 1/4 inch airless hose for plenty of reach.
Rapid Response Pressure Control: This feature delivers the steadiest running pressure possible to guarantee consistent atomization and a perfect finish. It incorporates a digital LED display that can be easily read from all the way across a room.Robust and Lightweight Frame: Featuring a durable powder coat finish, this robust frame effectively protects your investment against job-site abuse. It offers a smaller footprint and is 25% lighter than the nearest gas sprayer, weighing only 73 kg (160 lbs) for easy one-person transport.

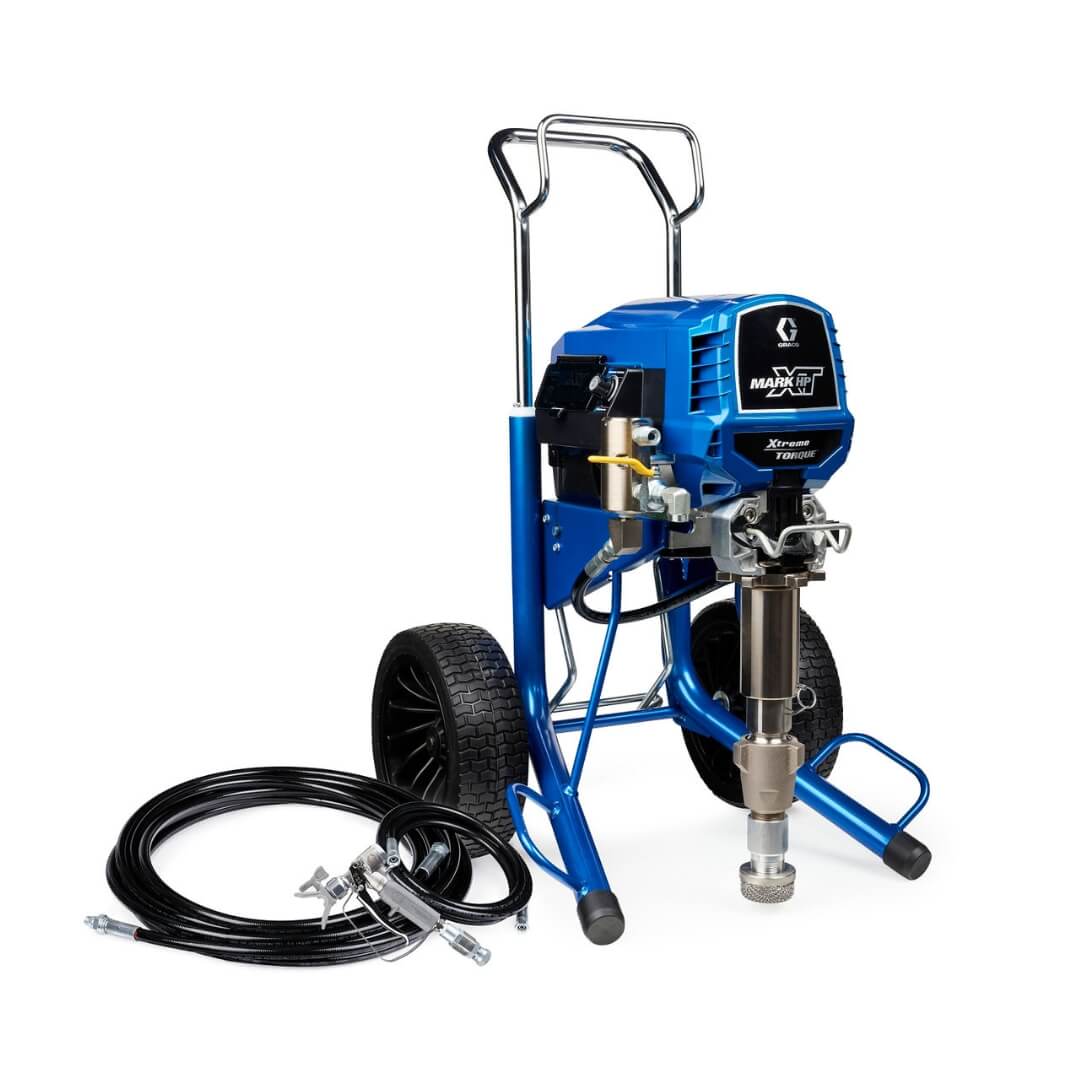

Complete Package Components (Part No. 18H420): This specific complete product package is equipped with an XTR-7 HF Gun, an Xtreme Whip Hose, and an XHD Switch Tip with a guard. It also comes standard with a 1/2-inch by 15-meter Xtreme Hose.

MOTOR POWER RATING	Not Specified in Document
MOTOR TYPE	Xtreme Torque Motor (XT Motor)
FLUID OUTLET THREAD TYPE	1/2" NPT
FRAME CONFIGURATION	Hi-Boy
MAXIMUM FLOW RATE	5.7 L/min \| 1.5 GPM
SOUND POWER LEVEL	Not Specified
SOUND PRESSURE LEVEL	79 dBa
MAXIMUM TIP SIZE	0.041 IN
MODEL	Mark HP XT Complete
MAXIMUM WORKING PRESSURE	6750 PSI \| 465 BAR
VOLTAGE	230V / 120V Flex Voltage
WEIGHT	73 KG \| 160 LB
PLUG TYPE	Selectable Amperage 15A/20A (120V) or 10A/16A (230V)
PUMP ROD TYPE	MaxLife Endurance Pump
MINIMUM GENERATOR POWER	5000 W

GRACO Mark HP XT HD Standard Electric Airless Sprayer

Frequently bought together

GRACO Mark HP XT HD Standard Electric Airless Sprayer

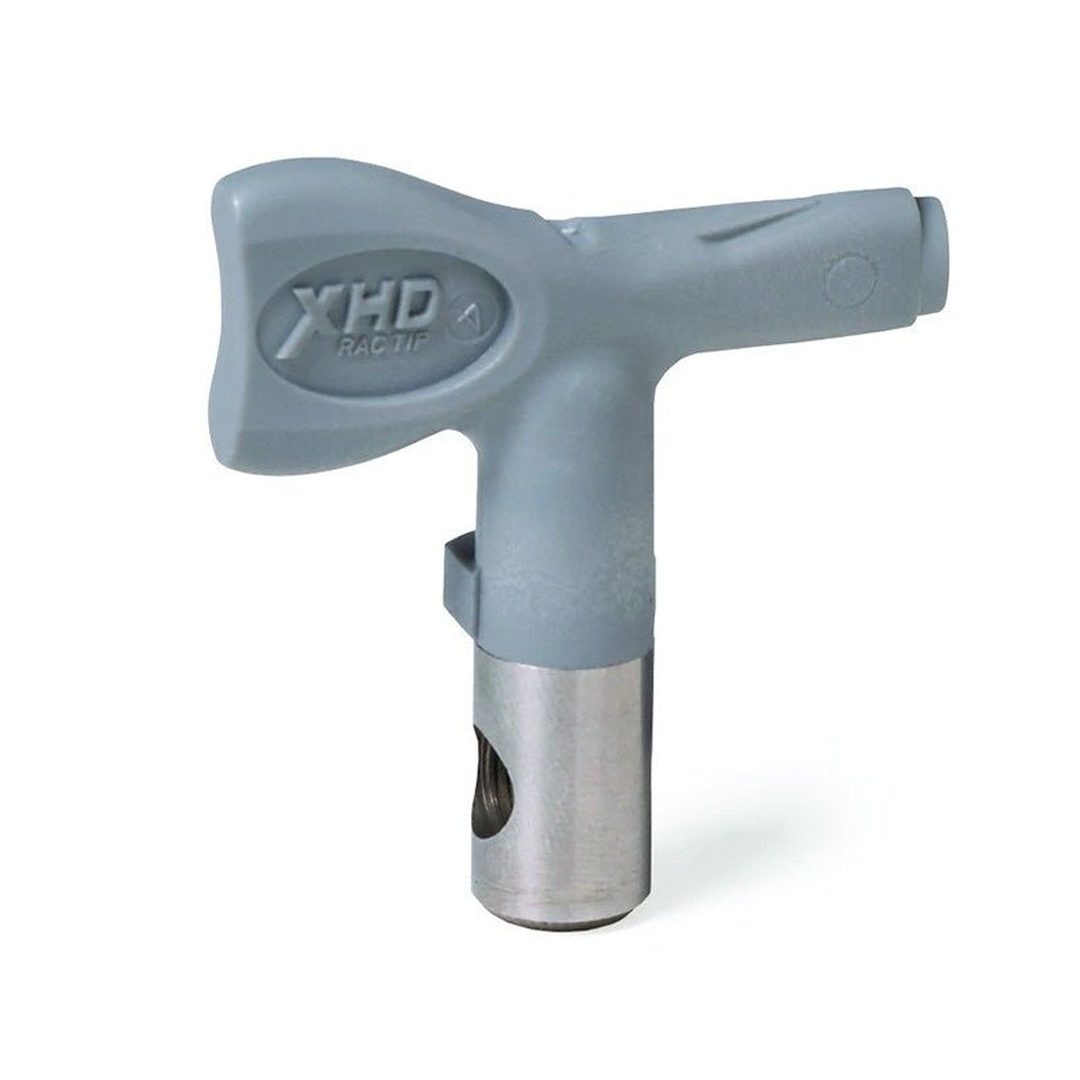

GRACO XHD RAC Switch Tips 0.035 to 0.081 Inch Orifice

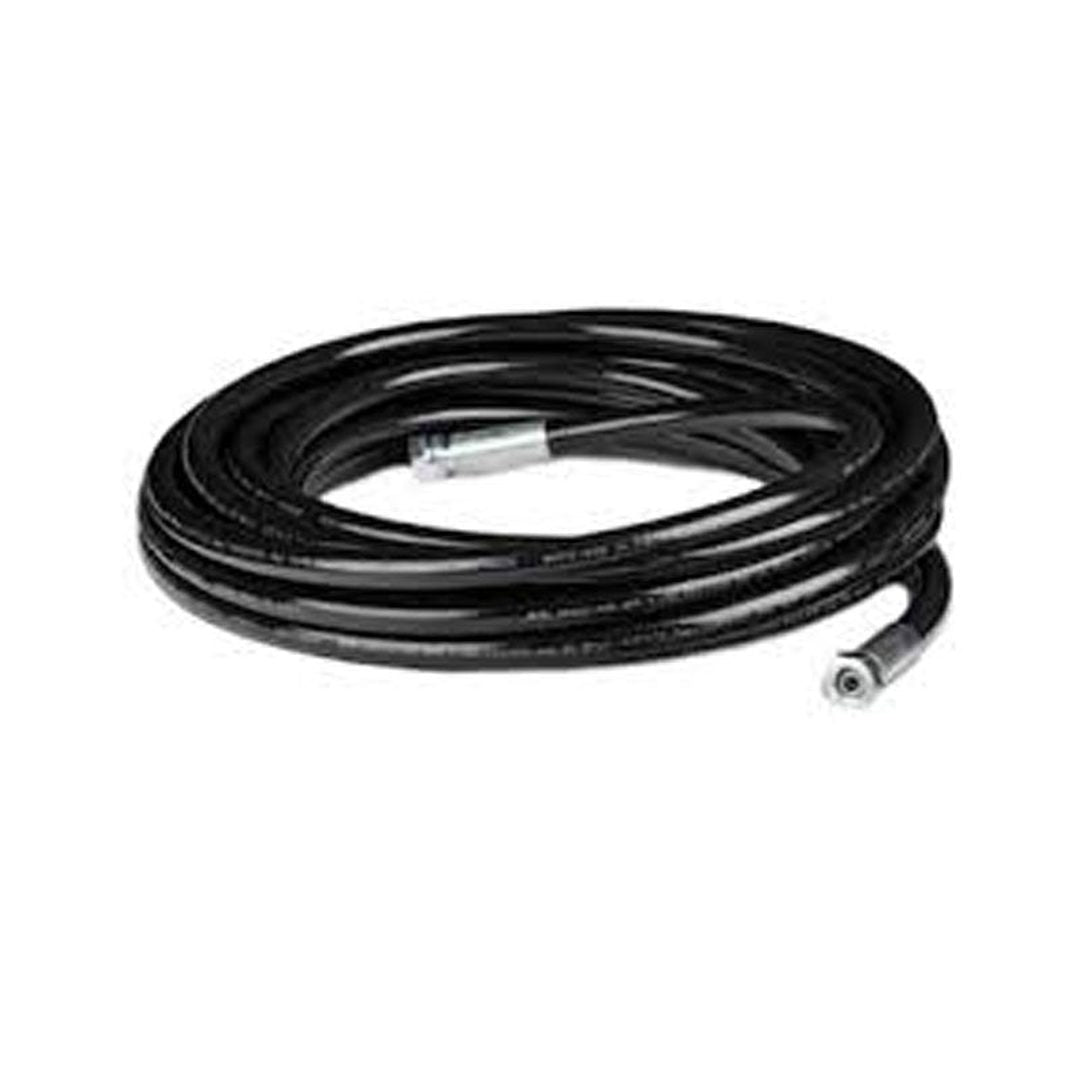

GRACO Xtreme-Duty High-Pressure 7250 psi Airless Spray Hose

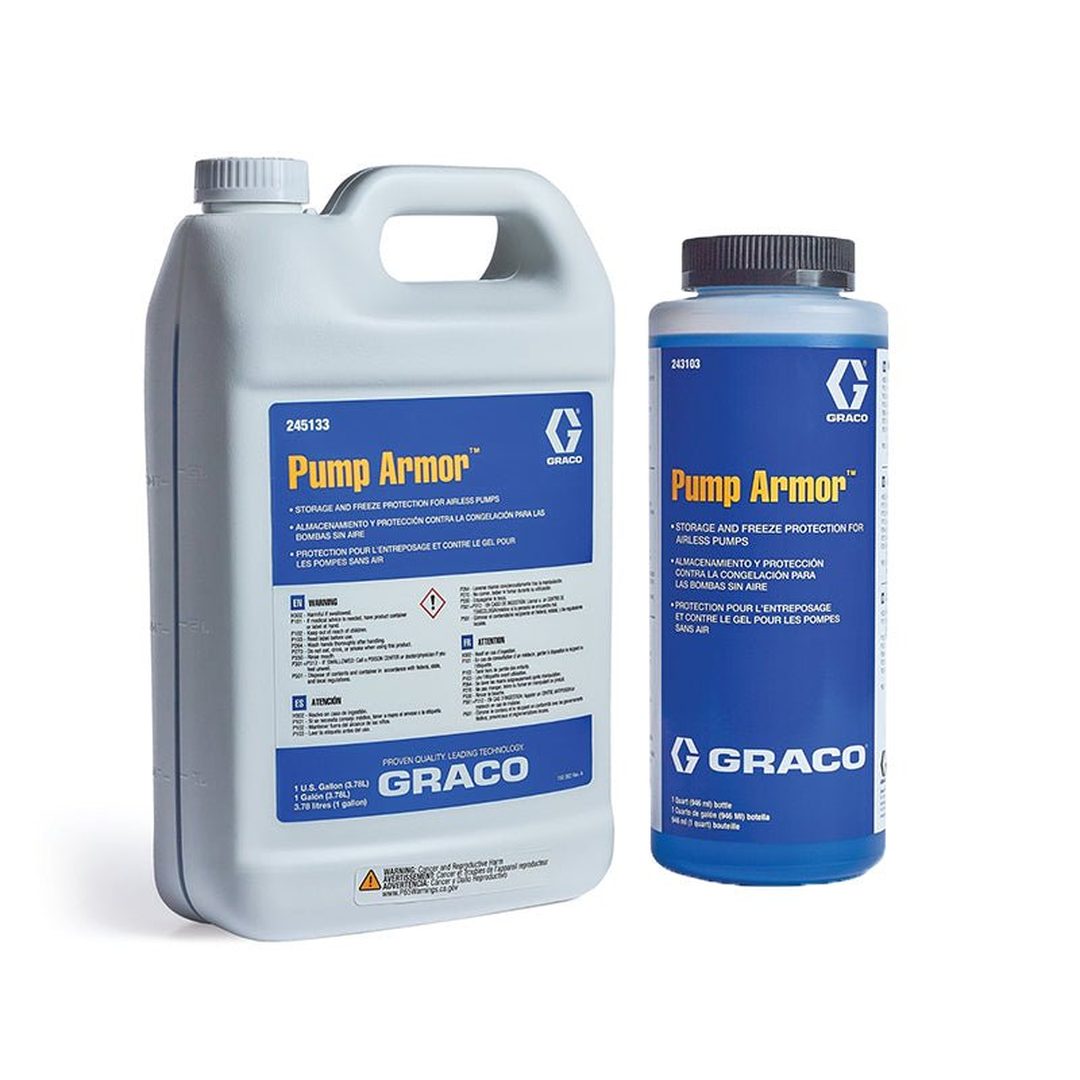

GRACO Pump Armour Fluids

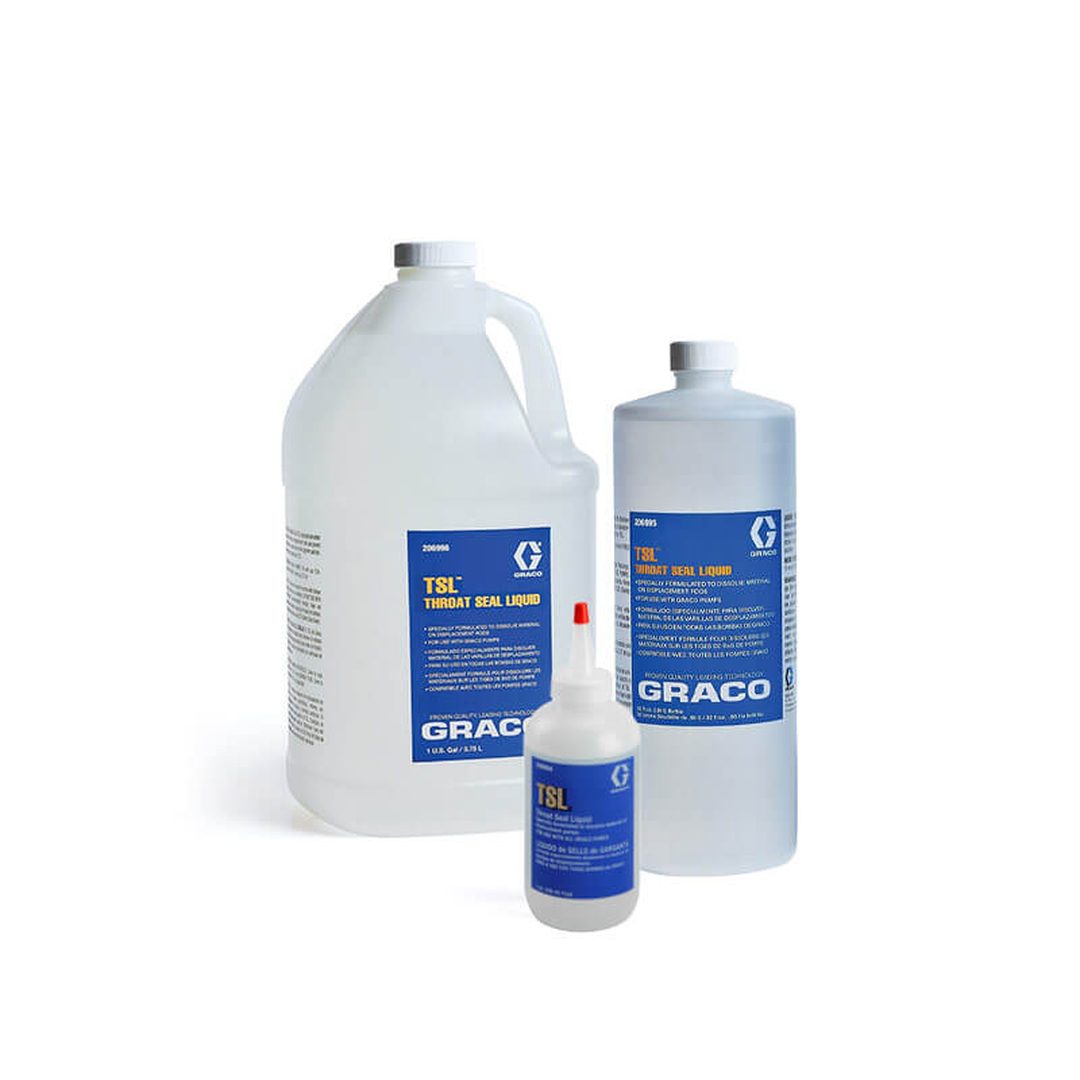

GRACO Throat Seal Liquid (TSL)
