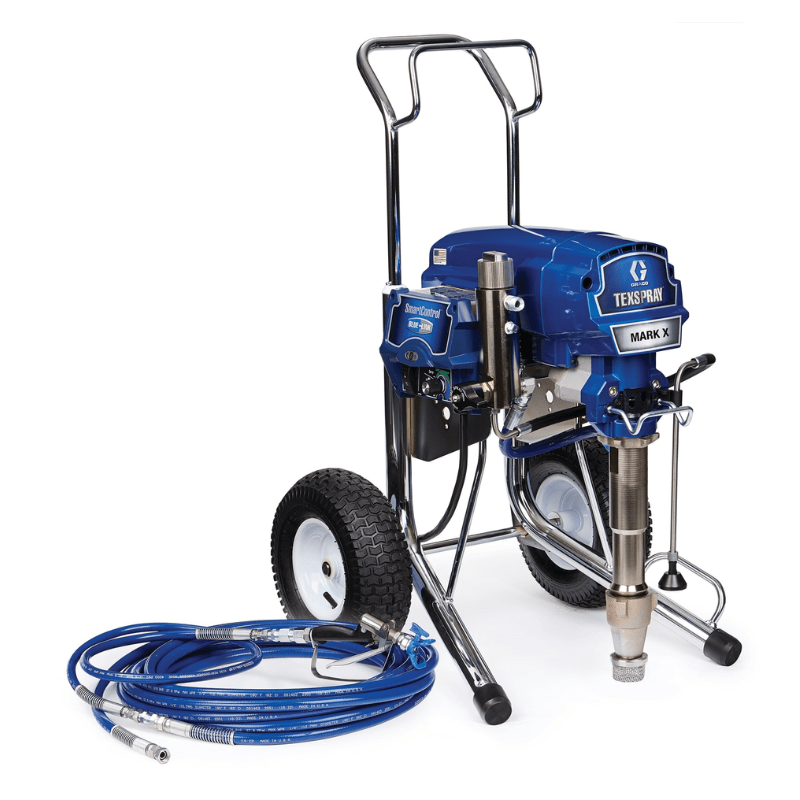

GRACO Mark X HD 3-in-1 Standard Series Electric Airless Sprayer
SKU 17E673
$18,700.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
THE most powerful electric airless texture sprayer. The Mark X HD 240 volt is the sprayer of choice for serious professional contractors with nearly double the output of the Mark V. It easily sprays skim coat in a Level 5 finish, multiple texture finishes and the all primers and paints.
Features
Features
- Endurance Chromex Piston Pump
- The most reliable pump
- Lasts 2X Longer than the next leading brand
- Long life ceramic and stainless steel balls included for maximum versatility
- Faster cleaning with the QuikAccess intake foot valve
- Endurance Chromex Piston Pump
- The most reliable pump
- Lasts 2X Longer than the next leading brand
- Long life ceramic and stainless steel balls included for maximum versatility
- Faster cleaning with the QuikAccess intake foot valve
- BlueLink Job & Sprayer Management System
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- SmartControl 4.0 with ProGuard Protection System
- Precision pressure control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- Prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if the material supply is too low
- Worry-Free MaxPower Motor
- Get more work done
- Proven performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- Use longer cords, regardless of voltage fluctuations
- Precision Advantage Drive
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
- Lifetime Warranty
- WatchDog Pump Protection System
- Prevents dry pumping damage
- Automatically shuts pump down when if the material supply is too low
- Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
- Heavy-Duty Prime Valve
- Maintenance-free high-pressure dumping capability
- Rugged, Durable Cart Design
- Rugged and easy-to-move
- Withstands tough jobsite conditions while absorbing impacts and vibrations
- Easy hose storage with integrated hose wrap and telescoping handle
- Easy loading with built-in lift handles
Specifications
| Amperage (A) | 20 |
|---|---|
| Compatible Replacement Pump | 17H829 |
| Convertible | Non-Convertible |
| Engine Size (HP) | 2.8 |
| Features | Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, FastFlush 2, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve |
| Fluid Outlet Size (cm) | 0.9525 |
| Fluid Outlet Size (mm) | 9.525 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Includes | Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose |
| Maximum Flow Rate (L/min) | 5.1 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (cm) | 0.0991 |
| Maximum Tip Size (mm) | 0.9906 |
| Maximum Tip Size 1 Gun (cm) | 0.0991 |
| Maximum Tip Size 1 Gun (mm) | 0.9906 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Minimum Generator Power (W) | 5000 |
| Model | Mark HD |
| Motor Type | MaxPower |
| Number of Guns | 1 |
| Overall Height (cm) | 97.8 |
| Overall Height (mm) | 978 |
| Overall Length (cm) | 66 |
| Overall Length (mm) | 660 |
| Overall Width (cm) | 61 |
| Overall Width (mm) | 610 |
| Power Rating (HP) | 2.8 |
| Power Rating (W) | 2088.0 |
| Power Rating (kW) | 2.09 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Stainless Steel |
| Weight (kg) | 59 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass |
Manuals
- GO Instructions Graco Parts List for Texture Airless Spray Gun 308491EN-U
- GO Manual Graco Inline HD Texture Gun Operation Parts 309495EN-L
- GO Manual Graco Silver Plus - Flex Plus Spray Guns Manual 311254EN-N
- GO Manual Graco 695 795 1095 1595 Mark IV HD Mark V HD Mark VII HD Mark X HD Electric Airless Sprayers 3A6342EN-G
- GO Manual Graco Displacement Pump Repair 3A6583EN-A
- GO Manual Graco Displacement Pump Repair 3A6584EN-A
- Graco Contractor PC Spray Guns Manual 3A6285EN-J
