The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.

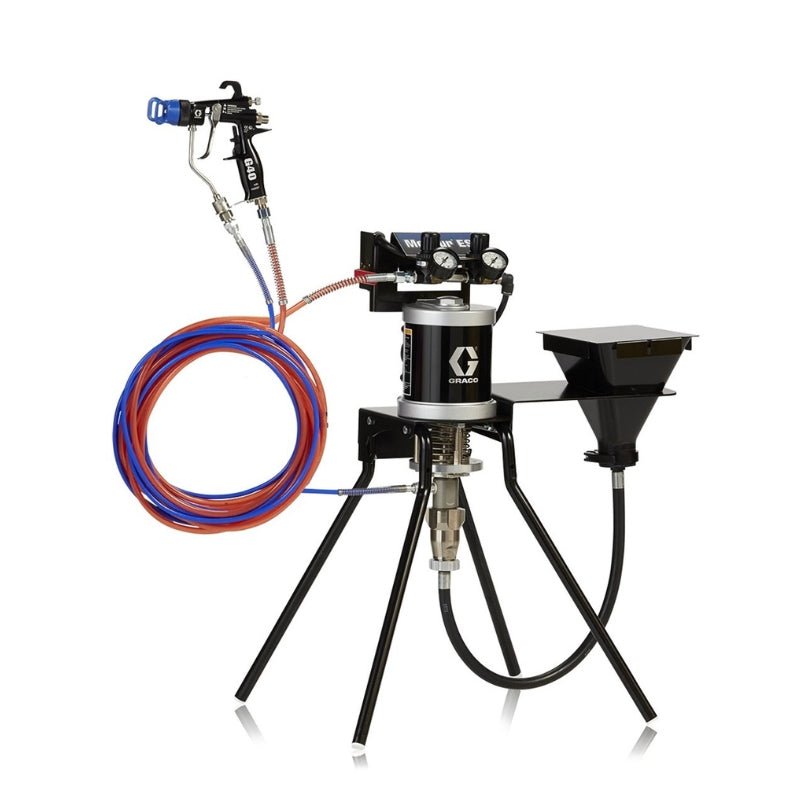

GRACO Merkur ES 30:1 Standard Mount Air Assisted Package
SKU 24W285
$7,350.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Features
Features
Specifications
| CONVERTIBLE | Non-Convertible |
|---|---|
| FLUID OUTLET SIZE (CM) | 0.635 |
| FLUID OUTLET SIZE (IN) | 1/4 |
| FLUID OUTLET SIZE (MM) | 6.35 |
| FLUID OUTLET THREAD TYPE | NPSM |
| HOSE INLET DIAMETER (CM) | 0.3175 |
| HOSE INLET DIAMETER (IN) | 0.125 |
| HOSE INLET DIAMETER (MM) | 3 |
| INCLUDES | G40 Gun, Hopper, Stand Mount |
| MAXIMUM FLOW RATE (GPM) | 0.4 |
| MAXIMUM HOSE LENGTH (FT) | 25 |
| MAXIMUM HOSE LENGTH (M) | 7.6 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 77.9 |
| MAXIMUM TIP SIZE (CM) | 0.0483 |
| MAXIMUM TIP SIZE (IN) | 0.019 |
| MAXIMUM TIP SIZE (MM) | 0.4826 |
| MAXIMUM WORKING PRESSURE (BAR) | 207 |
| MAXIMUM WORKING PRESSURE (KPA) | 20700 |
| MAXIMUM WORKING PRESSURE (PSI) | 3000 |
| MODEL | Merkur |
| MOTOR TYPE | Pneumatic |
| NUMBER OF GUNS | 1 |
| POWER SOURCE | Air |
| PUMP SLEEVE MATERIAL | Carbon Steel |
| PUMP TYPE | Pneumatic Piston Pump |
| SERIES | ES |
| WEIGHT (KG) | 15.9 |
| WEIGHT (LB) | 35 |
| WETTED MATERIAL | Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene |
| SPRAY TYPE | Air-Assisted |
| TYPE | Air-Assisted Airless Sprayer |
| MAXIMUM WORKING PRESSURE (MPA) | 20.7 |
| PRESSURE TYPE | High Pressure |
| MOUNT TYPE | Stand Mount |
| PUMP RATIO | 30:1 |
| GUN TECHNOLOGY | Air-Assisted |
| GUN TYPE | Air-Assisted |
| GUN INCLUDED | 1 |
| PRODUCT TYPE | Spray Package |
| GUN MODEL | G40 |
