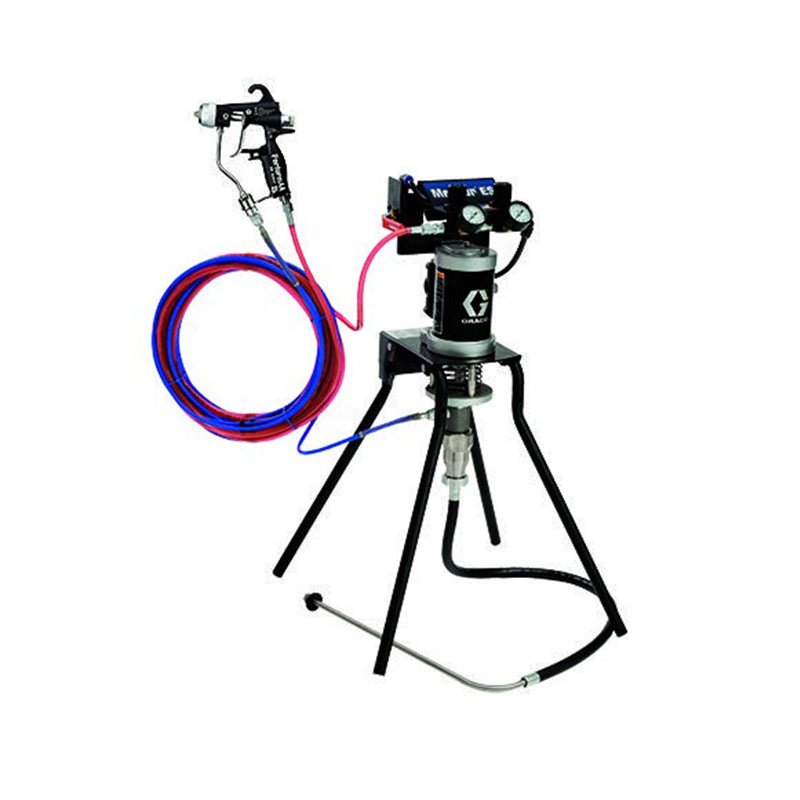

GRACO Merkur 15:1 Stand Mount ES Air Assisted Package
Regular price
From $5,335.00 AUD
Sale price
$5,335.00
Regular price
Unit price
per
Sold out
Features
Graco 15:1 Merkur ES Air Assisted Package Stand Mount
Overview
- Air-Assist and Airless Spray Packages
- Choose between air-assist and airless spray technologies in 15:1 or 30:1 ratios
- The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
Specifications
CONVERTIBLE | Non-Convertible |
---|---|
FLUID OUTLET SIZE (CM) | 0.635 |
FLUID OUTLET SIZE (IN) | 1/4 |
FLUID OUTLET SIZE (MM) | 6.35 |
FLUID OUTLET THREAD TYPE | NPSM |
HOSE INLET DIAMETER (CM) | 0.3175 |
HOSE INLET DIAMETER (IN) | 0.125 |
HOSE INLET DIAMETER (MM) | 3 |
INCLUDES | G15, G15, G15 Gun, Pistola G15, G15, Suction Hose, Stand Mount |
MAXIMUM FLOW RATE (GPM) | 0.4 |
MAXIMUM HOSE LENGTH (FT) | 25 |
MAXIMUM HOSE LENGTH (M) | 7.6 |
MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 76.5 |
MAXIMUM TIP SIZE (CM) | 0.0483 |
MAXIMUM TIP SIZE (IN) | 0.019 |
MAXIMUM TIP SIZE (MM) | 0.4826 |
MAXIMUM WORKING PRESSURE (BAR) | 103 |
MAXIMUM WORKING PRESSURE (KPA) | 10300 |
MAXIMUM WORKING PRESSURE (PSI) | 1500 |
MODEL | Merkur |
MOTOR TYPE | Pneumatic |
NUMBER OF GUNS | 1 |
POWER SOURCE | Air |
PUMP SLEEVE MATERIAL | Carbon Steel |
PUMP TYPE | Pneumatic Piston Pump |
SERIES | ES |
WEIGHT (KG) | 10.4 |
WEIGHT (LB) | 23 |
WETTED MATERIAL | Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene |
SPRAY TYPE | Air-Assisted |
TYPE | Air-Assisted Airless Sprayer |
MAXIMUM WORKING PRESSURE (MPA) | 10.3 |
PRESSURE TYPE | High Pressure |
MOUNT TYPE | Stand Mount |
PUMP RATIO | 15:1 |
GUN TECHNOLOGY | Air-Assisted |
GUN TYPE | Air-Assisted |
GUN INCLUDED | 1 |
PRODUCT TYPE | Spray Package |
GUN MODEL | G15 |
Merkur ES Spray Packages |
|
Maximum Air Input Pressure |
7.0 bar, 0.7 MPa
|
Maximum Fluid Temperature |
71°C
|
Ambient Air Temperature Range |
2–49°C
|
Package Air Inlet Size |
3/8 npt(f)
|
Package Fluid Outlet Size |
1/4 npsm(m)
|
Maximum Motor Speed |
240 cpm
|
Maximum Spray Tip Orifice Size |
0.483 mm
|
Maximum Fluid Working Pressure | |
Models 24F150, 24F151, 24F158, 24F159 |
103 bar, 10.3 MPa
|
Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157 |
207 bar, 20.7 MPa
|
Ratio | |
Models 24F150, 24F151, 24F158, 24F159 |
15:1
|
Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157 |
30:1
|
Sound Data | |
24G693 Air Motor (Models 24F150, 24F151, 24F158, 24F159) | |
Sound Power |
83.2 dBA
|
Sound Pressure |
76.5 dBA
|
24G694 Air Motor (Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157) | |
Sound Power |
84.5 dBA
|
Sound Pressure |
77.9 dBA
|
Wetted Parts | |
Models 24F150, 24F151, 24F154, 24F155, 24F156, 24F157 |
Stainless steel, nickel plated carbon steel, tungsten carbide, PTFE, acetal, leather, ultra high molecular weight polyethylene
|
Models 24F152, 24F153, 24F158, 24F159 |
Stainless steel, tungsten carbide, PTFE, acetal, leather, ultra high molecular weight polyethylene
|
Spray guns |
See applicable gun manual.
|
Fluid hose |
Nylon, plated or stainless steel
|
Suction assembly |
Stainless steel, nylon, acetal, fluoroelastomer, polyethylene
|
- Quick flush system requires less than 1 minute to flush
- 45% less material to fill the system than the leading competitors
- Delivers a superior, consistent spray finish
- Low profile spray package makes it easy to transport
- Easily set and monitor air control, plus an integrated carrying handle for transport
- Air motor provides consistent finishes with smooth, rapid changeover
- Suction hose and strainer leaves less material in the supply container
- Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage
