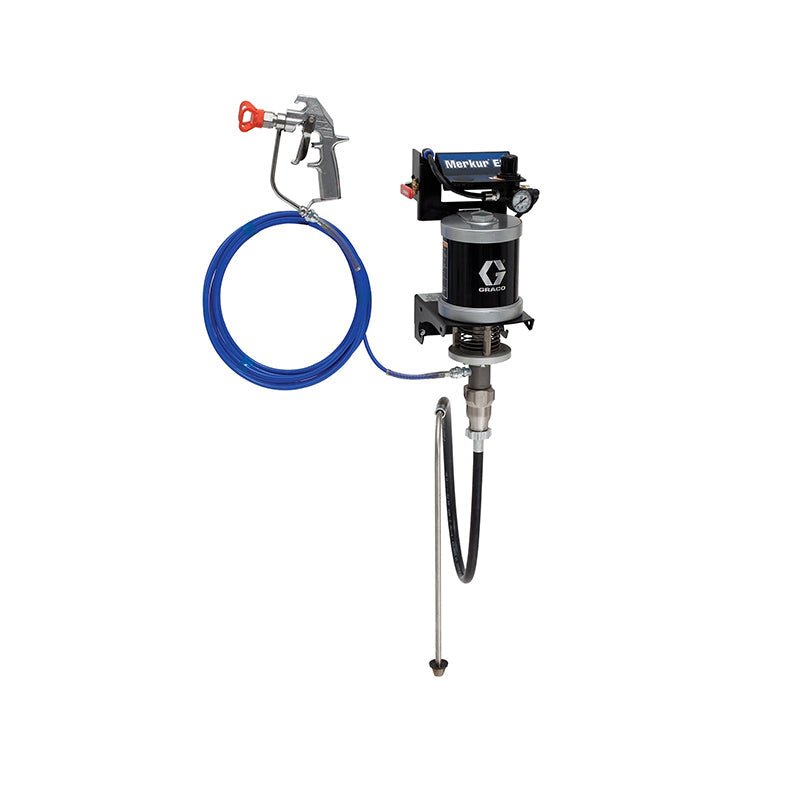

GRACO Merkur ES 30:1 Wall Mount Airless Package
SKU 24F154
$5,950.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Graco 30:1 Merkur ES Airless Package Wall Mount
Overview
- Air-Assist and Airless Spray Packages
- Choose between air-assist and airless spray technologies in 15:1 or 30:1 ratios
- The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
Features
Features
Specifications
| CONVERTIBLE | Non-Convertible |
|---|---|
| FLUID OUTLET SIZE (CM) | 0.635 |
| FLUID OUTLET SIZE (IN) | 1/4 |
| FLUID OUTLET SIZE (MM) | 6.35 |
| FLUID OUTLET THREAD TYPE | NPSM |
| HOSE INLET DIAMETER (CM) | 0.3175 |
| HOSE INLET DIAMETER (IN) | 1/8 |
| HOSE INLET DIAMETER (MM) | 3 |
| INCLUDES | Silver Plus, Silver Plus Gun, Pistola Silver Plus, Silver Plus, Suction Hose, Wall Mount |
| MAXIMUM FLOW RATE (GPM) | 0.40 |
| MAXIMUM FLOW RATE (L/MIN) | 1.5 |
| MAXIMUM HOSE LENGTH (FT) | 25 |
| MAXIMUM HOSE LENGTH (M) | 7.5 |
| MAXIMUM TIP SIZE (CM) | 0.0483 |
| MAXIMUM TIP SIZE (IN) | 0.019 |
| MAXIMUM TIP SIZE (MM) | 0.4826 |
| MAXIMUM WORKING PRESSURE (PSI) | 3000 |
| MAXIMUM WORKING PRESSURE (KPA) | 20700 |
| POWER SOURCE | Air |
| MAXIMUM WORKING PRESSURE (MPA) | 20.7 |
| MODEL | Merkur |
| MAXIMUM WORKING PRESSURE (BAR) | 207 |
| WEIGHT (KG) | 9 |
| WEIGHT (LB) | 20 |
| SERIES | ES |
| PUMP TYPE | Pneumatic Piston Pump |
| TYPE | Airless Sprayer |
| SPRAY TYPE | Airless |
| MOTOR TYPE | Pneumatic |
| WETTED MATERIAL | Stainless Steel, Carbon Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE |
| NUMBER OF GUNS | 1 |
| PRESSURE TYPE | High Pressure |
| MOUNT TYPE | Wall Mount |
| GUN TECHNOLOGY | Airless |
| GUN TYPE | Airless |
| GUN INCLUDED | 1 |
| GUN MODEL | Silver Plus Gun |
| PUMP RATIO | 30:1 |
| PRODUCT TYPE | Spray Package |
Merkur ES Spray Packages |
|
| Maximum Air Input Pressure |
7.0 bar, 0.7 MPa
|
| Maximum Fluid Temperature |
71°C
|
| Ambient Air Temperature Range |
2–49°C
|
| Package Air Inlet Size |
3/8 npt(f)
|
| Package Fluid Outlet Size |
1/4 npsm(m)
|
| Maximum Motor Speed |
240 cpm
|
| Maximum Spray Tip Orifice Size |
0.483 mm
|
| Maximum Fluid Working Pressure | |
| Models 24F150, 24F151, 24F158, 24F159 |
103 bar, 10.3 MPa
|
| Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157 |
207 bar, 20.7 MPa
|
| Ratio | |
| Models 24F150, 24F151, 24F158, 24F159 |
15:1
|
| Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157 |
30:1
|
| Sound Data | |
| 24G693 Air Motor (Models 24F150, 24F151, 24F158, 24F159) | |
| Sound Power |
83.2 dBA
|
| Sound Pressure |
76.5 dBA
|
| 24G694 Air Motor (Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157) | |
| Sound Power |
84.5 dBA
|
| Sound Pressure |
77.9 dBA
|
| Wetted Parts | |
| Models 24F150, 24F151, 24F154, 24F155, 24F156, 24F157 |
Stainless steel, nickel plated carbon steel, tungsten carbide, PTFE, acetal, leather, ultra high molecular weight polyethylene
|
| Models 24F152, 24F153, 24F158, 24F159 |
Stainless steel, tungsten carbide, PTFE, acetal, leather, ultra high molecular weight polyethylene
|
| Spray guns |
See applicable gun manual.
|
| Fluid hose |
Nylon, plated or stainless steel
|
| Suction assembly |
Stainless steel, nylon, acetal, fluoroelastomer, polyethylene
|
