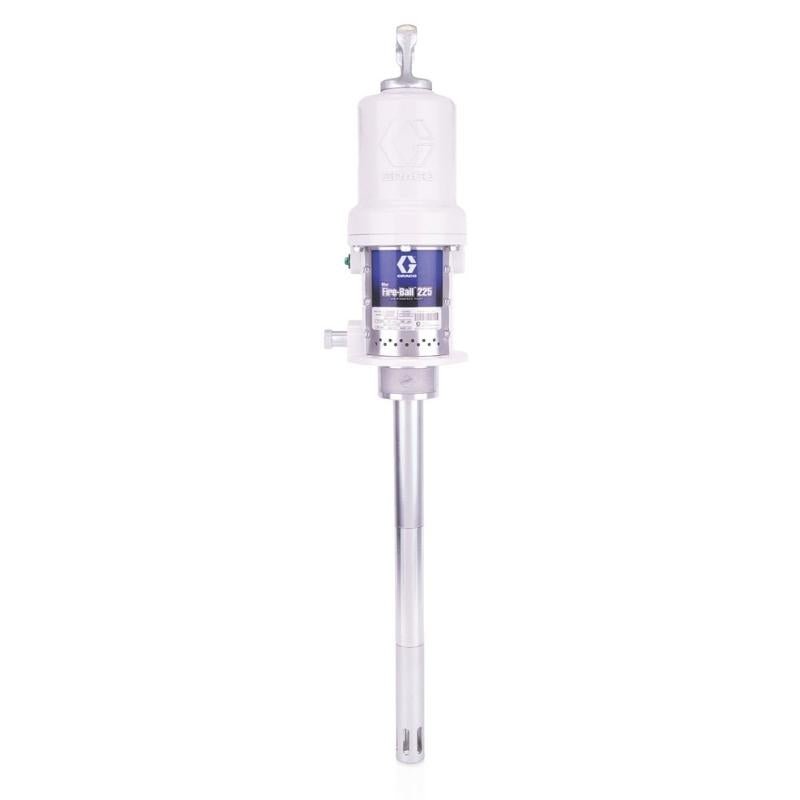

GRACO Mini Fire-Ball 225 50:1 Grease Pumps

SKU: 246909

GRACO Mini Fire-Ball 225 50:1 Grease Pumps

$2,160.00 AUD
$2,160.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Capacity

Other payment options

View full details
GRACO Mini Fire - Ball 225 50:1 Grease Pumps - GO Industrial - 246909

GRACO Mini Fire-Ball 225 50:1 Grease Pumps

From $2,160.00 AUD
From $2,160.00 AUD
Save $0
Sold out

Details

The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications.

  • Approx Free Flow Rate @ 100 psi: 1.5 lb/min (0.7 kg/min)
  • Continuous Duty Flow Rate: 0.32 lb/min (0.15 kg/min)
  • Air Inlet: 3/8 in NPT(F)
  • Fluid Outlet: 1/4 in NPT(F)
  • Air Operation Range: 40 psi to 140 psi (3 bar to 10 bar)
  • Max Fluid: 8,400 psi (578 bar / 57.8 MPa)

Features

  • Durable: Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime: Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing: Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant: Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

    • Graco Mini Fire-Ball 225 50:1 Grease Pumps

    Overview

    You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • Graco 50-1 Mini Fire-Ball 225 Grease Pumps Manual - GO Industrial
      • Graco Mini Fire-Ball 225 Grease Pumps Data Sheet - GO Industrial

      Specifications

      TYPE Pneumatic Piston Pump
      AIR INLET SIZE (CM) 0.9525
      AIR INLET SIZE (IN) 3/8
      AIR INLET SIZE (MM) 9.525
      AIR INLET THREAD GENDER Female
      AIR INLET THREAD TYPE NPT
      AIR MOTOR EFFECTIVE DIAMETER (IN) 2.25
      APPLICATION Industrial
      COMPATIBLE MATERIAL Grease
      FLUID INLET TYPE Slotted
      FLUID OUTLET SIZE (CM) 0.635
      FLUID OUTLET SIZE (IN) 1/4
      FLUID OUTLET SIZE (MM) 6.35
      FLUID OUTLET THREAD GENDER Female
      FLUID OUTLET THREAD TYPE NPT
      FOR USE WITH Grease
      MAXIMUM AIR INLET PRESSURE (BAR) 9.65
      MAXIMUM AIR INLET PRESSURE (KPA) 965
      MAXIMUM AIR INLET PRESSURE (PSI) 140
      MAXIMUM CONTINUOUS CYCLE RATE (CPM) 60
      MAXIMUM INTERMITTENT CYCLE RATE (CPM) 100
      MAXIMUM WORKING PRESSURE (BAR) 580
      MAXIMUM WORKING PRESSURE (KPA) 58000
      MAXIMUM WORKING PRESSURE (PSI) 8400
      MODEL Mini Fire-Ball
      POWER TYPE Pneumatic
      PUMP RATIO 50:1
      SEAL MATERIAL Polyurethane
      SERIES 225
      SOUND POWER LEVEL (DB(A)) 85.6
      SOUND PRESSURE LEVEL (DB(A)) 77.8
      WEIGHT (LB) 15
      WETTED MATERIAL Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin
      WEIGHT (KG) 0.681
      MAXIMUM WORKING PRESSURE (MPA) 58

        Features

      • Durable: Thick cast aluminum air motor housing offers unmatched durability.
      • Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
      • Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
      • Reduce Downtime: Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
      • Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
      • Reduced Icing: Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
      • Corrosion-Resistant: Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
