GRACO ToughTek Hopper M680a Complete Piston Pump Range

SKU: 262927

$18,150

GRACO ToughTek Hopper M680a Complete Piston Pump Range

The ToughTek M680a piston pump handles abrasive materials such as epoxy mortars, non-skid coatings (bridges and marine industry – solvent based coatings) or cementitious materials, and tackles difficult polymers with fillers such as glass flake, silica or sand. The all stainless design makes cleanup of epoxy mortars easy and worry-free.

Portable sprayer for mortar, cementitious and heavily filled materials.

All packages include:

  • Pump
  • Motor
  • Controls on cart
  • Gaskets for cam and groove connectors
  • Pilot tube repair fitting
  • Pump ratchet tool
  • Soft seal pump kit
  • Part number 262927 includes a complete pump repair kit instead of soft seal kit.

Part Number 262927 Package:

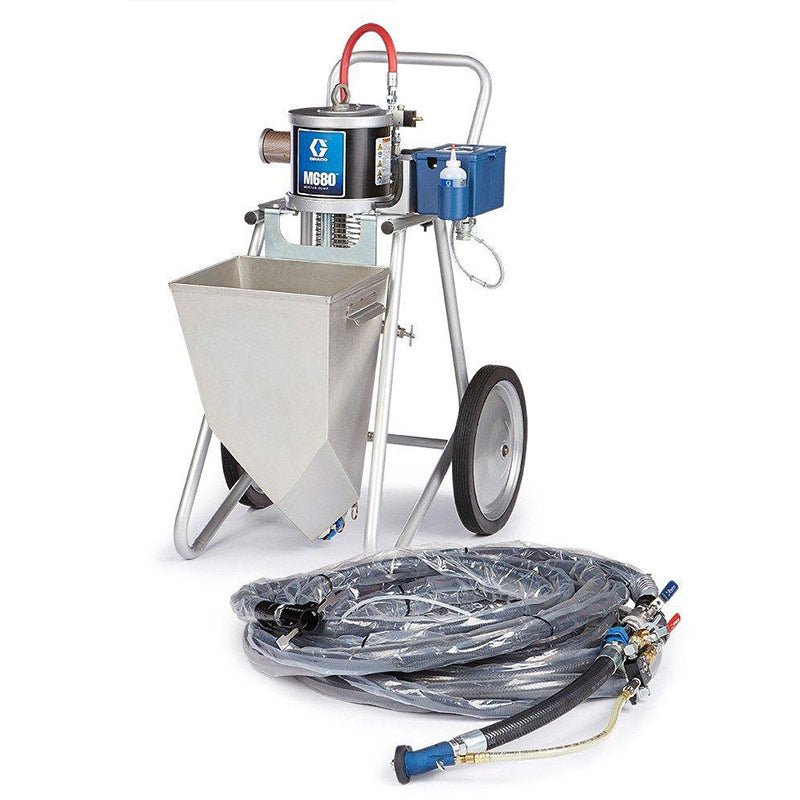

  • M680 Cart Unit
  • 18m hose kit (60ft)
  • 24U209 HTX 680 and 24T947 Flex Hose applicator
  • Stainless Steel hopper
  • Spare hard rubber retaining cap
  • Extra #3, 4, 8 & 9 size nozzles for Flex Hose/Pole Applicator

Part Number 24T834 Package:

  • M680 Cart Unit
  • 10.7m hose kit (35ft)
  • 24T947 Flex Hose applicator
  • 38 litre Stainless Steel hopper with 2" NPT cam/groove fittings and mounting bracket


                    Downloads

                      DATA SHEET
                      CASE STUDY
                      MANUAL
                      MANUAL - PUMP
                      VIDEO - SPRAY
                      VIDEO - SET UP



                       Specifications:

                      Maximum Working Pressure
                      7 MPa, 70 bar
                      Maximum Air Inlet Pressure
                      0.7 MPa, 7 bar
                      Minimum Inlet Air Flow (Typical)
                      0.85 cubic meters per minute
                      Minimum Inlet Air Flow (Pump Only)
                      0.06 cubic meters per minute per liter at 7 bar
                      Pressure Ratio (Fluid to Air)
                      10:1
                      Air Motor Piston Diameter
                      191 mm
                      Stroke Length
                      120 mm
                      Lower Output
                      686 cc per cycle
                      Flow Rate at 30 cycles per minute
                      20.6 lpm
                      Flow Rate at 60 cycles per minute
                      41.2 lpm
                      Air Inlet Size
                      3/4 npt(f) (Chicago Fitting)
                      Fluid Inlet Size
                      2 in. Cam Groove (Male)
                      Fluid Outlet Size
                      1 npt(f) with a 1 in. Cam and Groove Fitting
                      Weight (without fluid)
                      113 kg, (with 7.6 m of 25 mm hose and 3.0 m of 19 mm hose)
                      Sound Pressure
                      118 dB(A)*
                      Sound Power
                      118 dB(A)*
                      Dimensions
                      Height
                      113 cm
                      Width
                      70 cm
                      Depth (pump on cart only)
                      81 cm
                      Deep (pump on cart with hopper)
                      94 cm
                      Maximum Pump Speed, Do not exceed maximum recommended pump speed of fluid pump to prevent premature pump wear)
                      Spraying
                      40 cycles per minute (typically less than 10 cycles per minute)
                      Flushing
                      60–90 cycles per minute (only when pumping flushing fluid)
                      Wetted Parts
                      Entire System
                      Stainless steel, UHMWPE, nylon, plated steel, anodized aluminum, FX-75
                      Pump
                      Stainless steel, carbide, PTFE, UHMWPE, solvent-resistant o-rings
                      Hose Kits
                      Nylon core, plated carbon steel fittings, anodized aluminum, nitrile gaskets

                      Benefits

                      • Saves labor costs
                      • Less material waste and improved quality
                      • Fast, easy cleaning
                      • Built tough for long-lasting durability
                      • Ideal for coating contractors
                      • Compact and portable
                      • Easy to move - only 250 pounds (113 kg)

                      Materials and Applications

                      • Epoxy-based mortars
                      • Non-skid coatings
                      • Cementitious coatings and fireproofing
                      • Re-surfacing materials
                      • Waterproofing
                      • Polymers with glass flake, silica or sand fillers
                      • Water and wastewater treatment plants
                      • Mining
                      • Oil and gas

                      Primary Features

                      • Low pressure pumping (200 to 500 psi/13,7 to 34.5 bar) reduces wear on pump lower
                      • Less material waste and more consistent finish than hand-trowling
                      • Fast, easy cleaning with high volicty flush
                      • Can be quickly disassembled for hand cleaning
                      • Explosion-proof for hazardous spray areas
                      • One convenient air source to run pump and atomize air

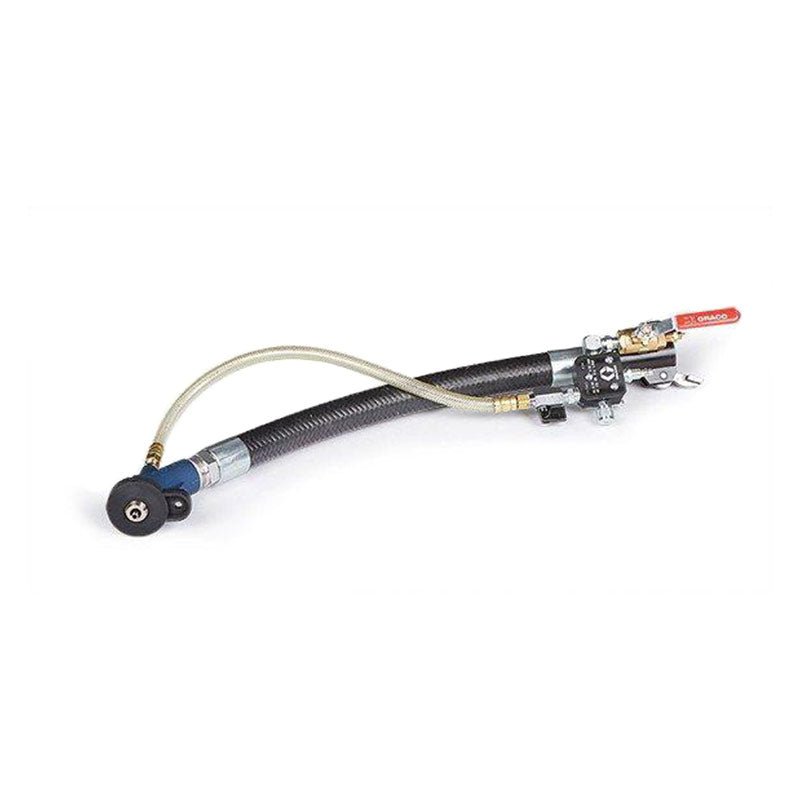

                      Flex Hose Applicator

                      • Best for heavily filled materials that easily pack out
                      • Includes Round Nozzle; provides a rough finish texture
                      • Simple design, easy to clean
                      • Order part number 24T947

                      Pole Applicator

                      • For hard to reach areas
                      • Best for heavily filled materials that easily pack out
                      • Includes Round Nozzle; provides a rough finish texture
                      • Simple design, easy to clean
                      • Order part number 24T946

                      HTX 680 Applicator

                      • Good for lighter materials that do not typically pack out
                      • Includes Round Pattern Nozzles; provides a medium round pattern texture finish
                      • Air mixed into fluid through multiple venturi ports provides a consistent pattern
                      • Gives a more controlled pattern for lightweight materials or high solids coatings
                      • Includes flat pattern discs - spreads the pattern out like a fan, giving a wider coverage area per pass
                      • Order part number 24U209

                      Large Capacity Hopper

                      • 95L hopper kit (25 gal)
                      • Ideal for materials that require more than 38 liter capacity, such as fireproofing
                      • Boost producitivty by minimising refills
                      • Easily connects to ToughTek M680a
                      • Easy to connect and manoeuvre
                      • Order part number 24W889
                      Maximum Working Pressure7 MPa, 70 bar
                      Maximum Air Inlet Pressure0.7 MPa, 7 bar
                      Minimum Inlet Air Flow (Typical)0.85 cubic meters per minute
                      Minimum Inlet Air Flow (Pump Only)0.06 cubic meters per minute per liter at 7 bar
                      Pressure Ratio (Fluid to Air)10:1
                      Air Motor Piston Diameter191 mm
                      Stroke Length120 mm
                      Lower Output686 cc per cycle
                      Flow Rate at 30 cycles per minute20.6 lpm
                      Flow Rate at 60 cycles per minute41.2 lpm
                      Air Inlet Size3/4 npt(f) (Chicago Fitting)
                      Fluid Inlet Size2 in. Cam Groove (Male)
                      Fluid Outlet Size1 npt(f) with a 1 in. Cam and Groove Fitting
                      Weight (without fluid)113 kg, (with 7.6 m of 25 mm hose and 3.0 m of 19 mm hose)
                      Sound Pressure118 dB(A)*
                      Sound Power118 dB(A)*
                      Dimensions
                      Height113 cm
                      Width70 cm
                      Depth (pump on cart only)81 cm
                      Deep (pump on cart with hopper)94 cm
                      Maximum Pump Speed, Do not exceed maximum recommended pump speed of fluid pump to prevent premature pump wear)
                      Spraying40 cycles per minute (typically less than 10 cycles per minute)
                      Flushing60–90 cycles per minute (only when pumping flushing fluid)
                      Wetted Parts
                      Entire SystemStainless steel, UHMWPE, nylon, plated steel, anodized aluminum, FX-75
                      PumpStainless steel, carbide, PTFE, UHMWPE, solvent-resistant o-rings
                      Hose KitsNylon core, plated carbon steel fittings, anodized aluminum, nitrile gaskets
