Features

Pole Guns

• are available in 3’ and 6’ configurations
• provide better spray control and less fatigue.
• Balanced design; no excessive weight at the end of pole

Heavy-duty extensions

• ideal for high-pressure spraying or pressure roller applications.
• Use with Contractor In-Line Valve and the CleanShot Shut-Off Valve to create different
• length pole guns
• Smaller diameter tube is lightweight and can be used for interior pressure rolling
• Ability to attach directly to an airless spray gun – order 45? adapter 224399 for increased comfort while rolling

Airless Tip Extensions

• can be attached directly to an airless gun making them ideal for spraying ceilings, overhangs and decks.

CleanShot Shut-Off Valve

• Unique needle valve shuts fluid off at the tip for a clean pattern
• no spitting 180? tip swivel provides versatility when spraying walls and ceilings
• Pressure-actuated – operates at a minimum of 700 psi (4.8 MPa, 48 bar)
• can be attached directly to any extension and provides a clean fluid shutoff at the tip – no spitting.

Contractor In-Line Valve

• Can be used with other extended reach tools such as Heavy-Duty Extensions and Telescoping Extensions for Pressure Rolling
• Provides a straight connection to extensions for the most optimal rolling position
• In-handle paint filter and built-in swivel connection for top spraying performance
• Ability to rotate 180? allows spraying in any position

Graco EvenFlow Pressure Roller Frames

Overview

Transforms the paint sprayer into a rolling system for increased versatility. Using the roller kit is four times faster than a traditional roller while eliminating the mess of a roller tray. Attaches directly to the spray gun. Simply trigger the gun for more paint and keep rolling.

Range

• 244271 EvenFlow Pressure Roller Frame, 9 in (230 mm) with 7/8 in (22 mm) thread
• 244623​ EvenFlow Roller Frame, 9 in (230 mm) with 1/8 npt thread
• 240055​ Geosperse Roller Frame, 12 in (305 mm​) with 7/8 in (22 mm) thread

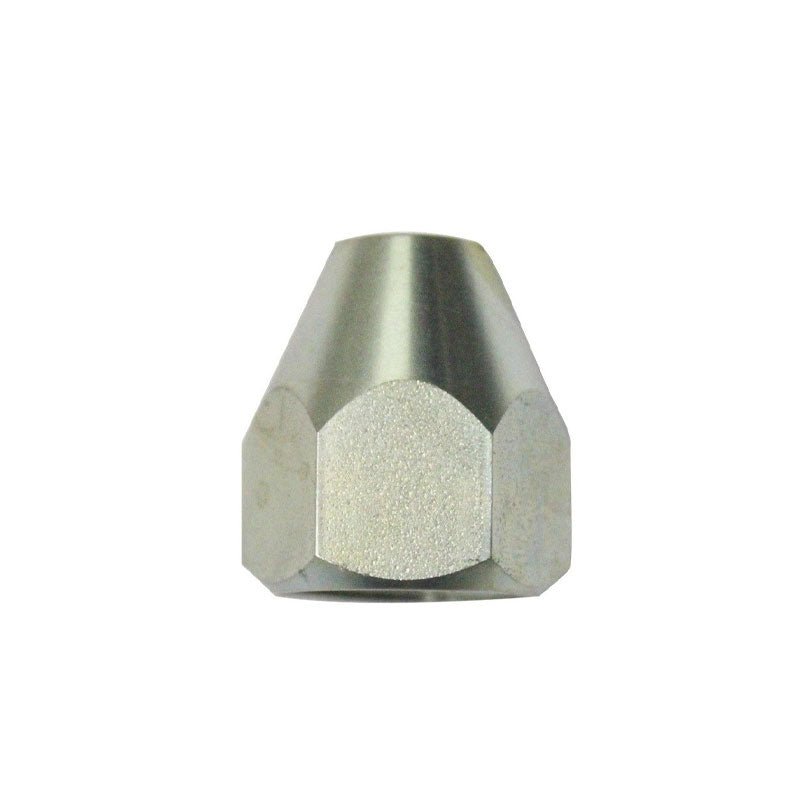

• 224398 Adapter For 244623 Roller Frame to Heavy-Duty Extension
• 224399 45 Degree Adapter

Data Sheet
Graco Pressure Roller Brochure
Manual
Graco-Pressure-Roller-Frame-Manual
Brochure
GO Brochure Graco Airless Accessories 344386EN-J

Specifications

Part Number 244271
