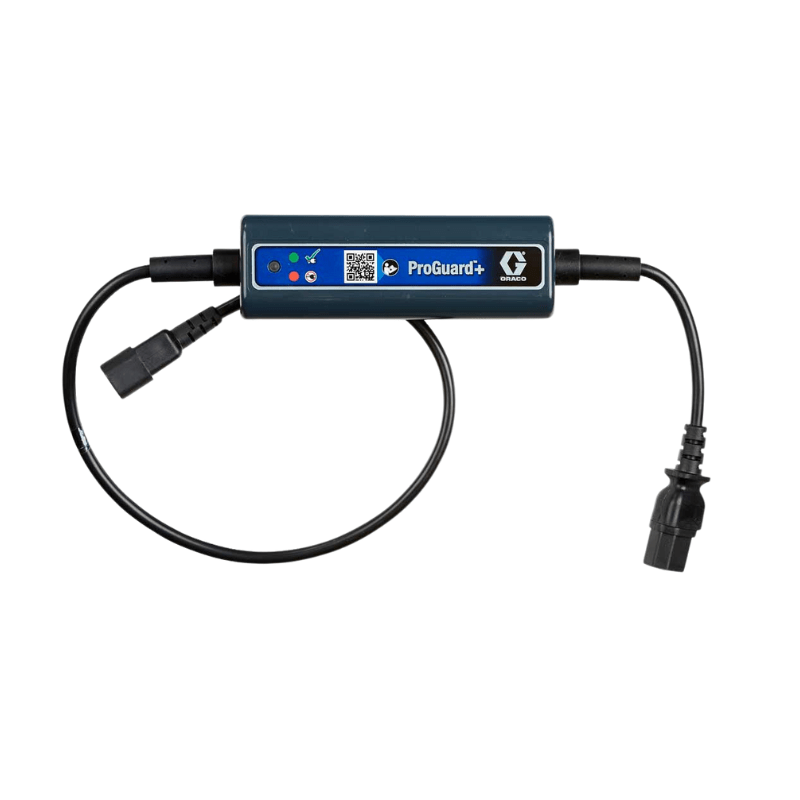

GRACO ProGuard+ Electrical Surge Protection 24W755
SKU: 24W755
$326.70
GRACO ProGuard+ Electrical Surge Protection 24W755
- Automatic Voltage Switch
- For the protection of Graco electrical equipment against voltage fluctuations
- ProGuard+ is designed to protect your 240V Graco equipment from damage from inconsistent electrical power.
- ProGuard+ constantly monitors the supply voltage and disconnects the equipment from the power source to reduce the risk of damage to the equipment from excessive voltage fluctuations (high or low).
- It automatically resets after a one minute delay when acceptable power is available.
Specifications
| ProGuard+ | |
| Nominal voltage |
50/60Hz
|
| Current Rating |
10Amps
|
| High Voltage Disconnect |
280VAC
|
| Low Voltage Disconnect |
170VAC
|
| Reset Time |
60 seconds
|
| Weight |
400g
|
| Dimensions |
150 x 50 x 45 mm
|
| Operating temperature range |
–34° to 46° C
|
| Plug Configuration | |
| 24W755, power in (from power source) |
IEC-320-C14
|
| 24W755, power out (to equipment) |
IEC-320-C13
|
| 24W090, power in (from power source) |
CEE 7/7 Plug
|
| 24W090, power out (to equipment) |
CEE 7/7 Socket
|
| Replacement Danger and Warning labels, tags, and cards are available at no cost. | |
