Enquire For Price
- Double Acting
- Pumps fluid in both directions of the stroke for increased flows
- Provides continuous flow operation for better pump efficiencies
- 2.5 inch pump stroke for high flow rates
- Self-Priming
- Anti-locking so air cannot get trapped inside air motor and stall pump
- Pump can free itself of air and resume pumping without any adjustments
- Ease of Serviceability
- Simple pump design for quick seals replacement
- Pumps are installed vertically for a reduced footprint •Minimum number of tools required
- Environmentally friendly
- Gas recovery kit available for zero emissions!
- Recoverable exhaust gas with kit
- Less fugitive emissions
| Technical Specifications | |
| TYPE | Pneumatic Chemical Pump |
| AIR INLET THREAD GENDER | Male |
| AIR INLET THREAD TYPE | NPT |
| FLUID INLET TYPE | NPT, NPT |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | NF4 |
| MODEL | Python |
| SERIES | XL-DA25 |
| PLUNGER ROD COATING | Chromex |
| APPROVALS | CE |

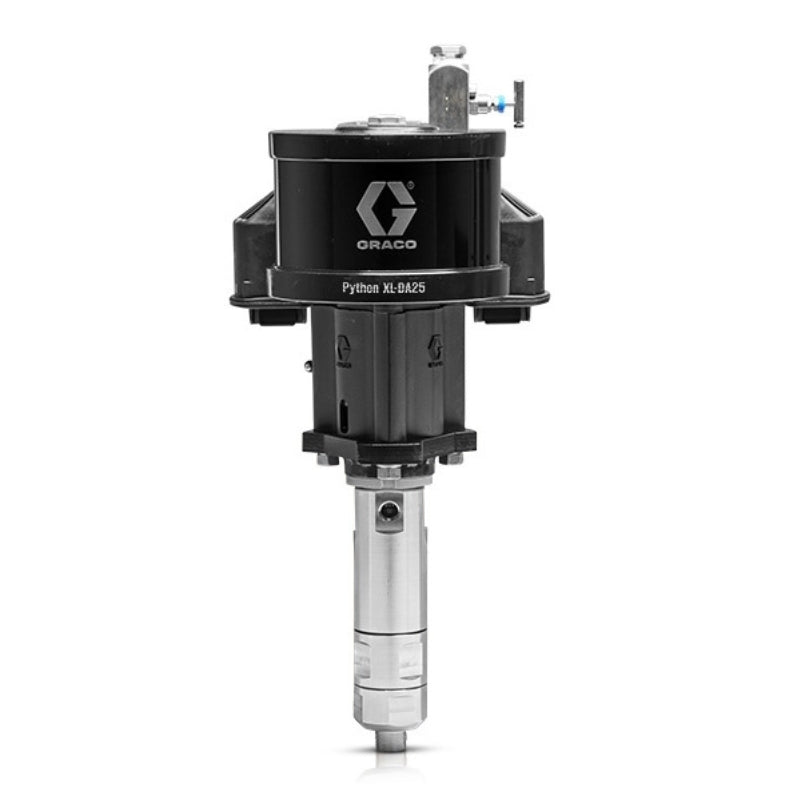

Graco Python XL-DA25 Pump with Chromex Coated Plunger - CE Approved
SKU: A22601Graco Python XL-DA25 Pump with Chromex Coated Plunger - CE Approved
Regular price
$18,729.00 AUD
Sale price
$18,729.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Inclusive of GST.
Shipping calculated at checkout.
Other payment options
Couldn't load pickup availability
At a Glance
The Python XL-DA25 is a product line extension to the current Python XL-DA product family so it uses the same double-acting technology and can achieve nearly double the flow rate of a similar single-acting pump. The Python XL-DA25 comes with a 2.5 in. pump stroke covering a wide range of flow rates. These pumps operate on low gas or compressed air pressures and utilize the same Merkur® air motor used on other Graco products. The wetted parts are all 316 stainless steel and the air motor comes with a Graco proprietary coating suitable for off-shore applications.
- Double Acting
- Pumps fluid in both directions of the stroke for increased flows
- Provides continuous flow operation for better pump efficiencies
- 2.5 inch pump stroke for high flow rates
- Self-Priming
- Anti-locking so air cannot get trapped inside air motor and stall pump
- Pump can free itself of air and resume pumping without any adjustments
- Ease of Serviceability
- Simple pump design for quick seals replacement
- Pumps are installed vertically for a reduced footprint •Minimum number of tools required
- Environmentally friendly
- Gas recovery kit available for zero emissions!
- Recoverable exhaust gas with kit
- Less fugitive emissions
| Technical Specifications | |
| TYPE | Pneumatic Chemical Pump |
| AIR INLET THREAD GENDER | Male |
| AIR INLET THREAD TYPE | NPT |
| FLUID INLET TYPE | NPT, NPT |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | NF4 |
| MODEL | Python |
| SERIES | XL-DA25 |
| PLUNGER ROD COATING | Chromex |
| APPROVALS | CE |
