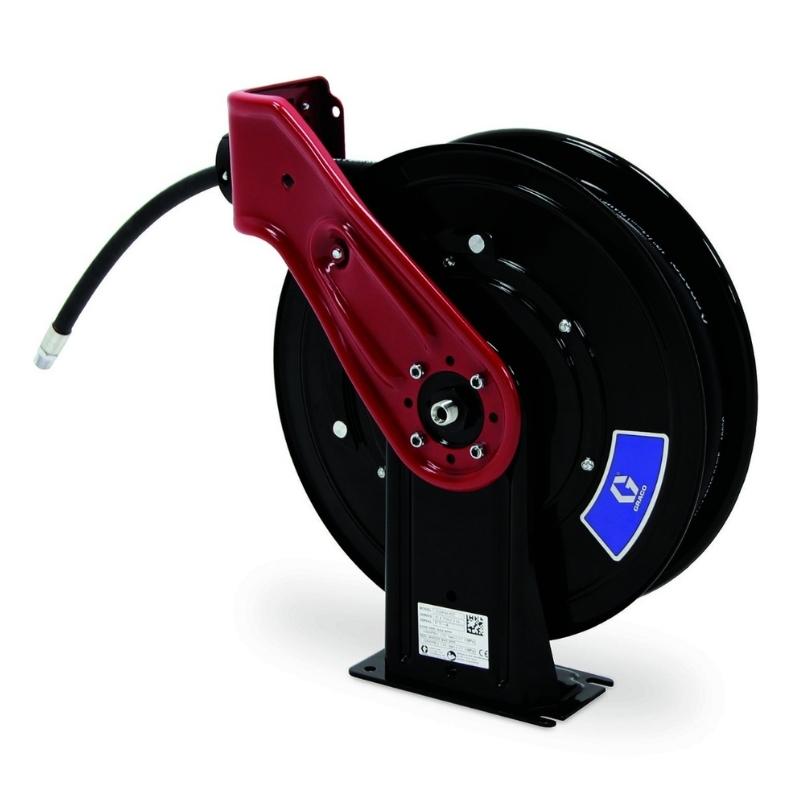

GRACO SDX 20 15m 1/2" Hose Reels for Oil

SKU: SDM65A

GRACO SDX 20 15m 1/2" Hose Reels for Oil

$1,540.00 AUD
$1,540.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Arm Color

Other payment options

View full details
GRACO SDX 20 15m 1/2

GRACO SDX 20 15m 1/2" Hose Reels for Oil

$1,540.00 AUD
$1,540.00 AUD
Save $0
Sold out

Details

With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.

Typical Applications:

  • Car dealerships
  • Light-/medium-duty truck dealers
  • Fleet maintenance
  • Public works garages
  • Construction vehicle maintenance
  • Light-utility service trucks

Compatible For:

  • Oil
  • Gear Lube
  • ATF

Features

  • Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
  • Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look.
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Adjustable Arm - Easily change the arm position for your application
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
  • Durable Finish - Baked-on enamel finish protects reel from corrosion

    • Graco SDX 20 15m 1/2" Hose Reels for Oil

    Overview

    Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • GO Manual Graco SDX XDX Hose Reels 3A8626EN-D
      • Graco SDX Series Hose Reels Data Sheet - GO Industrial

      Specifications

      COLOR White, Blue Metallic, Red, Black, Yellow
      HOSE INSIDE DIAMETER (IN) 1/2
      HOSE INSIDE DIAMETER (MM) 12.7
      HOSE LENGTH (FT) 50
      HOSE LENGTH (M) 15
      INLET SIZE (IN) 1/2
      INLET SIZE (MM) 12.7
      INLET THREAD TYPE NPSM
      MAXIMUM TEMPERATURE (°C) 87
      MAXIMUM TEMPERATURE (°F) 190
      MAXIMUM WORKING PRESSURE (PSI) 2000
      MINIMUM TEMPERATURE (°C) -28
      MINIMUM TEMPERATURE (°F) -20
      MOUNT LOCATION Overhead Mount
      OUTLET SIZE (IN) 1/2
      OUTLET SIZE (MM) 12.7
      OUTLET THREAD TYPE NPT
      OVERALL HEIGHT (IN) 21.8
      OVERALL HEIGHT (MM) 554
      OVERALL LENGTH (IN) 19.2
      OVERALL LENGTH (MM) 487
      OVERALL WIDTH (IN) 7
      OVERALL WIDTH (MM) 177
      SERIES 20
      WETTED PARTS Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber
      APPLICATION Oil
      TYPE Spring-Rewind Reel
      RECOMMENDED ENVIRONMENT Indoor, Limited Outdoor
      FRAME TYPE Single Pedestal
      REEL THREAD TYPE NPT
      INLET THREAD GENDER Male
      OUTLET THREAD GENDER Male
      RECOMMENDED FLUID TYPE Oil
      HOSE REEL TYPE Reel with Hose
      MODEL SDX

        Features

      • Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
      • Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look.
      • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
      • Adjustable Arm - Easily change the arm position for your application
      • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
      • Durable Finish - Baked-on enamel finish protects reel from corrosion
