The Silver Plus Gun is known for its durability, long life, spraying performance and comfortable design. It is the preferred gun for high pressure applications. This Silver Plus gun includes a 2 finger trigger and a RAC 5 517 SwitchTip and Guard.

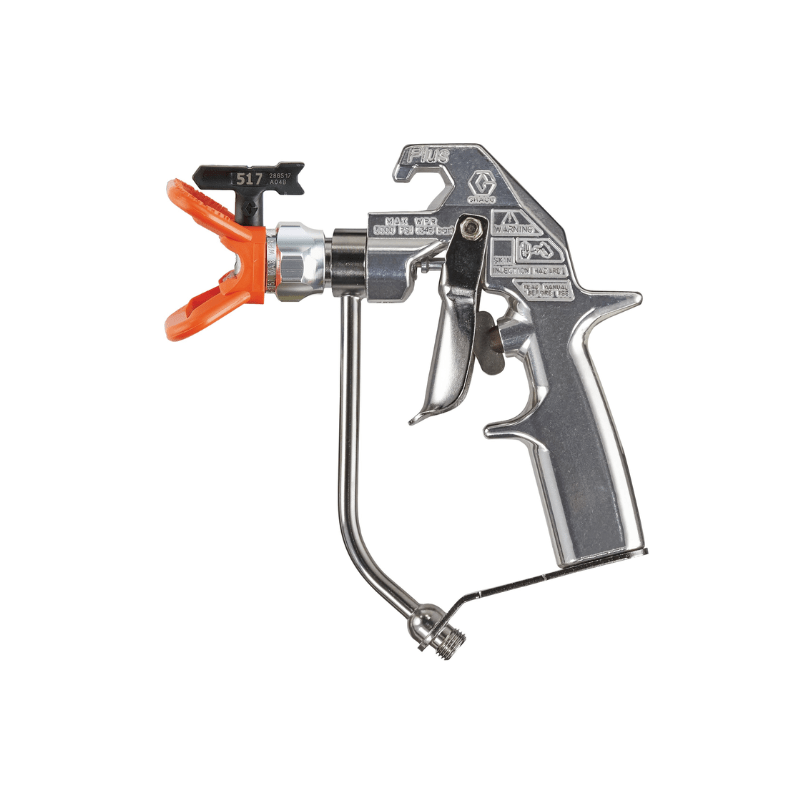

GRACO Silver Plus Airless Spray Gun
SKU 243283
$970.00
Tax included. Shipping calculated at checkout.
Quantity
In Stock
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Features
Features
- Rugged Design
- Durable forged aluminum withstands harsh work environments
- Lighter weight than competitive guns Polished body is easy to clean
- Exclusive Needle Design
- Factory set needle needs no trigger adjustments
- Guaranteed for life against breakage
- Maximum performance and long life
- Stainless Steel Fluid Tube
- Fluid flows directly to the tip through the gun fluid tube
- Provides the ability to spray heavier materials
- Including high solid coatings and mastics
- Optional Light Viscosity Needle Kit
- Provides faster shut-off to reduce spitting of light viscosity material
- Included in Silver Plus Gun (Part No. 235462), or as an optional Needle Kit (Part No. 235475)
Specifications
| Air Inlet Size (cm) | 0.635 |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Body Material | Aluminum |
| Compatible Material | Paint, Coating |
| Component A Inlet Size (cm) | 0.635 |
| Component A Inlet Size (in) | 1/4 |
| Component A Inlet Size (mm) | 6.35 |
| Component A Inlet Thread Type | NPSM |
| Component Type | Single Component |
| Fluid Orifice Size (cm) | 0.229 |
| Fluid Orifice Size (in) | 0.090 |
| Fluid Orifice Size (mm) | 2.29 |
| For Use With | High Pressure Application |
| Gun Activation | Manual |
| Gun Type | Airless Gun |
| Gun Weight (g) | 510 |
| Gun Weight (kg) | 0.51 |
| Gun Weight (lb) | 1.125 |
| Gun Weight (oz) | 18 |
| Includes | RAC 5 517 SwitchTip, RAC 5 HandTite Guard |
| Maximum Fluid Pressure (bar) | 345 |
| Maximum Fluid Pressure (kPa) | 34500 |
| Maximum Fluid Pressure (psi) | 5000 |
| Maximum Fluid Temperature (°C) | 50 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | Silver Plus |
| Purge Method | Liquid |
| Series | Airless Spray Gun |
| Trigger Lock | Locking |
| Trigger Type | Mechanical |
| Type | Spray Gun |
| Product Type | Spray Gun |
| Spray Type | Airless |
| Gun Included | 1 |
| Applicator Type | Manual |
| Wetted Parts | Stainless Steel, Polyethylene, Polyurethane, Nylon, PTFE |
| Sound Power Level (dB(A)) | 87 |
| Sound Pressure Level (dB(A)) | 78 |
| Maximum Fluid Pressure (MPa) | 34.5 |
