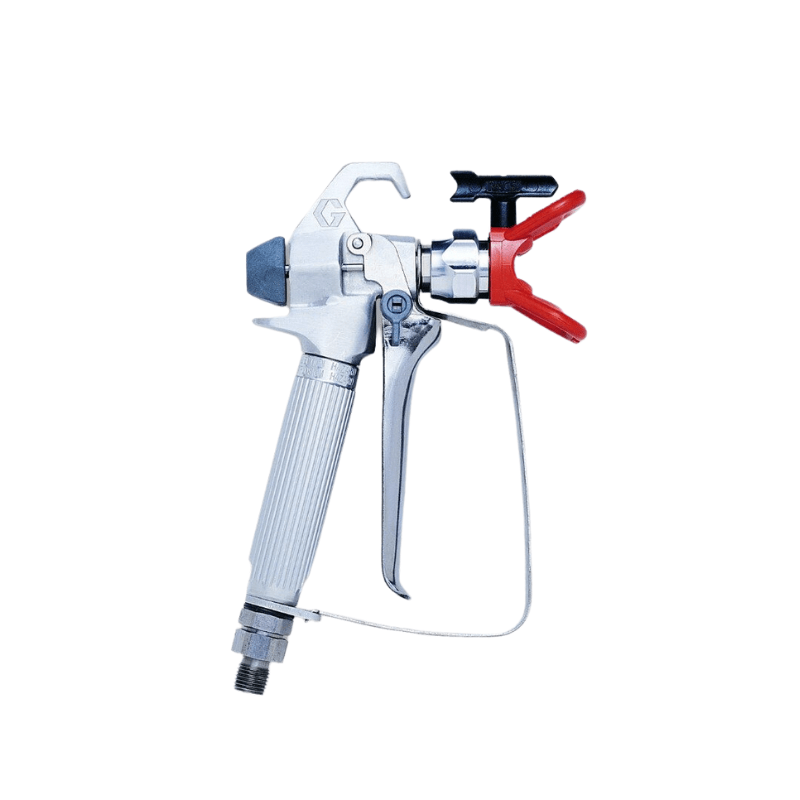

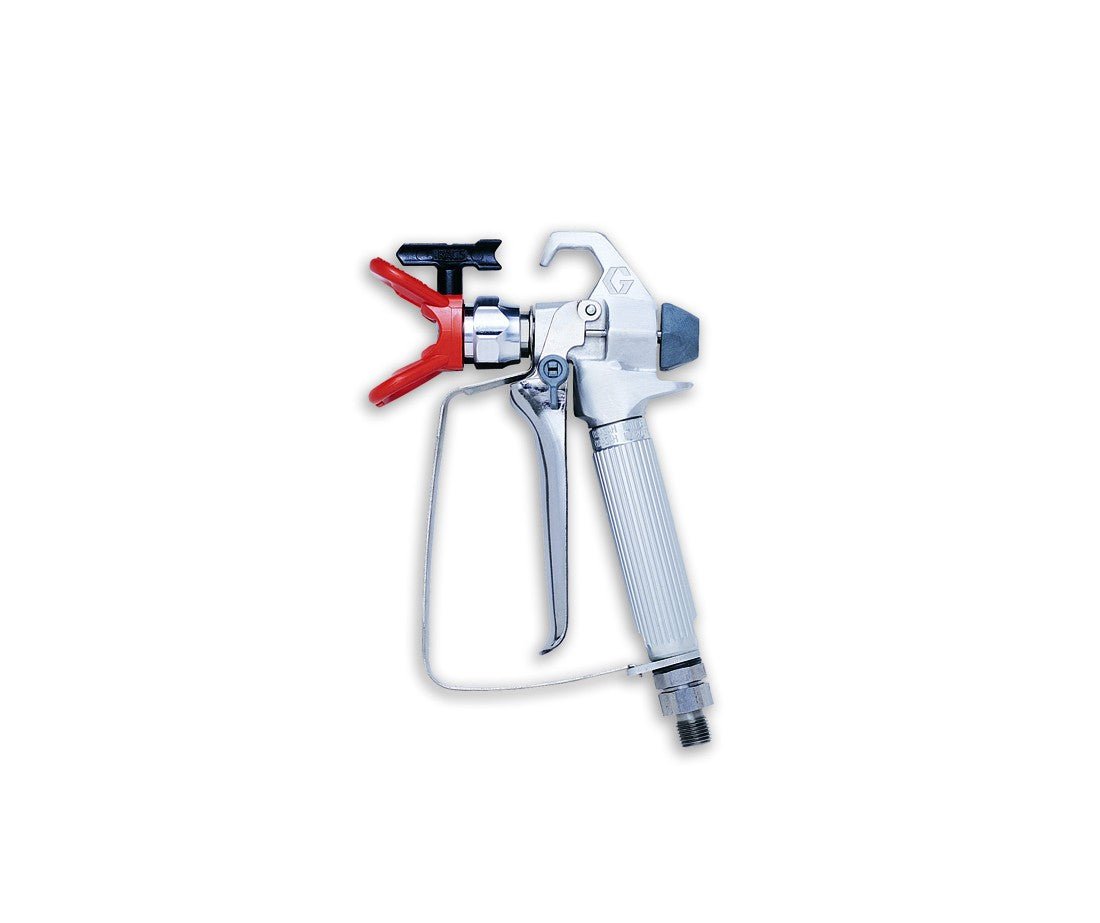

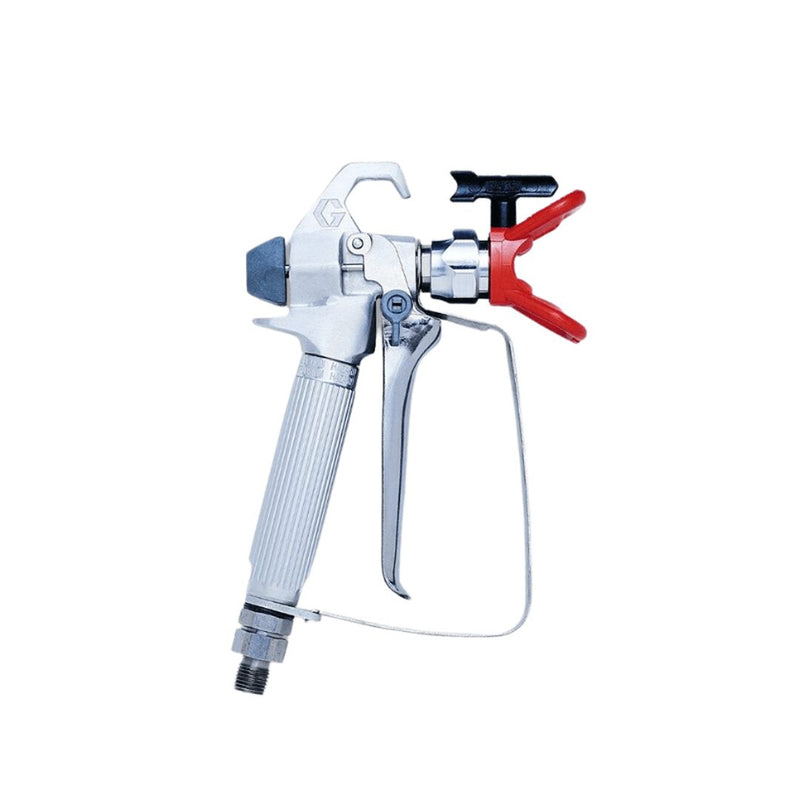

Graco Spray Gun Airless SG3 includes RAC 5 515 243012
SKU: 243012Graco Spray Gun Airless SG3 includes RAC 5 515 243012
Other payment options
The Basics
Use with any Magnum airless paint sprayer. Built-in hose swivel to reduce hose twists. Ideal for homeowners and diyer's for spraying a variety of coatings including primers, stains, varnishes and latex. Includes 515 spray tip, 60 mesh gun filter and hand-tight guard
Graco's premium, aluminum spray gun is designed to deliver performance, be the longest lasting and most reliable spray gun on the market. The well-balanced and lightweight full 4-finger trigger allows for a comfortable spraying experience. The SG3 spray gun comes with a built-in hose swivel to help reduce hose twists.
- Built-in hose swivel provides for easy gun movement and reduces hose twisting
- Full 4-finger trigger with light, smooth pull provides control and comfort
- Thumb engaged safety lock allows you to lock the handle when not spraying for safety
- Maximum operating pressure of 3,600 psi
- Replaceable in-handle paint filter reduces tip clogging and improves the finish
- Replaceable gun needle keeps maintenance simple
- For use with Magnum and Graco paint sprayers
- Includes built-in hose swivel, 515 spray tip, 60 mesh gun filter and tip guard
| COMPATIBLE MATERIAL | Water Based Paint, Solventborne Paints |
|---|---|
| COMPONENT TYPE | Single Component |
| FLUID ORIFICE SIZE (CM) | 0.318 |
| FLUID ORIFICE SIZE (IN) | 0.125 |
| FLUID ORIFICE SIZE (MM) | 3.17 |
| FOR USE WITH | Project Painter Plus, X5, X7, ProX17 Stand, ProX17 Cart, ProX19 Stand, ProX21 Stand, Magnum A30 ProPlus, Magnum A45 ProPlus, Magnum A60 ProPlus, Magnum A80 ProPlus, Magnum A100 ProPlus, Magnum ProS19 ProPlus, Magnum ProS21 ProPlus |
| GUN ACTIVATION | Manual |
| GUN TYPE | Airless Gun |
| GUN WEIGHT (OZ) | 22 |
| INCLUDES | TrueAirless 515 Spray Tip, Spray Tip Guard, Smooth Glide Swivel |
| MAXIMUM FLUID PRESSURE (BAR) | 248 |
| MAXIMUM FLUID PRESSURE (KPA) | 24800 |
| MAXIMUM FLUID PRESSURE (PSI) | 3600 |
| MODEL | SG3 |
| OVERALL HEIGHT (CM) | 20.32 |
| OVERALL HEIGHT (IN) | 8 |
| OVERALL HEIGHT (MM) | 203.2 |
| OVERALL LENGTH (CM) | 4.445 |
| OVERALL LENGTH (IN) | 1.75 |
| OVERALL LENGTH (MM) | 44.45 |
| OVERALL WIDTH (CM) | 12.7 |
| OVERALL WIDTH (IN) | 5 |
| OVERALL WIDTH (MM) | 127 |
| PURGE METHOD | Liquid |
| SERIES | Airless Gun |
| TRIGGER LOCK | Locking |
| TRIGGER TYPE | Four-Finger |
| TYPE | Spray Gun |
| MAXIMUM FLUID PRESSURE (MPA) | 24.8 |
