GRACO Spray Gun Airless Silver Plus Quick Start Kit 287823

SKU: 287823

$739.20

GRACO Spray Gun Airless Silver Plus Quick Start Kit 287823

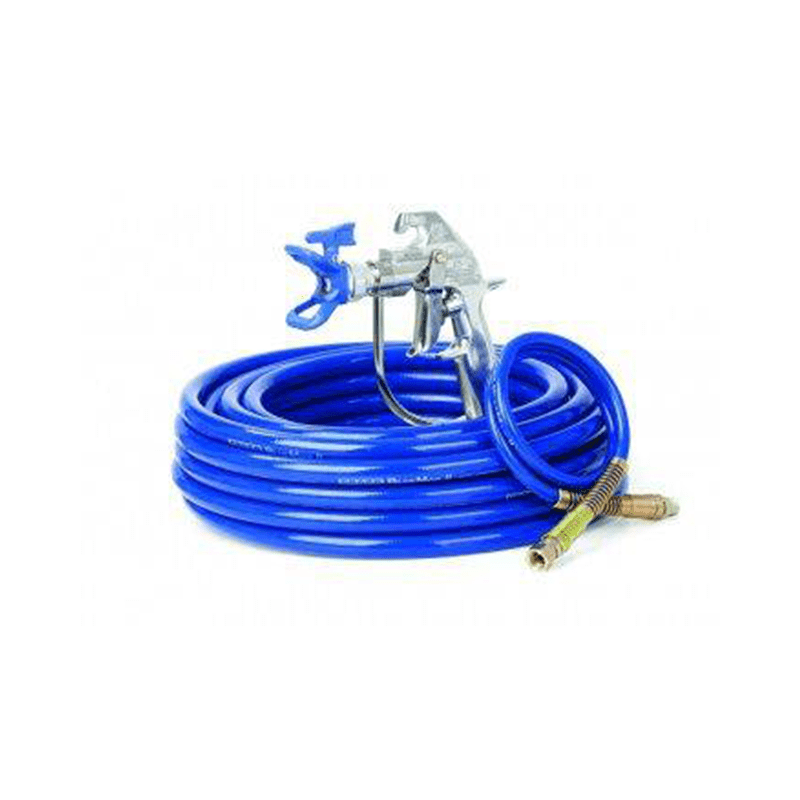

  • Manual Airless Spray Gun, Tip and Hose Kit
  • Known for its durability, long life, spraying performance, and comfortable design, it is the preferred gun for high pressure applications
  • Graco's Silver Plus Gun is known for its durability, long life, spraying performance, and comfortable design. It is the preferred gun for high pressure applications.

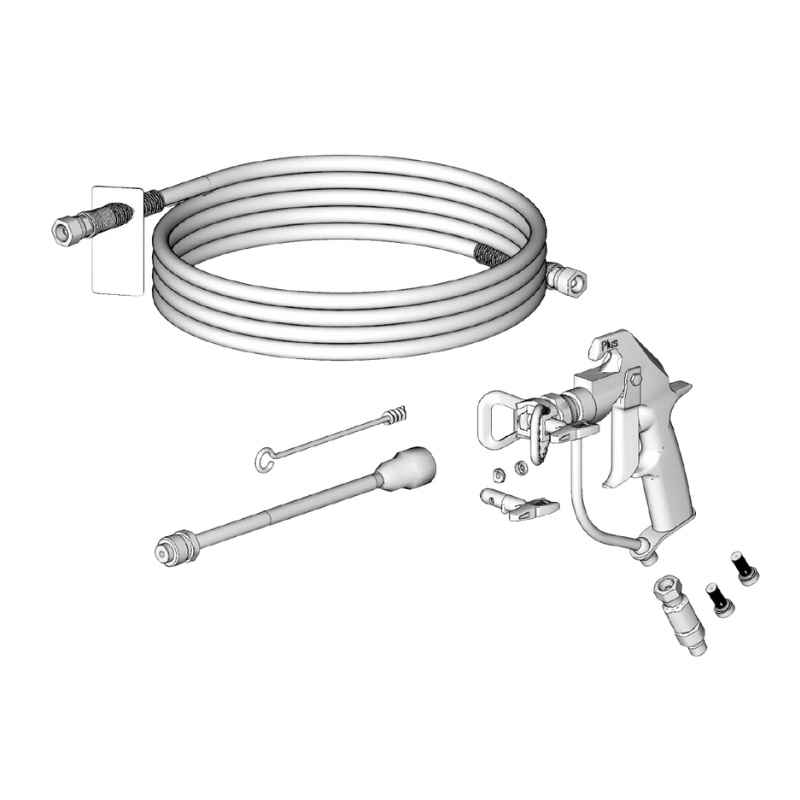

Includes

  • 1 x 214698 HOSE, CPLD, 3/16 in. x 25 ft

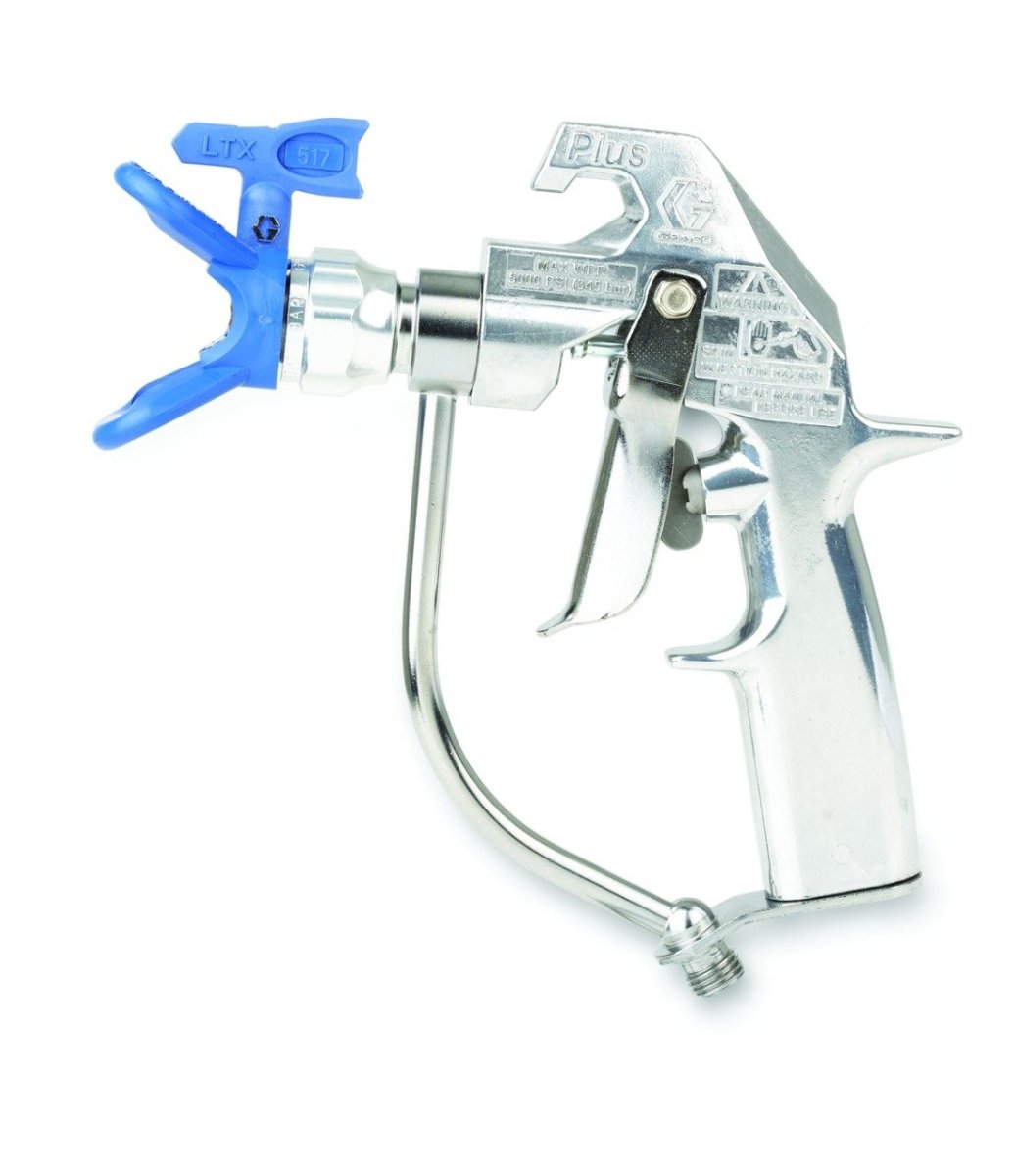

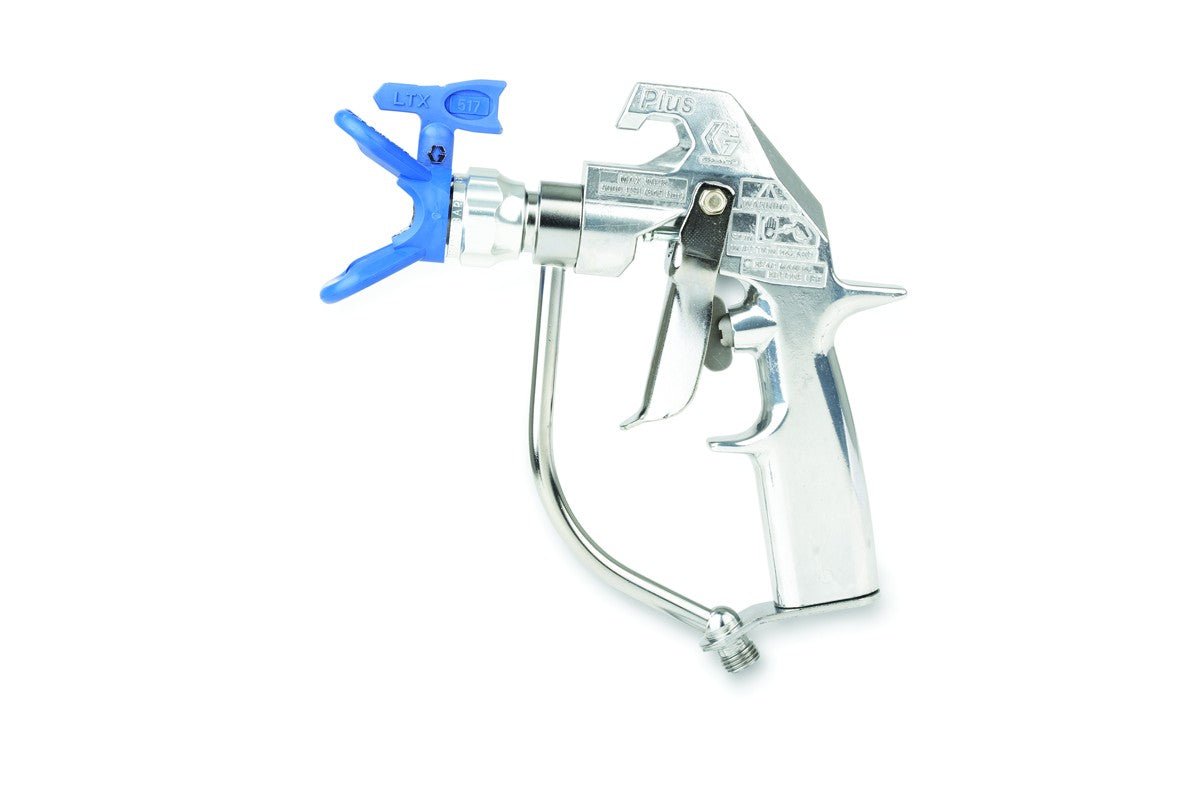

  • 1 x 249941 GUN, Silver Plus, FFT 210
  • 1 x 210500 FILTER, in-line
  • 1 x 287019 TIP, extension, 10 in.
  • 1 x FFT312 TIP, spray, FF, RAC X (312)
  • 1 x 248936 KIT, accessory, RAC X
  • 1 x 119799 BRUSH, cleaning
  • 2 x 238561 100 mesh filter
  • 1 x 222385 TAG, warning (not shown)

      Product Highlights:

      • Reverse-A-Clean tip design to reduce downtime caused by frequent tip plugging
      • 5000 psi (345 bar, 34.5 Mpa) fluid rating for spraying the toughest materials
      • SST wetted parts for material compatibility

        Features

        • Lightweight, Rugged Design - Forged aluminium is durable to withstand harsh work environments
        • Exclusive needle design - no trigger adjustments needed
        • 2-Finger trigger design and handle is form fitted for less fatigue
        • Stainless steel fluid tube - ability to spray heavier materials such as high solid coatings
        • RAC X Switchtip and Handtite guard provides exceptional life, pattern and finish

          Downloads

          DATA SHEET
          MANUAL


          Specifications

          Silver and Flex Airless Spray Guns
          Metric
          Maximum pressure
          Models, page 3
          Wetted parts
          Stainless steel, Polyethylene, Polyurethane, Nylon, PTFE
          Weight
          510 g
          Inlet
          1/4 npsm(m)
          Maximum material temperature
          50°C
          *Sound power
          87dB(A)
          *Sound pressure
          78dB(A)
          *Measured while spraying water-base paint, specific gravity 1.36, using a 517 tip at 3000 psi (207 bar, 20.7MPa) per ISO-3744.
