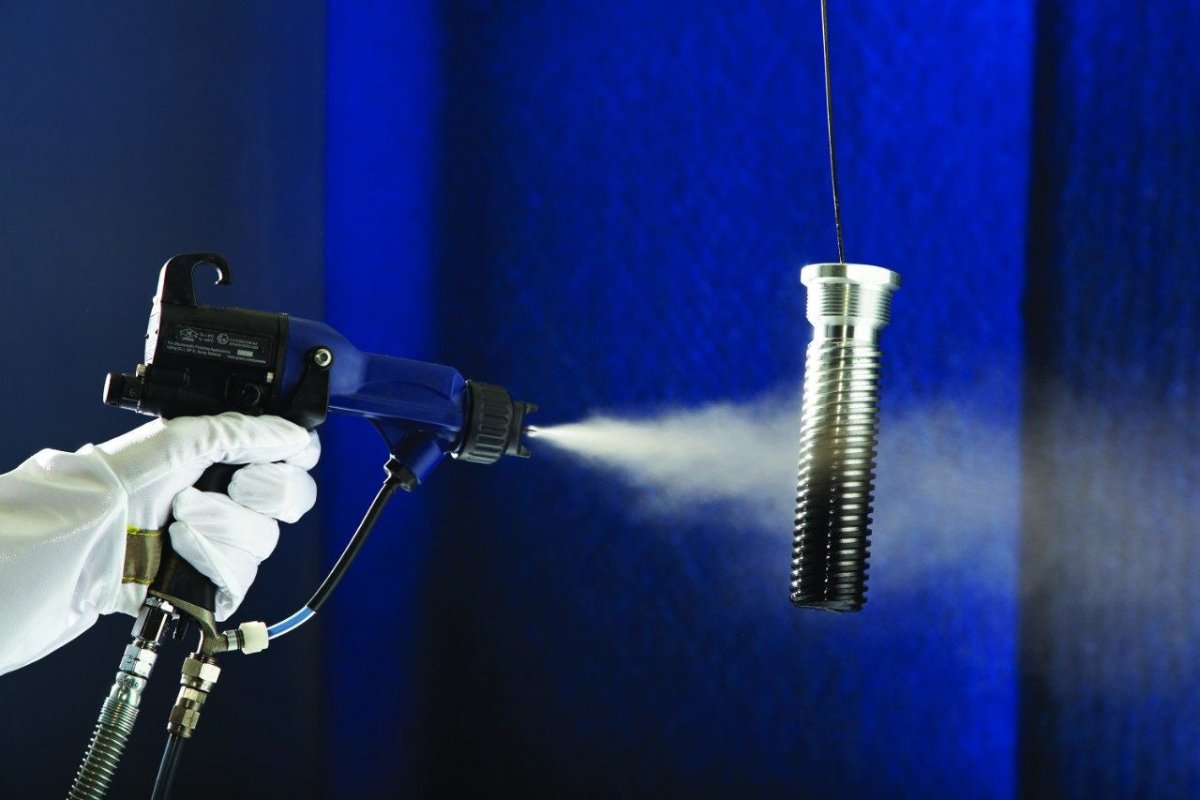

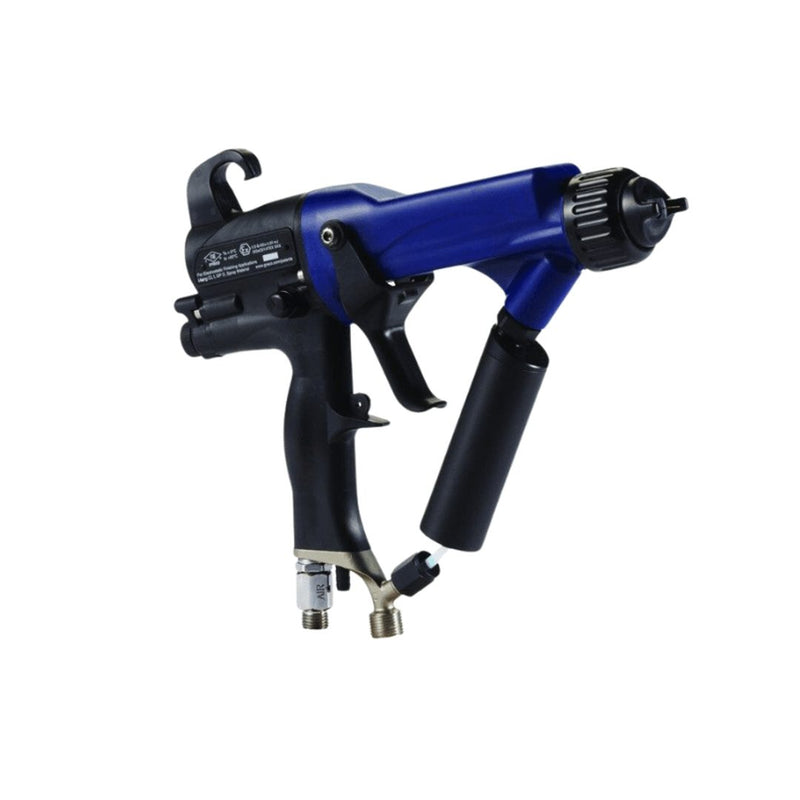

GRACO Spray Gun Pro Xp85 and Xp85 AA Electrostatic Range

SKU: L85T10

$7,958.40

GRACO Spray Gun Pro Xp85 and Xp85 AA Electrostatic Range

  • Graco Electrostatic Air Spray Guns Deliver Expert Performance

Graco Pro Xp85 and Xp85 AA - Summary

  • Pro Xp85 kV air spray gun maximises transfer efficiency and lowers cost of ownership
  • The ergonomic design and efficiency of the Pro Xp85 makes it the perfect solution for your application - saving you money and improving quality. Pro Xp85 Air Spray electrostatic gun line includes Standard, Smart and High Conductivity models.
  • Pro Xp85 kV air-assist gun maximizes transfer efficiency and lowers cost of ownership
  • Our improved tip line delivers a high quality finish for a variety of applications. Plus, the pre-orifice tips atomize paints for fine finish applications. Pro Xp85 Air-Assist gun line includes Standard and Smart models.

    Graco Pro Xp85 and Xp85 AA - Features

    • High quality spray performance with a one-piece aircap and a variety of tips
    • Electrostatic guns are easier to adjust with larger control knobs
    • Alternator speed indicator light ensures your turbine speed is running at the correct level
    • Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier
    • Increase transfer efficiency up to 10%
    • Made in the USA
    • Internal power supply reduces operator fatigue with no heavy cords to slow you done
    • Rugged, dependable design supported by a three year warranty
    • Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements

              Downloads

                DATA SHEET
                MANUAL
                MANUAL - ROUND SPRAY KIT
                VIDEO - ANIMATION
                VIDEO - OVERVIEW
                VIDEO - CONTROLS OVERVIEW

                VIDEO - ELECTROSTATIC GUN BASICS

                VIDEO - TRANSFER EFFICIENCY
                VIDEO - SET UP AND PRIME
                VIDEO - PARTS
                VIDEO - DISASSEMBLY
                VIDEO - ASSEMBLY

                Specifications - Graco Pro Xp85

                Maximum Working Fluid Pressure
                0.7 MPa, 7.0 bar
                Maximum Working Air Pressure
                0.7 MPa, 7.0 bar
                Minimum Air Pressure at Gun Inlet
                0.32 MPa, 3.2 bar
                Maximum Fluid Operating Temperature
                48°C
                Paint Resistivity Range
                3 megohm/cm to infinity. For a table of electrostatic results at different resistance levels, see instruction manual..
                Air Inlet Fitting
                1/4 npsm(m) left-hand thread
                Fluid Inlet Fitting
                3/8 npsm(m)
                Output Voltage
                Pro Xp40 Models: 40 kVPro Xp60 Models: 60 kVPro Xp85 Models: 85 kV
                Maximum Current Draw
                125 microamperes
                Sound Power (measured per ISO Standard 9216)
                at 0.28 MPa, 2.8 bar: 90.4 dB(A)at 0.7 MPa, 7.0 bar: 105.4 dB(A)
                Sound Pressure (measured 1 m from gun)
                at 0.28 MPa, 2.8 bar: 87.0 dB(A) at 0.7 MPa, 7.0 bar: 99.0 dB(A)
                Wetted Parts
                PEEK, UHMWPE, FEP, PTFE, acetal, nylon, polyethylene



                Specifications - Graco Pro Xp85 AA

                Maximum Working Fluid Pressure
                21 MPa, 210 bar
                Maximum Working Air Pressure
                0.7 MPa, 7.0 bar
                Minimum Air Pressure at Gun Inlet
                0.32 MPa, 3.2 bar
                Maximum Fluid Operating Temperature
                48°C
                Paint Resistivity Range
                3 megohm/cm to infinity
                Air Inlet Fitting
                1/4 npsm(m) left-hand thread
                Fluid Inlet Fitting
                1/4–18 npsm(m)
                Output Voltage
                Pro Xp60 Models: 60 kV. Pro Xp85 Models: 85 kV
                Maximum Current Draw
                125 microamperes
                Sound Power (measured per ISO Standard 9216)
                at 0.28 MPa, 2.8 bar: 88.9 dB(A) at 0.7 MPa, 7.0 bar: 99.7 dB(A)
                Sound Pressure (measured 1 m from gun)
                at 0.28 MPa, 2.8 bar: 86.0 dB(A) at 0.7 MPa, 7.0 bar: 95.0 dB(A)
                Wetted Parts
                PEEK, UHMWPE, FEP, PTFE, acetal, nylon, polyethylene
