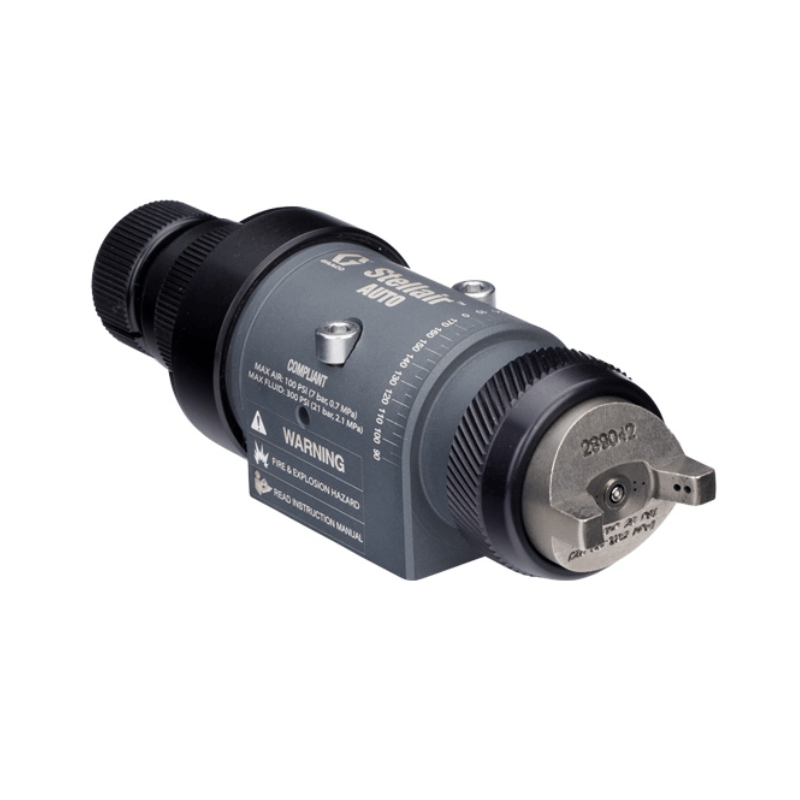

Graco Stellair Automatic Air Spray Gun Compliant 25F180
  • Graco Stellair Automatic Air Spray Gun Compliant 25F180
1 1

GRACO Stellair Automatic Air Spray Compliant Gun

SKU: 25F180

GRACO Stellair Automatic Air Spray Compliant Gun

$1,705.00 AUD
$1,705.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.

Other payment options

View full details
Graco Stellair Automatic Air Spray Gun Compliant 25F180

GRACO Stellair Automatic Air Spray Compliant Gun

$1,705.00 AUD
$1,705.00 AUD
Save $0
Sold out

Features

  • The compliant air spray reduces bounce back and overspray, while delivering a high finish quality and transfer efficiency.
  • General industry air caps and nozzles produce a uniform, high quality spray pattern with a low atomising pressure.
  • The patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
  • The one piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
  • Its small and light size does not weigh down or wear out robot arms, reciprocators or flat line machines.
  • The direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.

    • Graco Stellair Automatic Air Spray Compliant Gun

    Overview

    The compliant air spray gun produces stellar results for general industry applications using robots, reciprocators, flat line machines or other automated finishing technologies.

    The automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • Graco Manual Instruction Stellair Auto Air Spray Gun 407194EN-D
    • Graco Brochure Stellair Automatic Air Spray Guns for Liquid Finishing 345208EN-A

    Specifications

    BODY MATERIAL Metal
    COMPATIBLE MATERIAL Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stains, UV Coating, Waterborne
    FLUID ORIFICE SIZE (IN) 0.070
    FLUID ORIFICE SIZE (MM) 1.8
    GUN TYPE Compliant Gun
    GUN WEIGHT (G) 430
    GUN WEIGHT (LB) 1
    MAXIMUM AIR PRESSURE (BAR) 7
    MAXIMUM AIR PRESSURE (PSI) 100
    MAXIMUM FLUID TEMPERATURE (°C) 49
    MAXIMUM FLUID TEMPERATURE (°F) 120
    MINIMUM AIR INLET PRESSURE (BAR) 3.4
    MINIMUM AIR INLET PRESSURE (PSI) 50
    OVERALL HEIGHT (IN) 1.9
    OVERALL HEIGHT (MM) 48.3
    OVERALL LENGTH (IN) 5.10
    OVERALL LENGTH (MM) 129.5
    OVERALL WIDTH (IN) 1.63
    OVERALL WIDTH (MM) 41.4
    APPLICATION General
    TYPE Auto Gun
    APPLICATOR TYPE Automatic
    NEEDLE TIP MATERIAL PEEK
    FLUID ADJUSTMENT KNOB N/A
    SOUND POWER LEVEL (DB(A)) 87.47
    SOUND PRESSURE LEVEL (DB(A)) 77.56
    MAXIMUM FLUID WORKING PRESSURE (PSI) 300
    MAXIMUM FLUID WORKING PRESSURE (MPA) 2.1
    MAXIMUM FLUID WORKING PRESSURE (BAR) 21
    MAXIMUM FLOW RATE (OZ/MIN) 20
    MAXIMUM AIR PRESSURE (MPA) 0.7
    MINIMUM AIR INLET PRESSURE (MPA) 0.34
    GUN MODEL Stellair
    MANIFOLD TYPE Not Included
    NOZZLE SIZE (IN) 0.070
    NOZZLE SIZE (MM) 1.8
    GUN_SERIES Automatic

      Features

    • The compliant air spray reduces bounce back and overspray, while delivering a high finish quality and transfer efficiency.
    • General industry air caps and nozzles produce a uniform, high quality spray pattern with a low atomising pressure.
    • The patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
    • The one piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
    • Its small and light size does not weigh down or wear out robot arms, reciprocators or flat line machines.
    • The direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.
