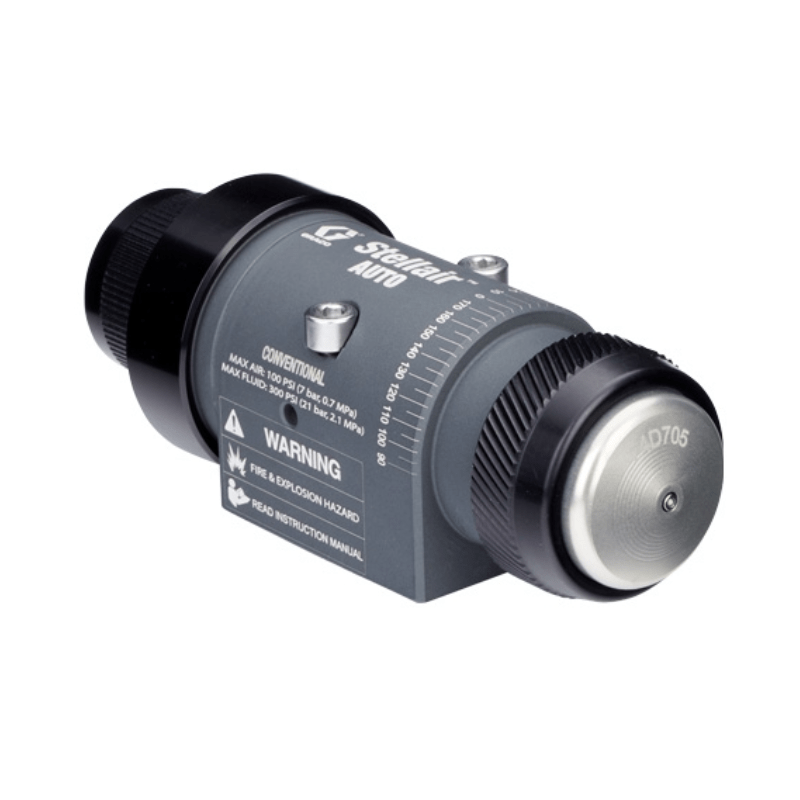

GRACO Stellair Automatic Air Spray Conventional Gun for Air Brush, 0.042 Nozzle - GO Industrial - 25F208

GRACO Stellair Automatic Air Spray Conventional Gun for Air Brush, 0.042 Nozzle

SKU 25F209
Afterpay Zip PayPal LeaseGO
$1,986.00
Tax included. Shipping calculated at checkout.
Size
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

The conventional air spray gun produces stellar results on an automated paint line or in a robotic spray booth.

The automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.

Features

Features

  • Conventional is the most widely used air spray method, producing Class A, automotive finish quality.
  • The air brush air cap delivers a round spray pattern ideal for precise, small surface area spraying. The ability to control pattern size reduces overspray.
  • The patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
  • The one piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
  • Its small and light size does not weigh down or wear out robot arms, reciprocators or flat line machines.
  • The direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.
    • Specifications
    BODY MATERIAL Metal
    COMPATIBLE MATERIAL Adhesives, Sealants
    FLUID ORIFICE SIZE (IN) 0.042
    FLUID ORIFICE SIZE (MM) 1.10
    GUN TYPE Conventional Gun
    GUN WEIGHT (G) 430
    GUN WEIGHT (LB) 1
    MAXIMUM AIR PRESSURE (BAR) 7
    MAXIMUM AIR PRESSURE (PSI) 100
    MAXIMUM FLUID TEMPERATURE (°C) 49
    MAXIMUM FLUID TEMPERATURE (°F) 120
    MINIMUM AIR INLET PRESSURE (BAR) 3.4
    MINIMUM AIR INLET PRESSURE (PSI) 50
    OVERALL HEIGHT (IN) 1.9
    OVERALL HEIGHT (MM) 48.3
    OVERALL LENGTH (IN) 5.10
    OVERALL LENGTH (MM) 129.5
    OVERALL WIDTH (IN) 1.63
    OVERALL WIDTH (MM) 41.4
    APPLICATION Air Brush
    TYPE Auto Gun
    APPLICATOR TYPE Automatic
    NEEDLE TIP MATERIAL PEEK
    FLUID ADJUSTMENT KNOB Optional
    SOUND POWER LEVEL (DB(A)) 88.82
    SOUND PRESSURE LEVEL (DB(A)) 78.91
    MAXIMUM FLUID WORKING PRESSURE (PSI) 300
    MAXIMUM FLUID WORKING PRESSURE (MPA) 2.1
    MAXIMUM FLUID WORKING PRESSURE (BAR) 21
    MAXIMUM FLOW RATE (OZ/MIN) 14
    MAXIMUM AIR PRESSURE (MPA) 0.7
    MINIMUM AIR INLET PRESSURE (MPA) 0.34
    GUN MODEL Stellair
    MANIFOLD TYPE Not Included
    NOZZLE SIZE (IN) 0.042
    NOZZLE SIZE (MM) 1.10
    GUN_SERIES Automatic
