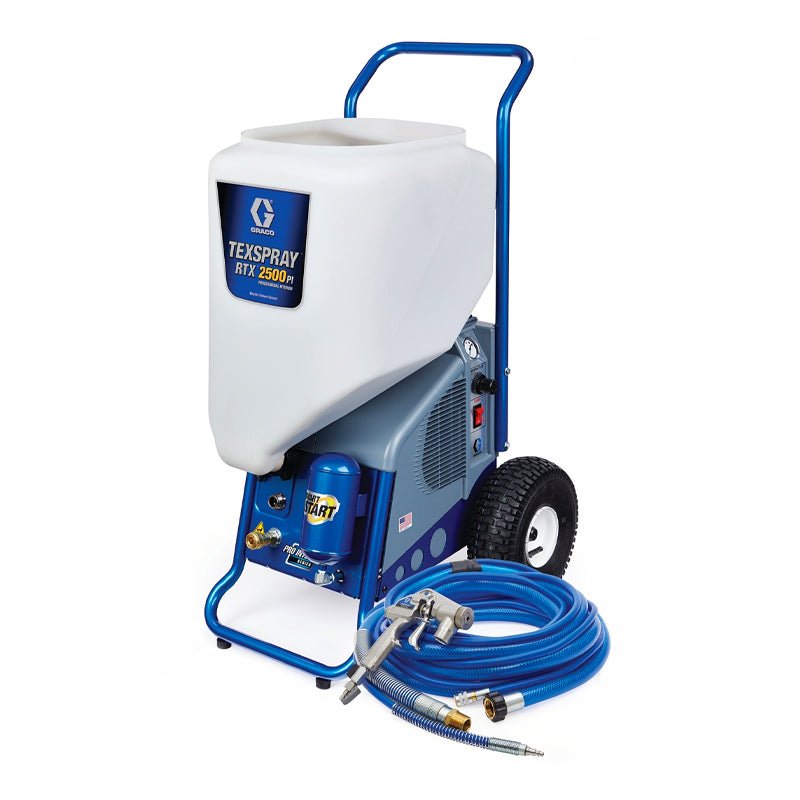

GRACO TexSpray RTX 2500PI Texture Sprayer
- Found a better deal? Message us to price match.
- Spread the cost with LeaseGO. .
Dispatch options
GO stock or Melbourne supplier stock
Australia-wide delivery
Delivery to your job site
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
The Graco TexSpray RTX 2500PI is an optimised texture system for tradesmen and contractors handling thicker materials and medium-to-large jobs. It delivers 2.5 gallons per minute and handles up to 75 feet of hose to speed up the work. A jobsite-proven RotoFlex II pump, the SmartStart system, a high-output 6.1 cfm air compressor, a 120V AC motor, a skip-bond material and air hose, a FlexChange pump section, adjustable material flow control, a heavy-duty aluminium trigger gun, WideTex tips and onboard storage complete the system.
Features
RotoFlex II Pump: Jobsite-proven pump gives 2.5 gpm output through an innovative braided pump tube for long life.
SmartStart System: Trigger-activated power starts and stops the pump and compressor automatically, with a soft start that reduces noise and vibration and extends pump and compressor life.
Air Compressor: High-output 6.1 cfm compressor delivers 33% more air for demanding finishes and projects material farther, with a maintenance-free design.
Electric Motor: 120V AC high-output single-motor design runs the air compressor and RotoFlex pump.
Skip-Bond Hose: Material and air hoses are permanently bonded for easy handling.
FlexChange Pump: Swap the RotoFlex pump in seconds with no tools to eliminate downtime.
Flow Control: Adjustable material flow control with an easy-to-read gauge.
Trigger Gun: Heavy-duty aluminium trigger gun with an integrated prime selector and oversized passages for total spray control.
WideTex Tips: WideTex tips and adapter increase productivity by over 20% with uniform, repeatable patterns.
Onboard Storage: Onboard storage keeps accessories to hand.
Included accessories
Specifications
| Amperage (A) | 15 |
|---|---|
| Includes | Heavy-Duty Air Spray Trigger Gun, 1 in x 25 ft Material/Air Hose, 3 mm Round Nozzle, 4 mm Round Nozzle, 6 mm Round Nozzle, 8 mm Round Nozzle, 10 mm Round Nozzle, 12 mm Round Nozzle, 4 mm WideTex Tip, 6 mm WideTex Tip, 8 mm WideTex Tip, 10 mm WideTex Tip, 12 mm WideTex Tip, XL WideTex Tip, WideTex Adapter |
| Maximum Flow Rate (L/min) | 9.5 |
| Maximum Hose Length (m) | 23 |
| Maximum Working Pressure (MPa) | 0.7 |
| Maximum Working Pressure (bar) | 6.9 |
| Maximum Working Pressure (kPa) | 690 |
| Model | TexSpray RTX |
| Overall Height (cm) | 106 |
| Overall Height (mm) | 1060 |
| Overall Length (cm) | 62 |
| Overall Length (mm) | 620 |
| Overall Width (cm) | 56 |
| Overall Width (mm) | 560 |
| Power Source | Electric |
| Recommended Annual Usage | Up to 2500 gallons per year |
| Series | 2500PI |
| Standards Met | ETL Certified, ETL File #102139120MIN-001 |
| Type | Air-Assisted Airless Sprayer |
| Voltage (V) | 230 |
