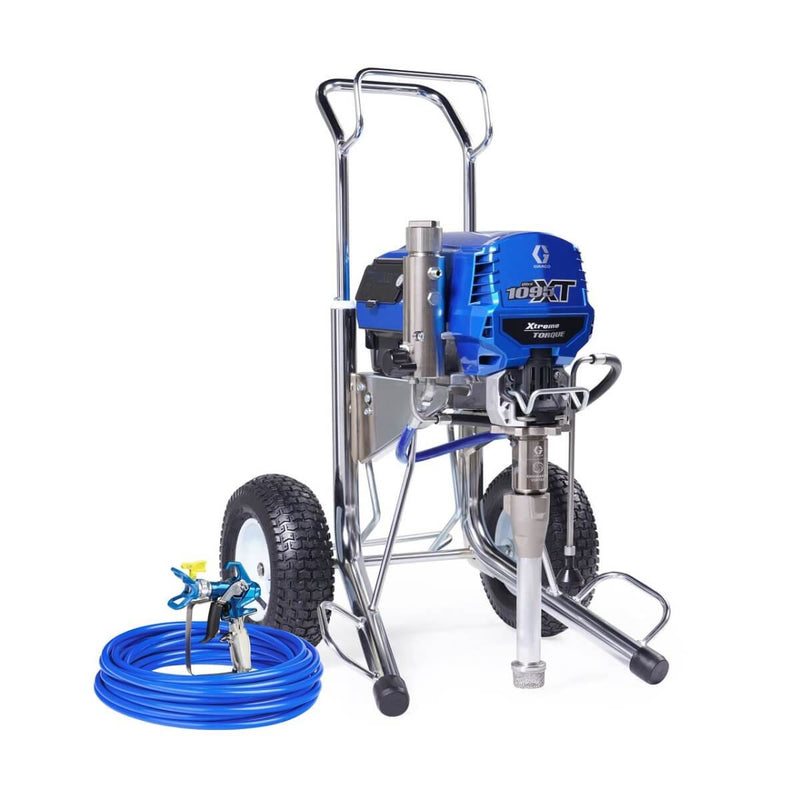

GRACO Ultra 1095 XT Standard Series Hi-Boy Electric Airless Sprayer
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Built for the work it does.
The Ultra 1095 XT Standard Series delivers an airless spray experience like no other. Made in the USA with a 2.7 HP Xtreme Torque motor, featuring Next Generation Rapid-Response Pressure Control, and the longest life pump in its class. The 1095 XT Standard is sure to change the way you spray.
Xtreme Reliability. The all new XT Standard Series large electric sprayers are the most reliable pumps for contractors looking for proven performance on the industry's most silent spraying platform. Upgrade to an XT ProContractor for more profit-saving features, or upgrade later with ALL NEW Modular Accessory Kits!
Features
Features
Xtreme Torque Motor Technology
- 15X more torque than traditional motors
- 8X more magnets provide unmatched power and performance
- 90% lower running speeds extend motors life
- 10X quieter
Rapid Response Control
- Instantly responds to deliver the best finish quality
- More performance across its full tip size range
- Industry's largest operating pressure range (50-3,300 psi)
Selectable Performance Modes
- Two selectable spray modes offer unique performance levels to boost efficiency on every job
- Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 - 2,000 psi)
- Use High Pressure mode for Xtreme Performance (500 – 3,300 psi)
Easy-to-Read LED Digital Display
- Visible in even the toughest spraying conditions
Endurance Vortex Piston Pump with ProConnect
- Endurance Vortex Rod Lasts 3X longer than the closest competitor
- ProConnect Pump Removal for fast on-the-job service
Turbo Clean Cleaning System
- Industry’s fastest pump cleaning system
- Delivers 6X faster cleaning with 1/2 the water
- Convenient location
Watch Dog Pump Protection
- Prevents damage by shutting off pump when it's time to refill
Durable Filtration
- Easy Out Filter provides easy maintenance and less clogging
Easy Transport
- Only 31 lbs (Stand)
Gun, Hose and Tip Included
- Contractor PC Gun & RAC X LP 517 SwitchTip
Included accessories
Specifications
| MOTOR POWER RATING | 2.7 HP |
|---|---|
| MOTOR TYPE | Xtreme Torque Brushless DC |
| FLUID OUTLET THREAD TYPE | NPSM |
| FRAME CONFIGURATION | Hi-Boy |
| MAXIMUM FLOW RATE | 4.9 L/min | 1.30 G/min |
| SOUND POWER LEVEL | 89 dBa |
| SOUND PRESSURE LEVEL | 79 dBa |
| MAXIMUM TIP SIZE | 0.037 IN |
| MODEL | ULTRA 1095 XT |
| MAXIMUM WORKING PRESSURE | 3300 PSI | 228 BAR |
| VOLTAGE | 230V |
| WEIGHT | 51 KG | 112 LB |
| PLUG TYPE | 230V ANZ |
| PUMP ROD TYPE | Hardened Steel (Chromex) |
| MINIMUM GENERATOR POWER | 3500 W |
