Graco Ultra & Ultra XT Endurance Vortex Piston Pump

SKU 19D873
Afterpay Zip PayPal LeaseGO
$884.00
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
In Stock

Pickup available at GO Industrial

Usually ready in 1 hour

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Frequently bought together

Bundle the essentials.

Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

Total price
Product details

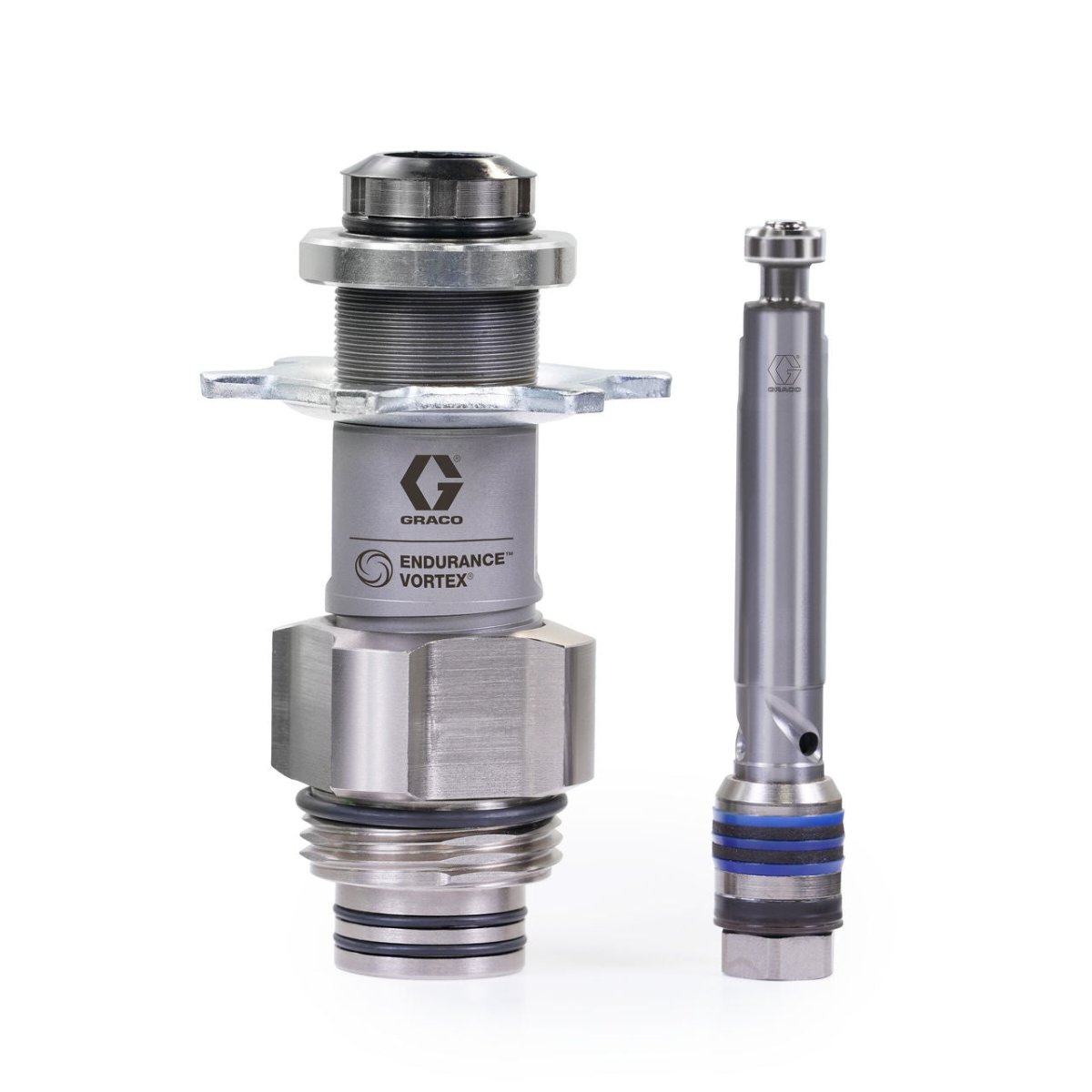

The Endurance Vortex is the ProConnect displacement pump fitted to the corded Graco Ultra and Ultra XT airless sprayers. Its displacement rod rotates as it strokes rather than running straight up and down, so the load is spread right around the throat and piston packings instead of sitting on one side of them. Even wear is what buys the packings their service life.

It suits the Ultra 390 in stand and hi-cart form, the Ultra 395, the Ultra 450, and the Ultra 490 XT and 495 XT in stand, lo-boy and hi-boy. Maximum fluid working pressure is 3300 psi (228 bar), through a 1.0 in fluid inlet and a 1/4 in outlet. Packings are Graco's V-Max Blue UHMWPE stacked with leather, running on a Chromex rod in a hardened stainless steel cylinder.

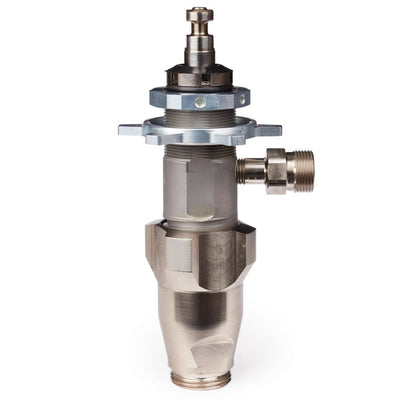

Two machines in the Ultra family take a different pump. The 390 PC Cordless (25T882) runs the standard Endurance Chromex pump, part 17C487, not this vortex one. The Ultra 650 XT takes the larger 2002382. Check the model badge on your sprayer before you order, or send us the serial number and we will confirm which pump it takes.

ProConnect is what makes this a swap rather than a workshop job. Relieve the pressure, back the retaining nut off, disconnect the hoses and slide the old pump out of the drive housing. A crew carrying a spare loses minutes to a worn pump instead of the rest of the day. When it is the packings that have gone and the rod and cylinder are still sound, the 18B260 repair kit and the 246429 carbide seat kit rebuild it in place.

Features
  • Auto-Rotating Vortex Rod: The displacement rod turns as it strokes, balancing the load across the packings so they wear evenly and run longer before repacking.

  • ProConnect Replacement System: The pump slides out of the drive housing once the retaining nut is backed off, which makes a pump change a jobsite task rather than a workshop strip-down.

  • Chromex Piston Rod: Hard chrome plated rod running in a hardened stainless steel cylinder, the wear pair Graco specifies across the Ultra range.

  • V-Max Blue Packings: Proprietary UHMWPE V-packings, individually supported, stacked with leather throat and piston packings.

  • Carbide Intake Seat: Tungsten carbide seat and stainless steel ball at the intake, renewed as a set with the 246429 seat kit.

  • Rated Duty: 3300 psi (228 bar, 22.8 MPa) maximum fluid working pressure, with a 1.0 in fluid inlet and a 1/4 in fluid outlet.

  • Rebuildable In Place: The 18B260 repair kit renews the packings without replacing the pump, so a worn pump does not always mean buying a new one.
Included accessories

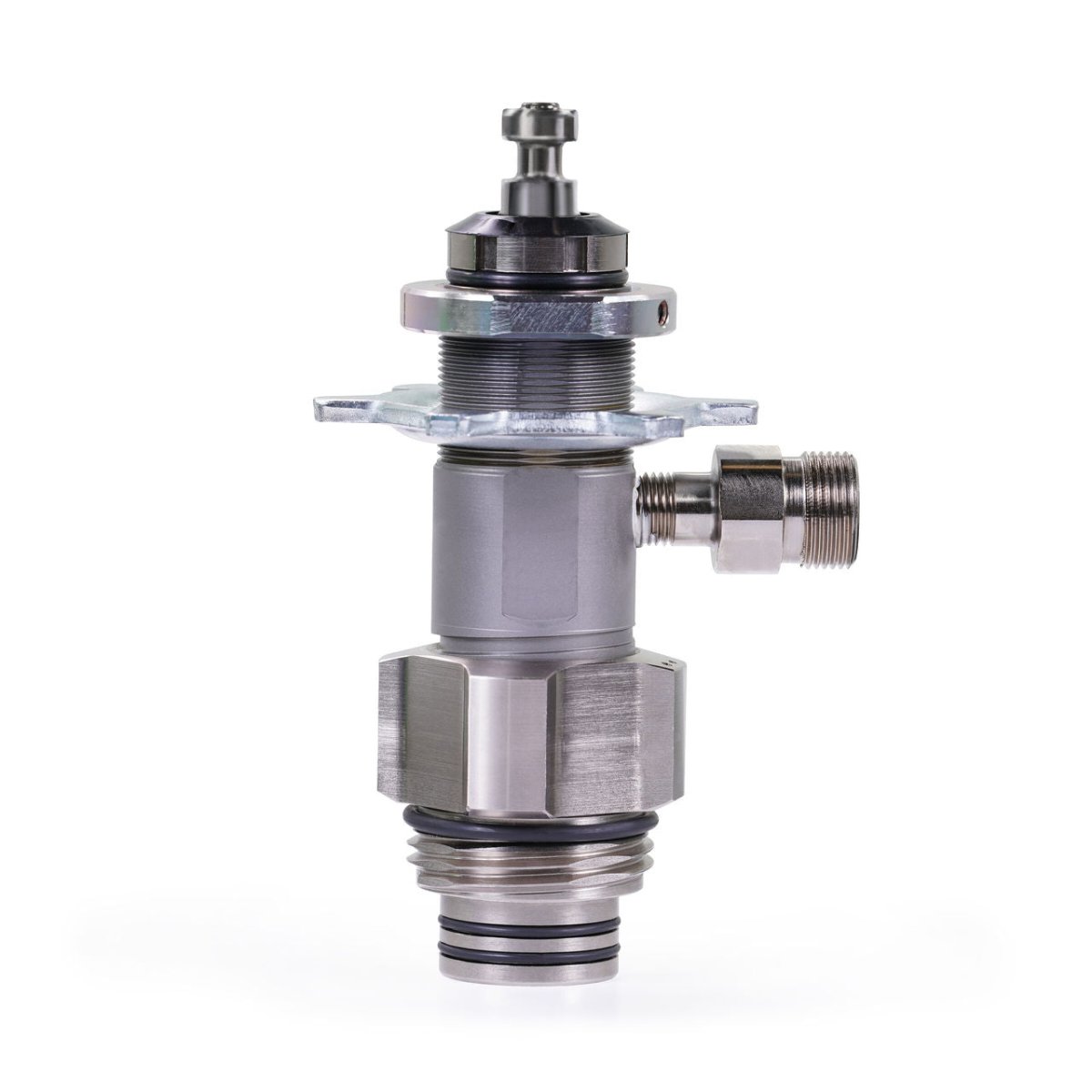

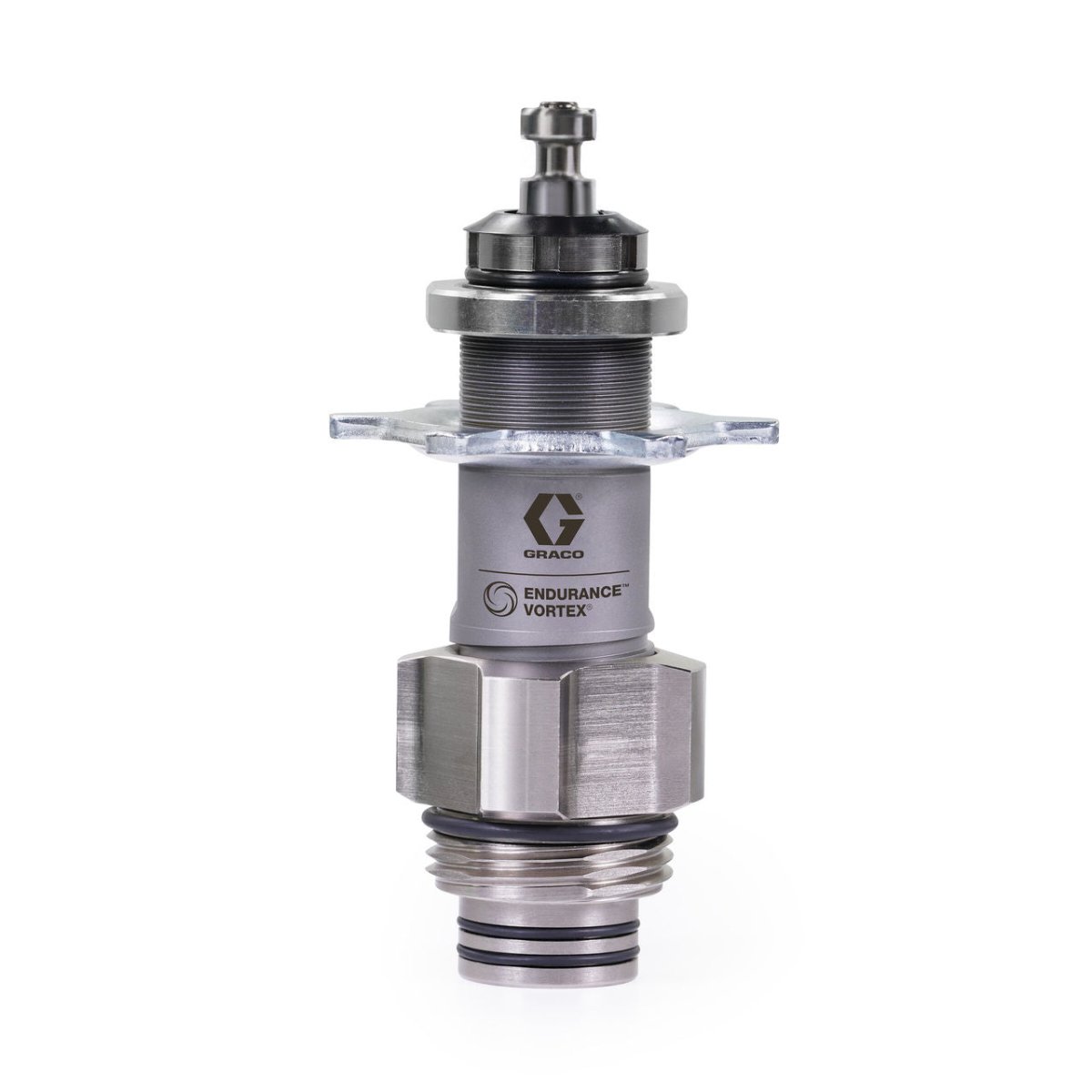

Supplied as one complete, assembled ProConnect Endurance Vortex displacement pump, ready to fit to the sprayer:

  • Displacement rod (2004762) and pump cylinder (2004756), the parts specific to 19D873.
  • Throat packing stack: three V-Max Blue UHMWPE and two leather V-packings, with male and female glands.
  • Piston packing stack: three V-Max Blue UHMWPE and two leather V-packings, with male and female glands.
  • Intake valve housing with the tungsten carbide seat, stainless steel ball and o-ring fitted.
  • Piston valve, ball guide and packing nut, assembled and torqued.

The quick-disconnect pump fitting is not listed against 19D873 in the 334599N parts list, so carry the fitting across from the pump you are replacing. The 18B260 packing repair kit, the 246429 carbide seat kit and throat seal liquid are sold separately.

Specifications
TYPE Replacement Displacement Pump
MODEL Endurance Vortex (ProConnect)
PART NUMBER 19D873
PISTON ROD Chromex, Hard Chrome Plated
CYLINDER Hardened Stainless Steel
SUITS Ultra 390 Stand (25F517) | Ultra 390 Hi-Cart (25F518) | Ultra 395 Stand (25F522) | Ultra 450 Stand (25F523) | Ultra 490 XT (19D531) | Ultra 495 XT Stand, Lo-Boy And Hi-Boy (19D532, 19D534, 19D533)
DOES NOT SUIT Graco 390 PC Cordless (25T882, Takes 17C487) | Ultra 650 XT (20B327, 20B328, Takes 2002382)
MAXIMUM FLUID WORKING PRESSURE 3300 PSI | 228 BAR | 22.8 MPA
FLUID INLET SIZE 1.0 In Diameter
FLUID OUTLET SIZE 1/4 In
THROAT PACKINGS 3 x V-Max Blue UHMWPE (192710) | 2 x Leather (176755)
PISTON PACKINGS 3 x V-Max Blue UHMWPE (192712) | 2 x Leather (176749)
INTAKE Tungsten Carbide Seat With 0.5000 In Stainless Steel Ball
DISPLACEMENT ROD 2004762
PUMP CYLINDER 2004756
PACKING REPAIR KIT 18B260 (Sold Separately)
CARBIDE SEAT KIT 246429 (Sold Separately)
WETTED MATERIALS Stainless Steel, PTFE, Leather, Nylon, Zinc-Plated And Nickel-Plated Carbon Steel, Tungsten Carbide, Chrome Plating, UHMWPE, Acetal, Polyethylene
PACKING NUT TORQUE 75 ± 5 In-Lb (8.5 ± 0.5 N•m), Or A Further 1/2 Turn From Hand Tight
MANUAL 334599N, Repair And Parts
Warranty

12 month warranty from the date of sale on defects in material and workmanship, under Graco's standard warranty. It applies when the pump is installed, operated and maintained to Graco's written recommendations. It does not cover general wear and tear, or damage caused by faulty installation, misapplication, abrasion, corrosion or the use of non-Graco replacement parts.
