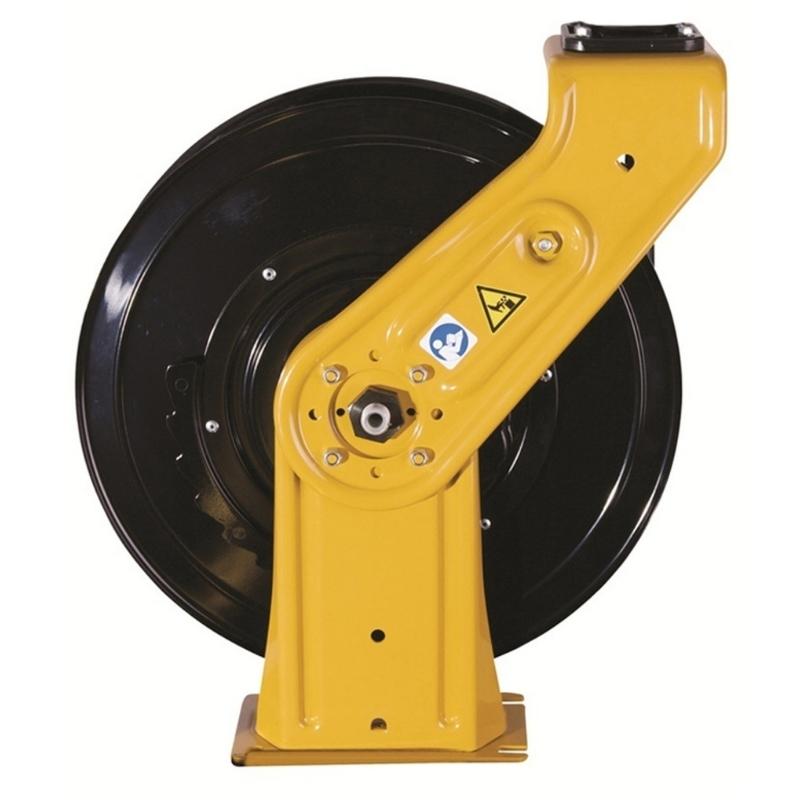

GRACO XD30 Bare Hose Reels
- Found a better deal? Message us to price match.
- Spread the cost with LeaseGO. .
Dispatch options
GO stock or Melbourne supplier stock
Australia-wide delivery
Delivery to your job site
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).
Features
Features
Specifications
| Technical Specifications | SKU HSMDDF | SKU HSHCDF |
| COLOR | Yellow | Yellow |
| DRY WEIGHT (LB) | 98 | 98 |
| HOSE INSIDE DIAMETER (IN) | 3/4 | 1/2 |
| HOSE INSIDE DIAMETER (MM) | 19.05 | 12.7 |
| HOSE LENGTH (FT) | 50 | 50 |
| HOSE LENGTH (M) | 15 | 15 |
| INLET SIZE (IN) | 3/4 | 1/2 |
| INLET SIZE (MM) | 19.05 | 12.7 |
| INLET THREAD TYPE | NPSM | NPSM |
| MAXIMUM WORKING PRESSURE (PSI) | 2000 | 5000 |
| MOUNT LOCATION | Truck Mount, Bench Mount | Truck Mount, Bench Mount |
| OUTLET SIZE (IN) | 3/4 | 1/2 |
| OUTLET SIZE (MM) | 19.05 | 12.7 |
| OVERALL HEIGHT (IN) | 23.1 | 23.1 |
| OVERALL HEIGHT (MM) | 588 | 588 |
| OVERALL LENGTH (IN) | 22.12 | 22.12 |
| OVERALL LENGTH (MM) | 561.73 | 561.73 |
| OVERALL WIDTH (IN) | 9 | 9 |
| OVERALL WIDTH (MM) | 229 | 229 |
| SERIES | 30 | 30 |
| WETTED PARTS | Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber | - |
| APPLICATION | Oil | Grease |
| TYPE | Spring-Rewind Reel | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor, Outdoor | Indoor, Outdoor |
| FRAME TYPE | Dual Pedestal | Dual Pedestal |
| BARE REEL | 1 | 1 |
| REEL THREAD TYPE | NPT | NPT |
| RECOMMENDED FLUID TYPE | Oil | Grease |
| HOSE REEL TYPE | Bare Reel | Bare Reel |
| MODEL | XD | XD |
| Technical Specifications | SKU HSMDDA |
| COLOR | White |
| DRY WEIGHT (LB) | 98 |
| HOSE INSIDE DIAMETER (IN) | 3/4 |
| HOSE INSIDE DIAMETER (MM) | 19.05 |
| HOSE LENGTH (FT) | 50 |
| HOSE LENGTH (M) | 15 |
| INLET SIZE (IN) | 3/4 |
| INLET SIZE (MM) | 19.05 |
| INLET THREAD TYPE | NPSM |
| MAXIMUM WORKING PRESSURE (PSI) | 2000 |
| MOUNT LOCATION | Truck Mount, Bench Mount |
| OUTLET SIZE (IN) | 3/4 |
| OUTLET SIZE (MM) | 19.05 |
| OVERALL HEIGHT (IN) | 23.1 |
| OVERALL HEIGHT (MM) | 588 |
| OVERALL LENGTH (IN) | 22.12 |
| OVERALL LENGTH (MM) | 561.73 |
| OVERALL WIDTH (IN) | 9 |
| OVERALL WIDTH (MM) | 229 |
| SERIES | 30 |
| WETTED PARTS | Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber |
| APPLICATION | Oil |
| TYPE | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor, Outdoor |
| FRAME TYPE | Dual Pedestal |
| BARE REEL | 1 |
| REEL THREAD TYPE | NPT |
| RECOMMENDED FLUID TYPE | Oil, Aceite |
| HOSE REEL TYPE | Bare Reel |
| MODEL | XD |
