GRACO XD40 Hose Reel 15m 1
  • GRACO XD40 Hose Reel 15m 1" for Diesel Fuel - GO Industrial - 24P355
1 1

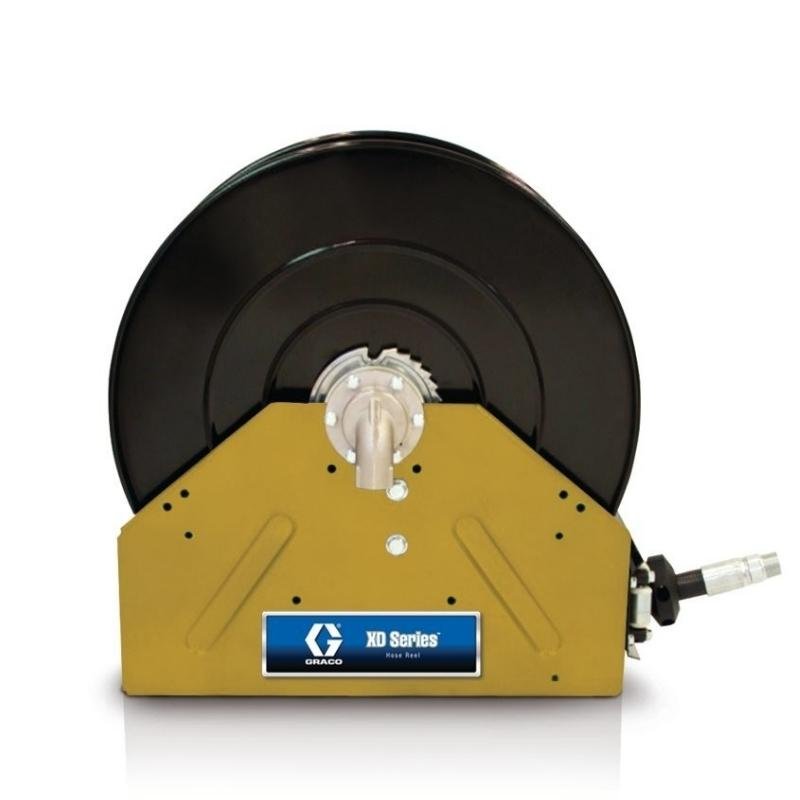

GRACO XD40 Hose Reel 15m 1" for Diesel Fuel

SKU: 24P355

GRACO XD40 Hose Reel 15m 1" for Diesel Fuel

$5,313.00 AUD
$5,313.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
GRACO XD40 Hose Reel 15m 1

GRACO XD40 Hose Reel 15m 1" for Diesel Fuel

$5,313.00 AUD
$5,313.00 AUD
Save $0
Sold out

Details

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

Typical Applications:

  • Heavy-duty truck dealers
  • Fleet maintenance
  • Mining maintenance
  • Public works garages
  • Construction vehicle maintenance
  • Heavy-duty mobile service trucks
  • Agriculture
  • Lube trucks

Compatible For:

  • Diesel Fuel

Features

  • Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
  • Meets Worldwide Needs - Built standard with 90° elbow with NPT threads

    • Graco XD40 Hose Reel 15m 1" for Diesel Fuel

    Overview

    Graco’s XD40 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • 3A2990EN-K 0 Graco XD40 and XD50 Hose Reels Manual
    • Graco XD 40 and XD 50 Hose Reels Data Sheet - GO Industrial

    Specifications

    COLOR Yellow
    DRY WEIGHT (LB) 125
    HOSE INSIDE DIAMETER (IN) 1
    HOSE INSIDE DIAMETER (MM) 25.4
    HOSE LENGTH (FT) 50
    HOSE LENGTH (M) 15
    INLET SIZE (IN) 1
    INLET SIZE (MM) 25.4
    INLET THREAD TYPE NPT
    MAXIMUM WORKING PRESSURE (PSI) 250
    OUTLET SIZE (IN) 1
    OUTLET SIZE (MM) 25.4
    OVERALL HEIGHT (IN) 26.13
    OVERALL HEIGHT (MM) 664
    OVERALL LENGTH (IN) 26.4
    OVERALL LENGTH (MM) 671
    OVERALL WIDTH (IN) 16.54
    OVERALL WIDTH (MM) 420
    SERIES 40
    APPLICATION Diesel Fuel
    TYPE Spring-Rewind Reel
    RECOMMENDED ENVIRONMENT Indoor, Outdoor
    FRAME TYPE Box Frame
    REEL THREAD TYPE NPT
    RECOMMENDED FLUID TYPE Diesel Fuel
    HOSE REEL TYPE Reel with Hose
    MODEL XD

      Features

    • Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
    • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
    • Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
    • Meets Worldwide Needs - Built standard with 90° elbow with NPT threads
