Enquire For Price
- Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
- Meets Worldwide Needs - Built standard with 90° elbow with NPT threads
| Technical Specifications | SKU 24P459 | SKU 24P462 |
| COLOR | Yellow | Yellow |
| DRY WEIGHT (LB) | 152 | 145 |
| HOSE INSIDE DIAMETER (IN) | 1 | 1-1/4 |
| HOSE INSIDE DIAMETER (MM) | 25.4 | 31.75 |
| HOSE LENGTH (FT) | 75 | 50 |
| HOSE LENGTH (M) | 23 | 15 |
| INLET SIZE (IN) | 1 | 1-1/2 |
| INLET SIZE (MM) | 25.4 | 38.1 |
| INLET THREAD TYPE | NPT | NPT, Victaulic Groove |
| MAXIMUM WORKING PRESSURE (PSI) | 2000 | 600 |
| OUTLET SIZE (IN) | 1 | 1-1/2 |
| OUTLET SIZE (MM) | 25.4 | 38.1 |
| OVERALL HEIGHT (IN) | 30.13 | 30.13 |
| OVERALL HEIGHT (MM) | 765 | 765 |
| OVERALL LENGTH (IN) | 29.4 | 29.4 |
| OVERALL LENGTH (MM) | 747 | 747 |
| OVERALL WIDTH (IN) | 17.47 | 18.24 |
| OVERALL WIDTH (MM) | 444 | 463 |
| SERIES | 50 | 50 |
| WETTED PARTS | Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber | - |
| APPLICATION | Oil | Diesel Fuel, WOE |
| TYPE | Spring-Rewind Reel | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor, Outdoor | Indoor, Outdoor |
| FRAME TYPE | Box Frame | Box Frame |
| BARE REEL | 1 | 1 |
| REEL THREAD TYPE | NPT | NPT |
| RECOMMENDED FLUID TYPE | Oil | Diesel Fuel, WOE |
| HOSE REEL TYPE | Bare Reel | Bare Reel |
| MODEL | XD | XD |
| Technical Specifications | SKU 24P468 |
| COLOR | Yellow |
| DRY WEIGHT (LB) | 162 |
| HOSE INSIDE DIAMETER (IN) | 1-1/2 |
| HOSE INSIDE DIAMETER (MM) | 38.1 |
| HOSE LENGTH (FT) | 50 |
| HOSE LENGTH (M) | 15 |
| INLET SIZE (IN) | 1-1/2 |
| INLET SIZE (MM) | 38.1 |
| INLET THREAD TYPE | NPT, Victaulic Groove |
| MAXIMUM WORKING PRESSURE (PSI) | 600 |
| OUTLET SIZE (IN) | 1-1/2 |
| OUTLET SIZE (MM) | 38.1 |
| OVERALL HEIGHT (IN) | 30.13 |
| OVERALL HEIGHT (MM) | 765 |
| OVERALL LENGTH (IN) | 29.4 |
| OVERALL LENGTH (MM) | 747 |
| OVERALL WIDTH (IN) | 18.24 |
| OVERALL WIDTH (MM) | 463 |
| SERIES | 50 |
| APPLICATION | Diesel Fuel |
| TYPE | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor, Outdoor |
| FRAME TYPE | Box Frame |
| BARE REEL | 1 |
| REEL THREAD TYPE | NPT |
| RECOMMENDED FLUID TYPE | Diesel Fuel |
| HOSE REEL TYPE | Bare Reel |
| MODEL | XD |
Regular price
$3,555.00 AUD
Sale price
$3,555.00 AUD
Regular price
$3,949.00 AUD
Unit price
per
Save $394
Sold out
Inclusive of GST.
Shipping calculated at checkout.
Other payment options
Couldn't load pickup availability
At a Glance

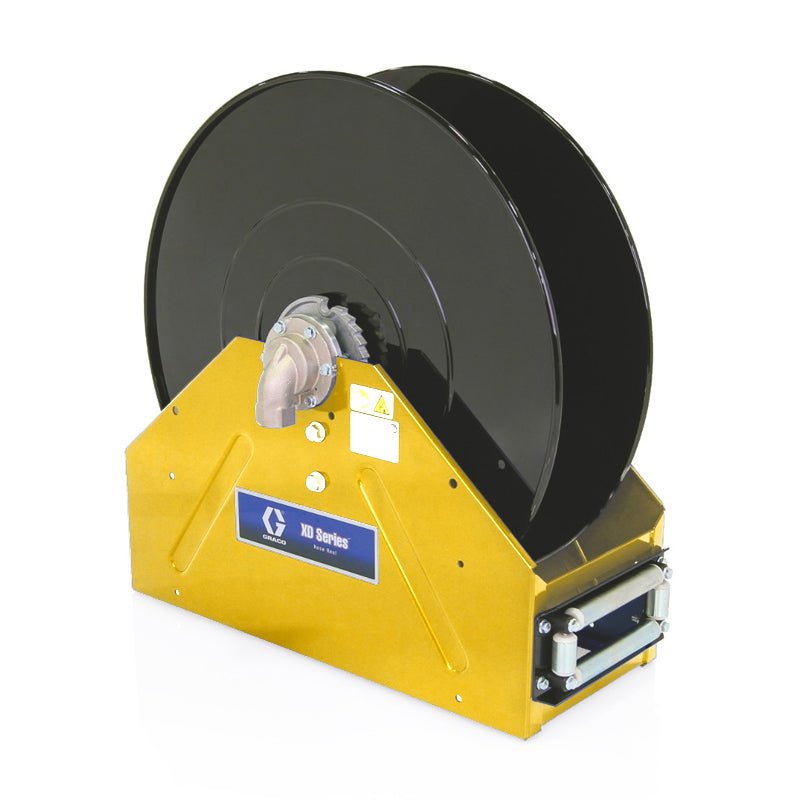

Graco’s XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.
- Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
- Meets Worldwide Needs - Built standard with 90° elbow with NPT threads
| Technical Specifications | SKU 24P459 | SKU 24P462 |
| COLOR | Yellow | Yellow |
| DRY WEIGHT (LB) | 152 | 145 |
| HOSE INSIDE DIAMETER (IN) | 1 | 1-1/4 |
| HOSE INSIDE DIAMETER (MM) | 25.4 | 31.75 |
| HOSE LENGTH (FT) | 75 | 50 |
| HOSE LENGTH (M) | 23 | 15 |
| INLET SIZE (IN) | 1 | 1-1/2 |
| INLET SIZE (MM) | 25.4 | 38.1 |
| INLET THREAD TYPE | NPT | NPT, Victaulic Groove |
| MAXIMUM WORKING PRESSURE (PSI) | 2000 | 600 |
| OUTLET SIZE (IN) | 1 | 1-1/2 |
| OUTLET SIZE (MM) | 25.4 | 38.1 |
| OVERALL HEIGHT (IN) | 30.13 | 30.13 |
| OVERALL HEIGHT (MM) | 765 | 765 |
| OVERALL LENGTH (IN) | 29.4 | 29.4 |
| OVERALL LENGTH (MM) | 747 | 747 |
| OVERALL WIDTH (IN) | 17.47 | 18.24 |
| OVERALL WIDTH (MM) | 444 | 463 |
| SERIES | 50 | 50 |
| WETTED PARTS | Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber | - |
| APPLICATION | Oil | Diesel Fuel, WOE |
| TYPE | Spring-Rewind Reel | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor, Outdoor | Indoor, Outdoor |
| FRAME TYPE | Box Frame | Box Frame |
| BARE REEL | 1 | 1 |
| REEL THREAD TYPE | NPT | NPT |
| RECOMMENDED FLUID TYPE | Oil | Diesel Fuel, WOE |
| HOSE REEL TYPE | Bare Reel | Bare Reel |
| MODEL | XD | XD |
| Technical Specifications | SKU 24P468 |
| COLOR | Yellow |
| DRY WEIGHT (LB) | 162 |
| HOSE INSIDE DIAMETER (IN) | 1-1/2 |
| HOSE INSIDE DIAMETER (MM) | 38.1 |
| HOSE LENGTH (FT) | 50 |
| HOSE LENGTH (M) | 15 |
| INLET SIZE (IN) | 1-1/2 |
| INLET SIZE (MM) | 38.1 |
| INLET THREAD TYPE | NPT, Victaulic Groove |
| MAXIMUM WORKING PRESSURE (PSI) | 600 |
| OUTLET SIZE (IN) | 1-1/2 |
| OUTLET SIZE (MM) | 38.1 |
| OVERALL HEIGHT (IN) | 30.13 |
| OVERALL HEIGHT (MM) | 765 |
| OVERALL LENGTH (IN) | 29.4 |
| OVERALL LENGTH (MM) | 747 |
| OVERALL WIDTH (IN) | 18.24 |
| OVERALL WIDTH (MM) | 463 |
| SERIES | 50 |
| APPLICATION | Diesel Fuel |
| TYPE | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor, Outdoor |
| FRAME TYPE | Box Frame |
| BARE REEL | 1 |
| REEL THREAD TYPE | NPT |
| RECOMMENDED FLUID TYPE | Diesel Fuel |
| HOSE REEL TYPE | Bare Reel |
| MODEL | XD |
