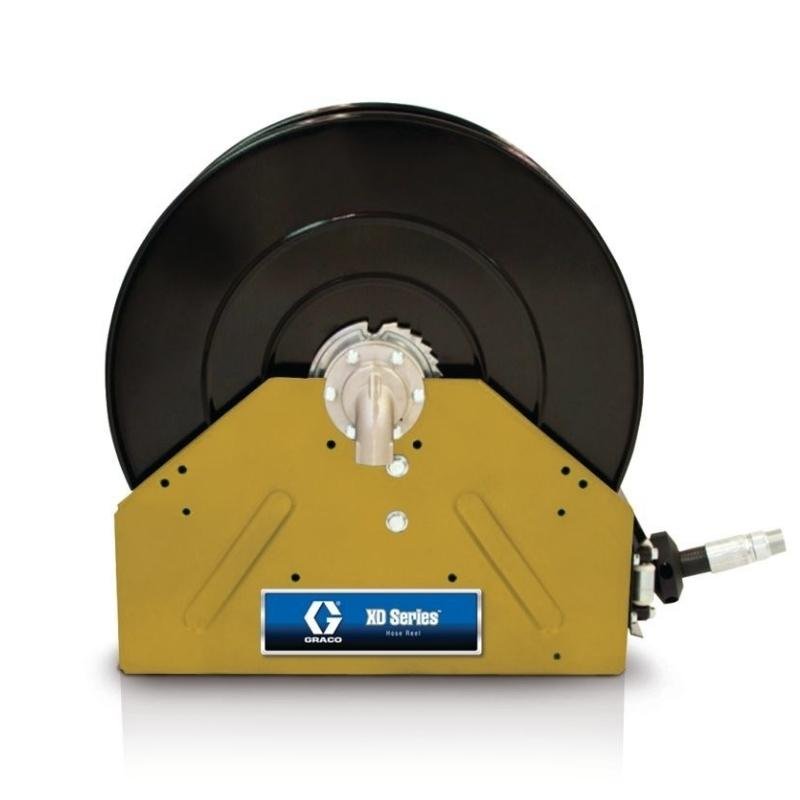

GRACO XD50 Hose Reel 23m 1" for Oil

SKU: 24P477

GRACO XD50 Hose Reel 23m 1" for Oil

Regular price $5,577.00 AUD
Sale price $5,577.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In stock and ready to ship or collect in 1 to 2 days. Delivery times vary as per courier.

Other payment options

Pickup available at GO Industrial

Usually ready in 2-4 days

View full details
GRACO XD50 Hose Reel 23m 1

GRACO XD50 Hose Reel 23m 1" for Oil

Regular price $5,577.00 AUD
Sale price $5,577.00 AUD Regular price
Save $0
Sold out

Details

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

Typical Applications:

  • Heavy-duty truck dealers
  • Fleet maintenance
  • Mining maintenance
  • Public works garages
  • Construction vehicle maintenance
  • Heavy-duty mobile service trucks
  • Agriculture
  • Lube trucks

Compatible For:

  • Oil
  • Gear Lube
  • ATF

Features

  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
  • Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
  • Meets Worldwide Needs - Built standard with 90° elbow with NPT threads
  • Graco XD50 Hose Reel 23m 1" for Oil

    Overview

    Graco’s XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      Specifications

      COLOR Yellow
      DRY WEIGHT (LB) 162
      HOSE INSIDE DIAMETER (IN) 1
      HOSE INSIDE DIAMETER (MM) 25.4
      HOSE LENGTH (FT) 75
      HOSE LENGTH (M) 23
      INLET SIZE (IN) 1
      INLET SIZE (MM) 25.4
      INLET THREAD TYPE NPT
      MAXIMUM WORKING PRESSURE (PSI) 1275
      OUTLET SIZE (IN) 1
      OUTLET SIZE (MM) 25.4
      OVERALL HEIGHT (IN) 30.13
      OVERALL HEIGHT (MM) 765
      OVERALL LENGTH (IN) 29.4
      OVERALL LENGTH (MM) 747
      OVERALL WIDTH (IN) 17.47
      OVERALL WIDTH (MM) 444
      SERIES 50
      APPLICATION Oil
      TYPE Spring-Rewind Reel
      RECOMMENDED ENVIRONMENT Indoor, Outdoor
      FRAME TYPE Box Frame
      REEL THREAD TYPE NPT
      RECOMMENDED FLUID TYPE Oil
      HOSE REEL TYPE Reel with Hose
      MODEL XD

        Features

      • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
      • Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
      • Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
      • Meets Worldwide Needs - Built standard with 90° elbow with NPT threads
