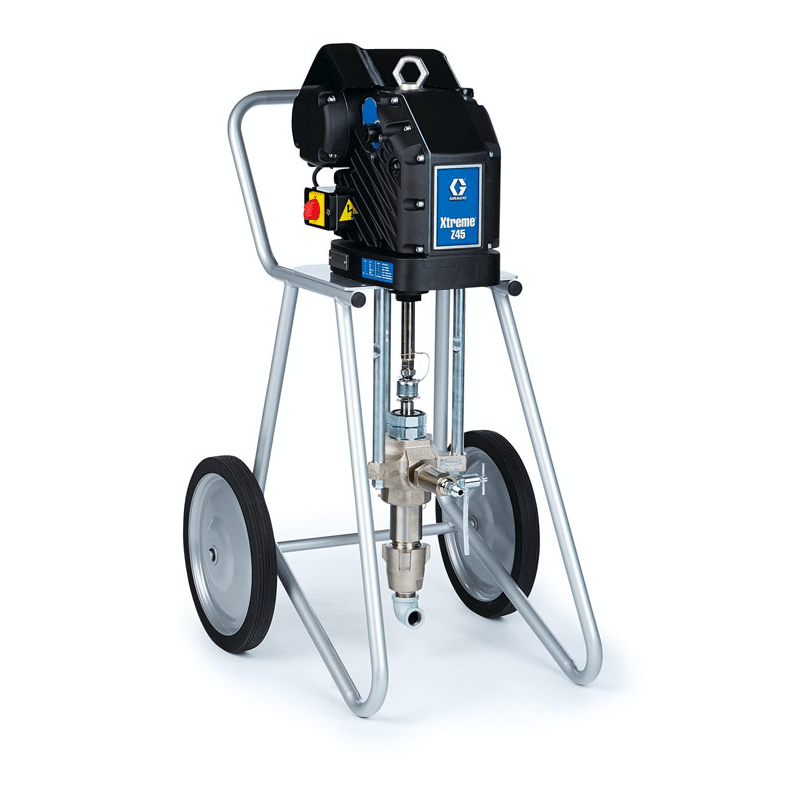

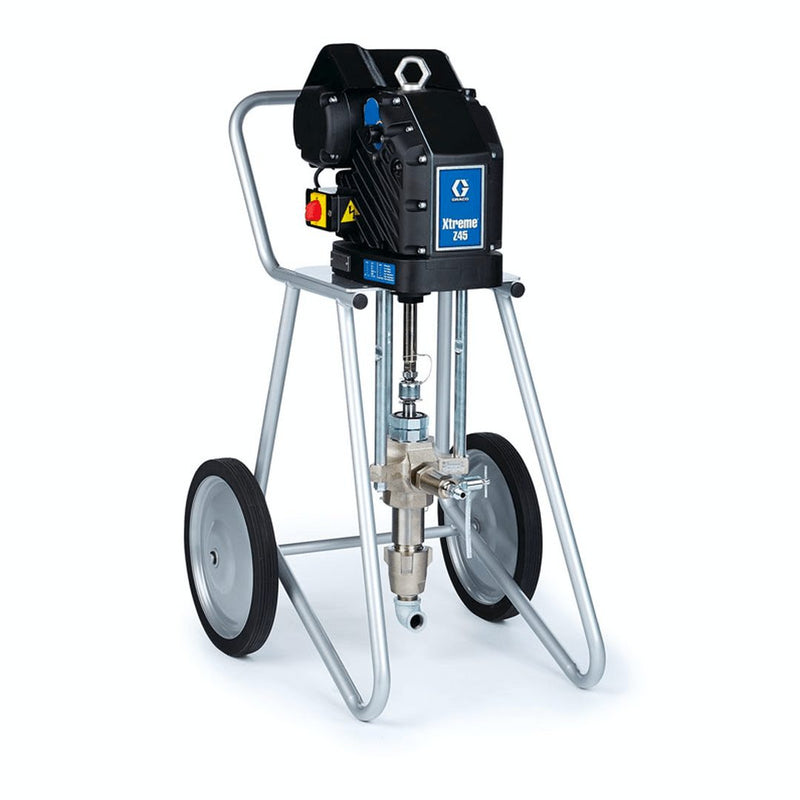

The Graco Z45 High Pressure Electric Sprayer is an electric alternative to air-operated single-leg sprayers, producing a smooth, consistent, evenly distributed spray pattern without towing a large compressor. Dual cooling fans support continuous duty at operating temperatures up to 50 degrees, the electric driver reaches up to 6,000 psi and is fit for outdoor use, and the portable lightweight cart is easy to manoeuvre. A 145 cc Xtreme lower pump provides optimal pressure and flow with quick knock-downs for easy repairs. It is supplied as package 24Y452 with a 3/8 in x 15 m fluid hose, a 1/4 in x 1.8 m whip hose, an XTR510 gun and a side outlet. A suction hose is not included; choose either the 24V083 hopper or the 245176 suction kit.
Features
Cooling Fans: Dual cooling fans support continuous duty applications and operating temperatures up to 50 degrees.
Electric Driver: Electric driver reaches up to 6,000 psi and is fit for outdoor use.
Portable Cart: Portable lightweight cart for easy manoeuvrability.
Xtreme Lower Pump: 145 cc lower pump gives optimal pressure and flow with quick knock-downs for easy repairs.
Included accessories
Specifications
| Model | Graco Z45 High Pressure Electric Sprayer |
|---|---|
| Number | 24Y452 |
| Hazardous Use | NOT FOR USE IN EXPLOSIVE ATMOSPHERES |
| Maximum Working Pressure | 4500 psi (310 bar, 31.0 MPa) |
| Maximum Recommended Tip Size | XHD529 |
| Flow Rate @ Spray Pressure | 4.5lpm @ 4000psi |
| Pump Lower | 145cc |
| Input Power | 20A |
Data Sheet
