JETWAVE Apache A-Frame Hose Reels (50-130m)

SKU: JWA060

JETWAVE Apache A-Frame Hose Reels (50-130m)

$616.00 AUD
$616.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Available for pre-order only. Delivery lead time to be confirmed.
stock
Available for pre-order only. Delivery lead time to be confirmed.
stock
Available for pre-order only. Delivery lead time to be confirmed.
stock
Available for pre-order only. Delivery lead time to be confirmed.
Style

Other payment options

View full details
Jetwave Apache A-Frame Hose Reel (50-130m) Range

JETWAVE Apache A-Frame Hose Reels (50-130m)

From $616.00 AUD
From $616.00 AUD
Save $0
Sold out

Features

  • Stable ‘A’ frame design with one-piece welded drum design.
  • Durable high gloss powder coated finish.
  • Switchable swivel / handle.
  • Extra heavy duty 6-point locking pin and adjustable friction brake.
  • Dual heavy duty sealed axle ball bearing design with stainless steel hardware.
  • High-flow stainless steel 5075 psi swivel with Parker Viton O-Rings.
  • 1/2” to 3/8” adaptor included on inlet and outlet.
  • Optional double stacked kit (p/n: 2100437).
  • Optional hose guide kit (p/n: 2100503):
    - Protects hose when being withdrawn at all angles.
    - 4-way enclosed anti-pinch design.
    - Stainless steel guides.
    - Corrosion resistant stainless steel hardware.
  • Optional 12 volt power rewind kit. Includes mounting bracket, ring gear and hardware (p/n: 103166)

    • Jetwave Apache A-Frame Hose Reels (50-130m)

    Overview

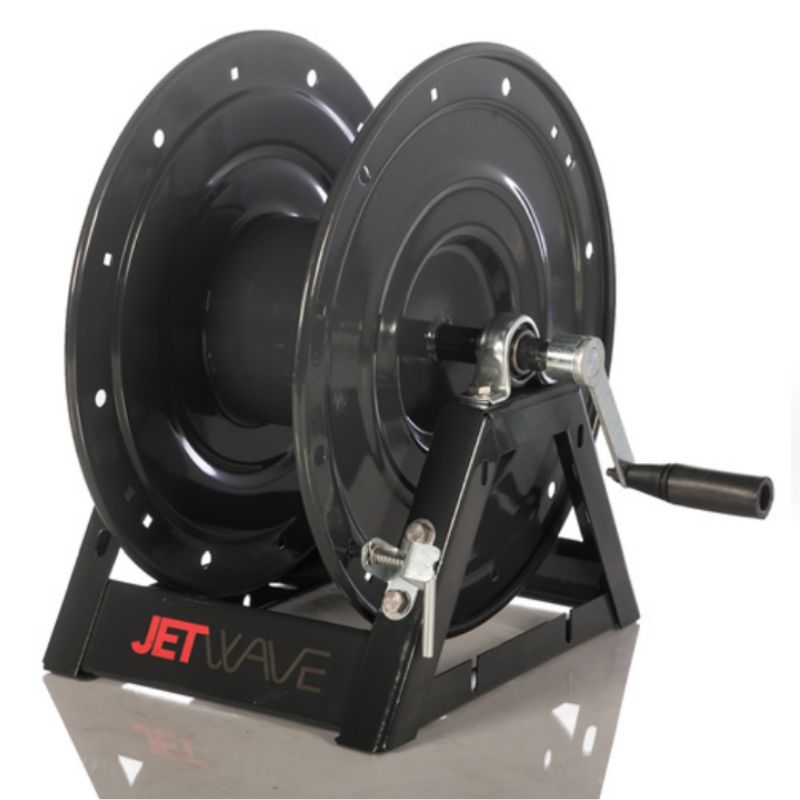

    The Jetwave® heavy duty A-Frame hose reel is a industrial reel designed to hold up to either 50m, 100m or 150m of (3/8”) hose increasing user utility and safety to complete your high pressure washer package, also available in stainless steel 100m capacity.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • Jetwave Apache A-Frames Product Sheet - GO Industrial

    Specifications

    • Maximum Hose Capacity: 50m - 130m x 3/8"
    • Maximum Pressure: 5075 psi / 350 bar
    • Rated Temperature: 100°C
    • Connection: Inlet 1/2" BSP F / Outlet BSP 1/2" F
    • Configuration: A-Frame (various widths)
    Max Hose Capacity m 150 of 3/8
    Working Pressure psi / bar 5075 / 350
    Flow Rate l/pm Up to 80 l/pm
    Max Temp C 150
    Type type Hand Crank
    Inlet (Swivel Side) “ 3/8 F (adapter) and 1/2 F
    Outlet (Inner Hub) type 3/8 F (adapter) and 1/2 F
    Boxed Dimensions mm 510(l) x 460(w) x 410(h)
    Approx Weight kg 19

      Features

    • Stable ‘A’ frame design with one-piece welded drum design.
    • Durable high gloss powder coated finish.
    • Switchable swivel / handle.
    • Extra heavy duty 6-point locking pin and adjustable friction brake.
    • Dual heavy duty sealed axle ball bearing design with stainless steel hardware.
    • High-flow stainless steel 5075 psi swivel with Parker Viton O-Rings.
    • 1/2” to 3/8” adaptor included on inlet and outlet.
    • Optional double stacked kit (p/n: 2100437).
    • Optional hose guide kit (p/n: 2100503):
      - Protects hose when being withdrawn at all angles.
      - 4-way enclosed anti-pinch design.
      - Stainless steel guides.
      - Corrosion resistant stainless steel hardware.
    • Optional 12 volt power rewind kit. Includes mounting bracket, ring gear and hardware (p/n: 103166)
