LineLazer ES 3400 Battery-Powered Airless Line Striper
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Built for the work it does.

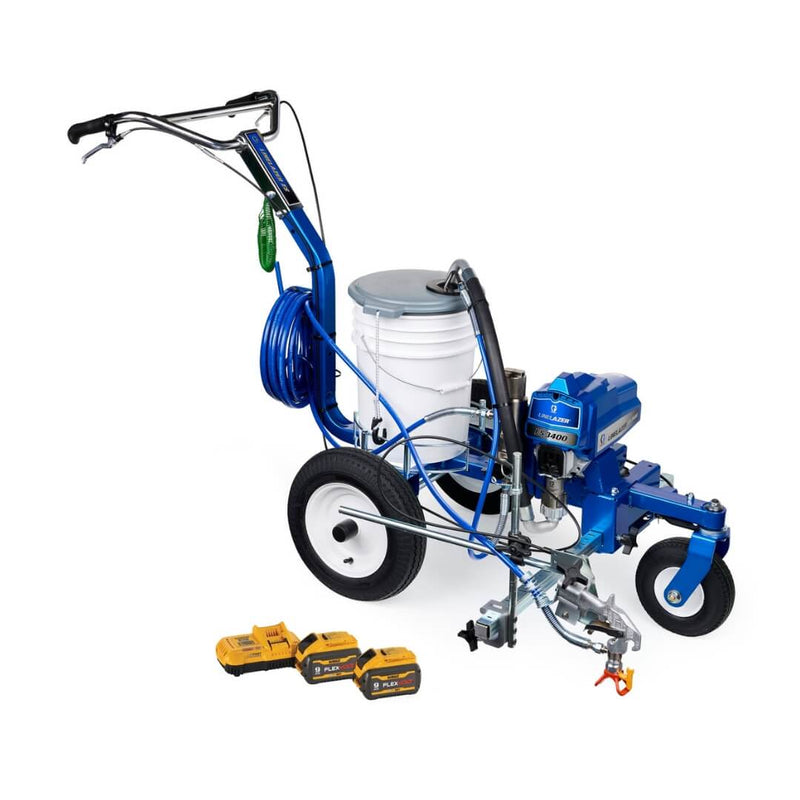

Suitable for parking structures, warehouses, and schools, the Graco LineLazer ES 3400 is a professional, battery-powered airless line striper. It is driven by high-capacity DEWALT FLEXVOLT batteries that quickly recharge in under 60 minutes with a specialized fan-cooled fast charger.
This means zero costly downtime on the job, delivering the continuous stenciling and high-pressure line marking capacity to easily smash out over 200 parking lot stalls on a single charge. With absolutely no engine noise, toxic fumes, or fatiguing vibrations, the Graco LineLazer ES 3400 is a powerful and elite choice for both strict indoor environments and high-production outdoor applications.
AVAILABLE FOR PRE-ORDER NOW
Estimated AUS arrival - September 2026
Features
- Battery Power: Combines gas-powered performance with the clean, quiet convenience of battery power to eliminate noise, fumes, engine vibration, and maintenance.
- SmartControl: Monitors and adjusts performance automatically to deliver bright, consistent lines and perfect results.
- Brushless Motor: Features a maintenance-free brushless motor that delivers reliable, dependable operation with every use.
- Tip Support: Supports a maximum spray tip size of up to 0.027 inches, specifically designed to handle standard traffic paints.
- ProConnect Pump: Allows contractors to swap out the displacement pump on the jobsite in minutes to eliminate costly downtime.
- Easy Out Filter: Utilizes an exclusive inside-out filtering design that reduces tip clogs and ensures easy, low-clog maintenance.
- EasyMark System: A patented gun adjustment system that ensures perfect gun setup every time using an easy-to-use Guide Mark System.
- Maneuverability: Equipped with a front swivel wheel with a tapered locking pin design, allowing you to stripe right up to the curb and handle curves easily.
- Extended Runtime: Powered by DEWALT 9.0 Ah FLEXVOLT batteries to spray up to 38 liters or complete 200+ parking lot stalls on two fully-charged batteries.
- Fast Charging: Includes a DEWALT Fan-Cooled Fast Charger that quickly charges the battery in under 60 minutes to prevent job interruptions.
- Maximum Pressure: Delivers a high-performance maximum working pressure of 3300 psi (22.8 MPa, 228 bar) with a maximum delivery of 2.84 lpm (0.75 gpm).
- Weight: The total unit weighs 64 kg (140 lbs) with the battery included.
- FastFlush Technology: Features a high-flow cleaning system activated via the pressure control knob that cleans the internal components twice as fast using half the fluid.
Included accessories
Specifications
| MOTOR POWER RATING | Not Specified (Powered by 54V/60V Max VDC Battery) [cite: 80] |
|---|---|
| FLUID INLET SIZE | 1 IN | 25.4 MM [cite: 247] |
| FLUID INLET THREAD TYPE | Not Specified (Siphon Hose Inlet) [cite: 305] |
| FRAME CONFIGURATION | Walk-Behind Cart with Wheels & Front Swivel Wheel [cite: 6, 37] |
| INLET PAINT STRAINER | 12 Mesh Stainless Steel Screen [cite: 247] |
| MAXIMUM FLOW RATE | 2.84 L/min | 0.75 G/min [cite: 247] |
| MAXIMUM SOUND PRESSURE LEVEL | 90 dBa [cite: 247] |
| MAXIMUM TIP SIZE GUN 1 | 0.027 IN [cite: 27, 247] |
| MAXIMUM WORKING PRESSURE | 3300 PSI | 228 BAR [cite: 78, 186, 247] |
| POWER SOURCE | Battery (DEWALT FLEXVOLT 54V/60V VDC) [cite: 80] |
| PRESSURE CONTROL TYPE | SmartControl (Adjustable) [cite: 24, 305] |
| MODEL | LineLazer ES 3400 [cite: 2, 62] |
| WEIGHT | 64 KG | 140 LB (With Battery) [cite: 247] |
| SERIES | ES 3400 [cite: 2] |
| RECOMMENDED ANNUAL USAGE | Not Specified |
| TYPE | Airless Line Striper [cite: 3, 62] |
| COMPATIBLE TIP SIZE | Up to 0.027 IN (e.g., LL5217, LL5317, LL5419) [cite: 27, 247, 695] |
| PLUG TYPE | N/A (Battery Operated; Charger requires 120V or 230V AC) [cite: 79] |
| MOTOR TYPE | Maintenance-Free Brushless [cite: 25] |
| PUMP ROD TYPE | Stainless Steel (Wetted Material) [cite: 255] |
| MINIMUM GENERATOR POWER | N/A (Battery Operated) [cite: 6] |
| NUMBER OF GUNS | 1 [cite: 247] |
Warranty
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Field videos & walkthroughs.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
