Enquire For Price
- LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- DualComfort Handlebar System
- Easy Handlebar Adjustment
- Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
- High-Efficiency Hydraulic Motor
- Uninterrupted Performance
- No-Stall design
- High-Capacity Cooling System
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
- No special hydraulic fluid needed
- QuikSelect Gun Selector
- Simple Gun Control
- Independently control of two guns with one lever — solid/skip
- Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
| COMPATIBLE SURFACES | Pavement, Turf |
|---|---|
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX200 |
| FUEL TANK CAPACITY (GAL) | 0.95 |
| FUEL TANK CAPACITY (L) | 3.6 |
| GUN ACTIVATION | Manual |
| INCLUDES | 手动喷枪, 手動ガン, Manual Gun, Pistola manual, 수동 건 |
| MAXIMUM FLOW RATE (GPM) | 2.15 |
| MAXIMUM FLOW RATE (L/MIN) | 8.14 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 86.5 |
| MAXIMUM TIP SIZE (CM) | 0.1194 |
| MAXIMUM TIP SIZE (IN) | 0.047 |
| MAXIMUM TIP SIZE (MM) | 1.1938 |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MODEL | LineLazer V |
| NUMBER OF COLORS | One Color |
| NUMBER OF GUNS | 1 |
| NUMBER OF PUMPS | 1 |
| OVERALL HEIGHT (CM) | 113.03 |
| OVERALL HEIGHT (IN) | 44.5 |
| OVERALL HEIGHT (MM) | 1130.3000 |
| OVERALL LENGTH (CM) | 174.63 |
| OVERALL LENGTH (IN) | 68.75 |
| OVERALL LENGTH (MM) | 1746.25 |
| OVERALL WIDTH (CM) | 87 |
| OVERALL WIDTH (IN) | 34.25 |
| OVERALL WIDTH (MM) | 869.9500 |
| POWER RATING (HP) | 6.5 |
| POWER RATING (KW) | 4.85 |
| PUMP TYPE | Endurance |
| SERIES | 200HS |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 139 |
| WEIGHT (LB) | 306 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas Hydraulic |
| PRODUCT SERIES | HP Reflective |

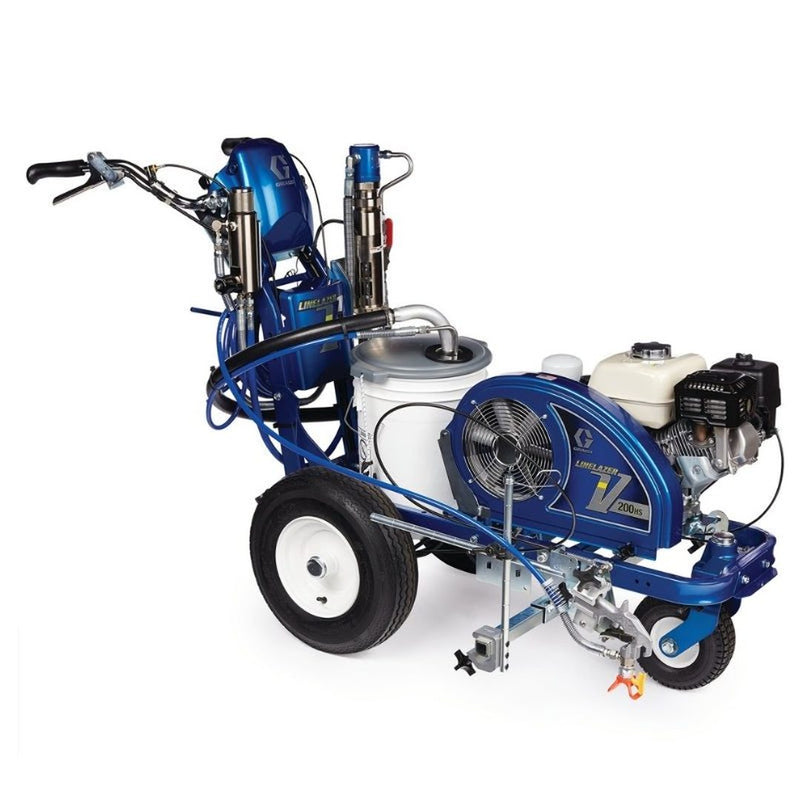

Graco LineLazer V 200HS Standard Series Gas Hydraulic Airless Line Striper, 1 Manual Gun 17H459
SKU: 17H459Graco LineLazer V 200HS Standard Series Gas Hydraulic Airless Line Striper, 1 Manual Gun 17H459
Regular price
$23,540.00 AUD
Sale price
$23,540.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Inclusive of GST.
Shipping calculated at checkout.
Other payment options
Couldn't load pickup availability
The Basics
The LineLazer V 200HS Standard Series is a true workhorse designed for high performance striping on demanding jobs like large parking lots, airports, and city jobs that require precise lines.
The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-color, single or dual gun striping solution.
- LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- DualComfort Handlebar System
- Easy Handlebar Adjustment
- Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
- High-Efficiency Hydraulic Motor
- Uninterrupted Performance
- No-Stall design
- High-Capacity Cooling System
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
- No special hydraulic fluid needed
- QuikSelect Gun Selector
- Simple Gun Control
- Independently control of two guns with one lever — solid/skip
- Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
| COMPATIBLE SURFACES | Pavement, Turf |
|---|---|
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX200 |
| FUEL TANK CAPACITY (GAL) | 0.95 |
| FUEL TANK CAPACITY (L) | 3.6 |
| GUN ACTIVATION | Manual |
| INCLUDES | 手动喷枪, 手動ガン, Manual Gun, Pistola manual, 수동 건 |
| MAXIMUM FLOW RATE (GPM) | 2.15 |
| MAXIMUM FLOW RATE (L/MIN) | 8.14 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 86.5 |
| MAXIMUM TIP SIZE (CM) | 0.1194 |
| MAXIMUM TIP SIZE (IN) | 0.047 |
| MAXIMUM TIP SIZE (MM) | 1.1938 |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MODEL | LineLazer V |
| NUMBER OF COLORS | One Color |
| NUMBER OF GUNS | 1 |
| NUMBER OF PUMPS | 1 |
| OVERALL HEIGHT (CM) | 113.03 |
| OVERALL HEIGHT (IN) | 44.5 |
| OVERALL HEIGHT (MM) | 1130.3000 |
| OVERALL LENGTH (CM) | 174.63 |
| OVERALL LENGTH (IN) | 68.75 |
| OVERALL LENGTH (MM) | 1746.25 |
| OVERALL WIDTH (CM) | 87 |
| OVERALL WIDTH (IN) | 34.25 |
| OVERALL WIDTH (MM) | 869.9500 |
| POWER RATING (HP) | 6.5 |
| POWER RATING (KW) | 4.85 |
| PUMP TYPE | Endurance |
| SERIES | 200HS |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 139 |
| WEIGHT (LB) | 306 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas Hydraulic |
| PRODUCT SERIES | HP Reflective |
