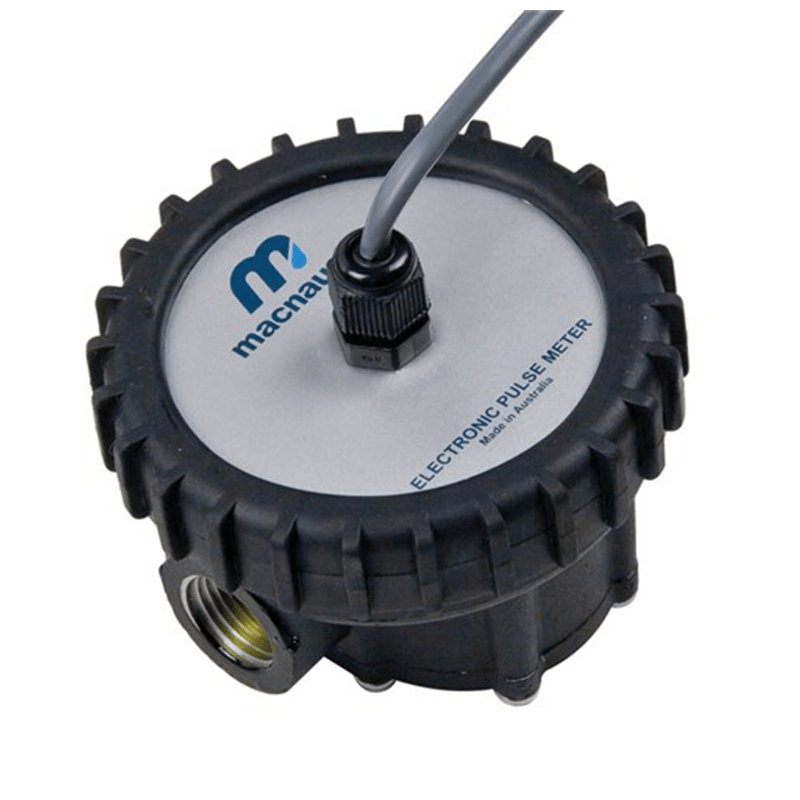

  • Macnaught 3/4" Pulse Oil Meter IM019P-01
1 1

MACNAUGHT Pulse Oil Meter 3/4"

SKU: IM019P-01

MACNAUGHT Pulse Oil Meter 3/4"

$780.00 AUD
$780.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

Macnaught 3/4" Pulse Oil Meter

Overview

In-line oval gear meter with pulse output only, designed to measure lubricating oils. Flow rate up to 80L/min.

Accuracy is around +/- 0.5% of reading with maximum pressure to 10,350 kPa (1,500 psi). Fly Lead is included to allow connection to other devices. Fitted with 3/4" BSP(F) ports.

    • Macnaught 1-2 Pulse Oil Meter IM012P-01 Instruction Manual

    Specifications

  • IM019 meter with pulse output only
  • Suitable for oils up to SAE 140, automatic trans fluid, engine oil, gear oil, hydraulic oil coolant, diesel, kerosene
  • Includes 1m y lead either reed switch and/or half effect sensor
  • Flow range up to 3 – 80LPM
  • Accurate reading to +/- 0.5% with maximum pressure to 10,350kPa (1,500psi)
  • 3/4” BSP(F) inlet/outlet ports
