MACNAUGHT Air Operated Diaphragm Pump 2" - GO Industrial - DDP50

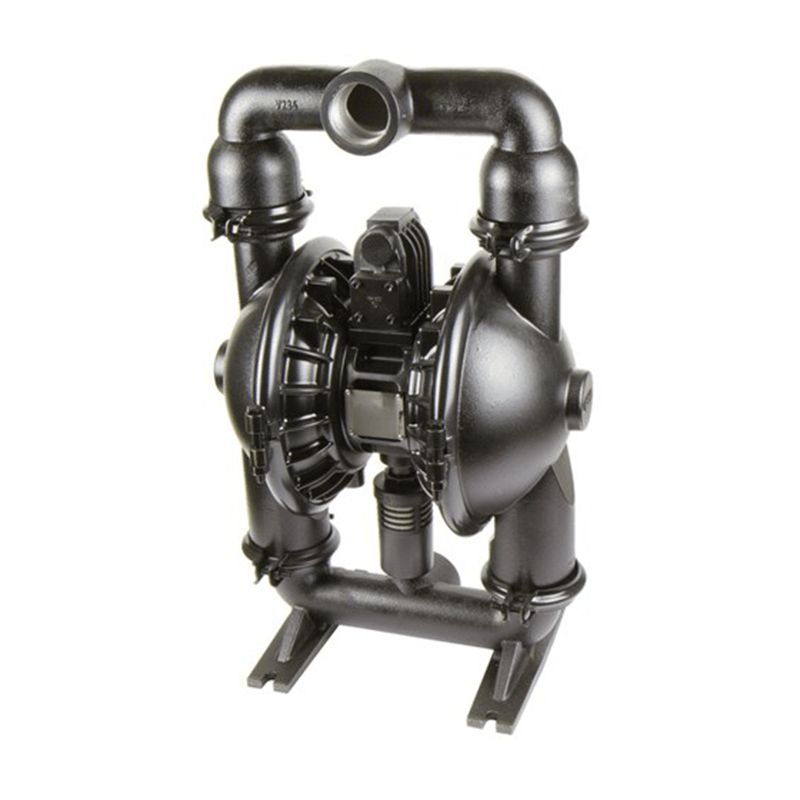

MACNAUGHT Air Operated Diaphragm Pump 2"

SKU DDP50
Afterpay Zip PayPal LeaseGO
$4,111.82 ex GST · $4,523.00 inc GST
Prices shown ex GST.
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Get a shipping estimate

The same live rates you'll see at checkout, for this item.

MACNAUGHT Air Operated Diaphragm Pump 2" · Qty 1

Estimate inc GST for this item plus anything already in your cart. Your final rate is confirmed at checkout.

Need it palletised or delivered to site? Chat with us.

Calculate your LeaseGO repayments

Spread the cost over 24, 36 or 48 months with simple monthly payments.

Business customers only. LeaseGO finance is available to businesses with an active ABN. It isn't available for personal or household purchases.

$
Pick a term that suits your cash flow
24 months
Per month-
Per week-
Per day-
36 months
Per month-
Per week-
Per day-
48 months
Per month-
Per week-
Per day-

Terms and conditions apply, subject to suitability assessment. Prices quoted are indicative only and payable monthly in advance over the chosen term. $99 Establishment Fee payable upon commencement ($79 under $1,500). Visit LeaseGo.com.au to learn more.

Scan or click here to apply now with LeaseGo

Apply in minutes with your mobile, licence and ABN, then give your approval number to the GO team.

Apply now
LeaseGo application QR code

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

The DDP50 offers an economical and reliable pump for transfer of light to medium viscosity fluids. High flow rates can be achieved easily, especially where low back-pressure applications exist.

The ability to dry-run allows easy priming while operating without any damage to the pump. The cast aluminium body allows this pump to be used with a range of compatible chemicals as well as new or used oils, engine coolants (RTU), diesel or oily water applications.

It is fully repairable and spare parts are readily available. Not suitable for flammable liquids.

Features

  • Flow Rate: Up to 598 litres per minute, measured with water at the pump outlet.

  • Band Clamps: Fitted with band clamps on the inlet and outlet manifolds for easy dismantling to repair or clear blockages.

  • Cast Aluminium Body: Cast aluminium body for a wide range of chemical compatibility and broader applications.

  • Speed Control: Air-operated pumps can be speed controlled for more control over output.

  • Fast Transfer: Fast fluid transfer for low to medium viscosity fluids, an inexpensive way to move large volumes.

  • Self-Priming: Easy self-priming with no damage to the pump while running with little or no fluid flow for short periods.

Included accessories
  • MACNAUGHT Air Operated Diaphragm Pump 2"
  • Air exhaust muffler 1" NPT(M)
  • Instruction manual
Specifications
Max Air Pressure690kPa (100psi)
Inlet / Outlet Ports2" NPT(F)
Air Inlet Size/Type1/2" NPT(F)
Max Flow Rate598 L/min (viscosity dependant)
Suction Lift5.2m (dry) / 9.8m (wet)
Max Solids Handling6.4mm (0.25")
Fluid Temperature Range-12degC to 82degC
Max Noise Level96 dB(A)
Fluid CompatibilityOils (new and used), engine coolants RTU (new and used), oily water, diesel
Wetted ComponentsCast aluminium (body), Buna N (valve seats, diaphragms, check valves)
