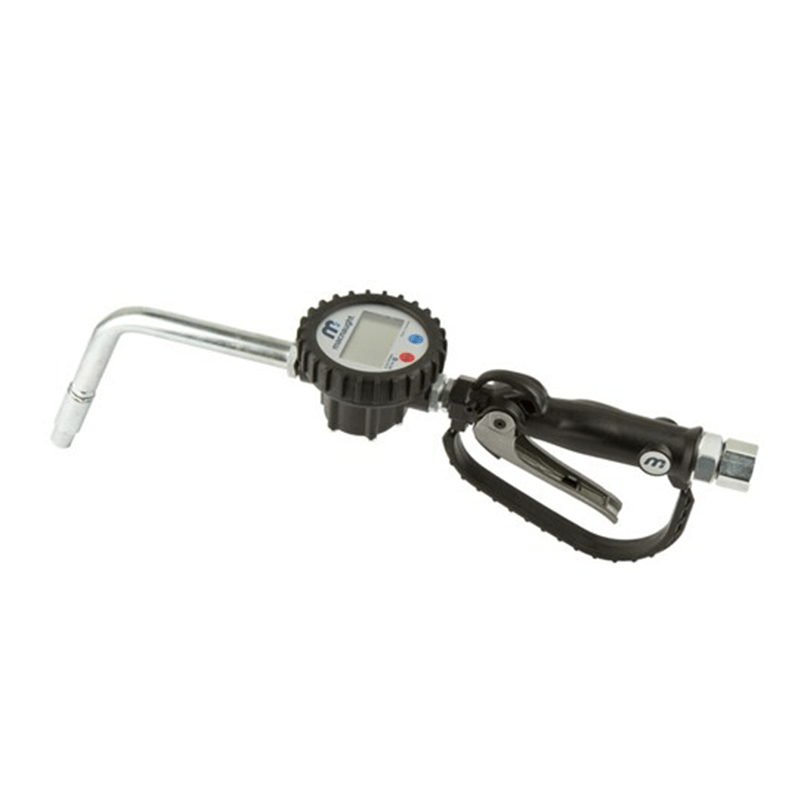

MACNAUGHT Electronic Rigid Extension Oil Control Gun
SKU HG20R-012E-01
$563.64
ex GST · $620.00 inc GST
Prices shown ex GST.
Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
The HG20 oil gun is fitted with a digital electronic meter for all types of workshop or dealership applications. It features a rigid extension with a non-drip automatic nozzle and locking trigger.
Features
- Electronic Metering: Resettable batch totals and a non-reset accumulative total, so both the job and the stock figure are covered.
- Rigid Extension: A fixed extension with a non-drip automatic nozzle, suited to sump and gearbox fills where you want the spout to hold its line.
- Locking Trigger: Holds flow open through a long fill and guards against accidental dispensing.
- Half A Percent Accuracy: Meters to +/- 0.5 percent of reading.
- Swivel Inlet: A 1/2 in swivel keeps the hose from twisting as the gun moves around the bay.
- SAE 140 Rated: Handles oils up to SAE 140 viscosity, so gear lube is within range.
Included accessories
Specifications
| METER | Electronic meter on the HG20 oil gun for workshop and dealership use |
|---|---|
| DISPLAY | Resettable batch total and non-reset accumulative total |
| ACCURACY | Up to +/- 0.5% of reading |
| MAXIMUM WORKING PRESSURE | 69 BAR | 1000 PSI |
| FLOW RATE | Up to 30 L/MIN |
| INLET | 1/2 IN BSP SWIVEL |
| EXTENSION | Rigid, with non-drip automatic nozzle and locking trigger |
| OIL RATING | Suitable for oils up to SAE 140 |
